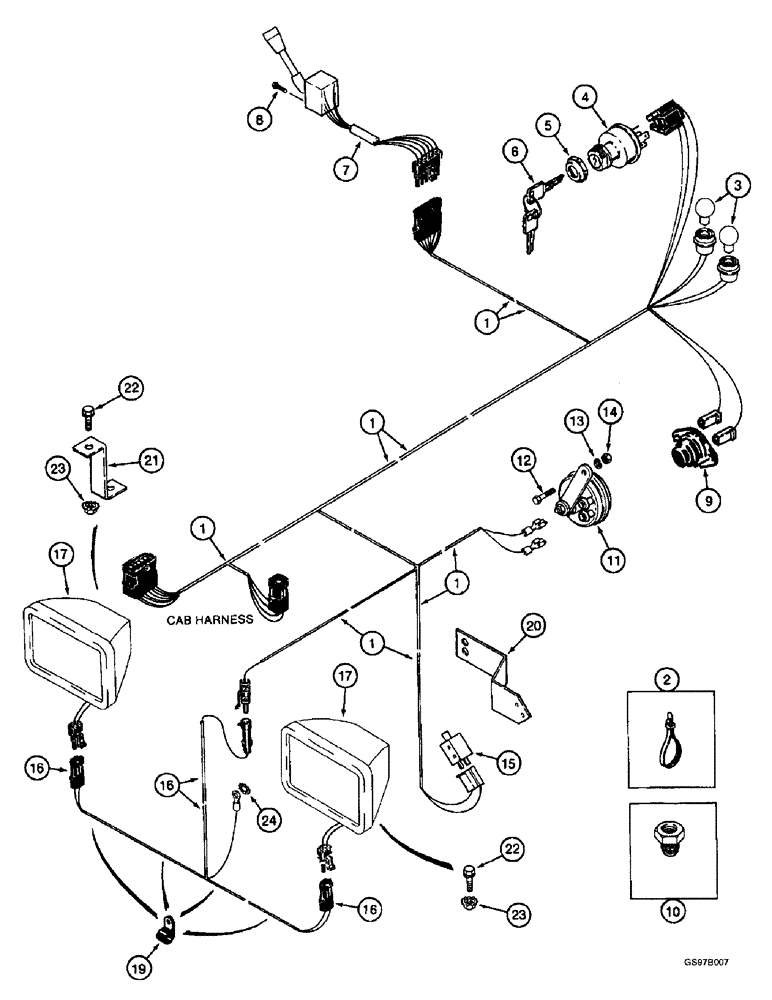

Запчасти Case IH 2166 (4-08) - STEERING CONSOLE AND PLATFORM HARNESSES (06) - ELECTRICAL

1

184847A2

HARNESS

- steering console

1шт.

2

702093C1

CABLE TIE

STRAP - tie

2шт.

3

26069R1

BULB

- lamp, No. 192

2шт.

4

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 5 & 6

1шт.

5

A77314

NUT

- hex, special

1шт.

6

A77313

SET OF 2 KEYS

KEY - set of two

1шт.

7

1500137C2

FLASHER SWITCH

SWITCH, FLASHER, Horn

1шт.

8

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- hex, full threads, 4 - 0.7 x 8 mm

2шт.

9

D67872

SWITCH

- push button, ether inject

1шт.

10

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch female PT, push button switch

1шт.

11

3057542R91

HORN

- warning sound

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

1шт.

13

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

15

127286A1

SWITCH

- emergency brake

1шт.

16

184848A2

WIRE HARNESS

HARNESS - platform

1шт.

17

185117A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - aftercut, Includes: Ref. 18

2шт.

See Figure 4-70 for harness extension used with aftercut lamps on models with wide axles.

1шт.

18

139120A1

BULB

- lamp, Type C-6, No. 894, not shown

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Platform harness 5/8", Insul, 3/8" Bolt

4шт.

20

180517A1

SUPPORT

BRACKET - mounting, emergency brake switch

1шт.

21

183629A1

SUPPORT

BRACKET - left-hand aftercut lamp

1шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

24

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.
