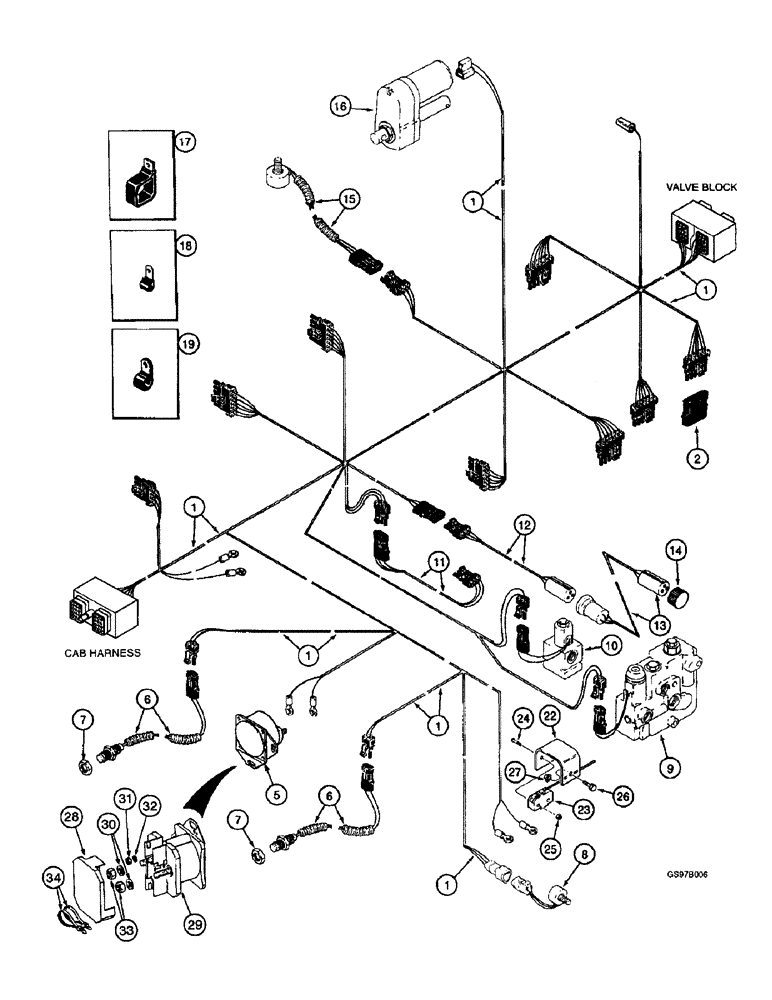

Запчасти Case IH 2166 (4-02) - FRONT HARNESS (06) - ELECTRICAL

1

184530A1

HARNESS

ASSEMBLY - front, cab harness to valve block, Includes: Ref. 2 - 4

1шт.

2

127290A1

DIODE

MODULE - diode

1шт.

3

187308A1

CAP

- splice connector, not shown

6шт.

4

187309A1

BAR

- buss, 6 terminal, not shown, cut as needed

6шт.

5

142341A1

PACKAGE

KIT - magnetic relay solenoid and cover, feeder reverser, See Figure 4-36 for feeder reverser harness, no longer available, order Ref. 28 - 34 below

1шт.

6

245193C2

SENSOR

- rotor speed and feeder speed, See Figure 9A-37 for feeder speed sensor support and shield

2шт.

7

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF, feeder speed sensor

1шт.

8

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Feeder Position, See Figure 4-38 for Mounting 1000 Ohm, 8V

1шт.

9

114856A1

VALVE

ASSEMBLY - reel drive, parts list Figure 8-46

1шт.

10

126008A2

VALVE

ASSEMBLY - accumulator, parts list Figure 8-60

1шт.

11

142570A1

WIRE HARNESS

HARNESS - header lighting, hose

1шт.

12

142553A1

WIRE HARNESS

HARNESS - automatic header height control, hose

1шт.

13

1331312C1

WIRE HARNESS

HARNESS - extension, header height control harness, if used

1шт.

14

225290C1

DUST CAP

COVER - plug, header height control harness

1шт.

15

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Feeder Position, See Figure 4-38 for Mounting 1000 Ohm, 8V

1шт.

16

143239A2

MOTOR, ELECTRIC

MOTOR - concave control, See Figure 9B-30 for mounting

1шт.

16

143239A2R

REMAN-ELECTRIC MOTOR

2166

1шт.

16

143239A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

17

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

18

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

5шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Clamp Mounting, Not Shown Hex Flg, M8 x 25, 8.8

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Clamp mounting, not shown

1шт.

22

142533A1

SUPPORT

- mounting, feeder limit switch, used on models with field tracker and/or accumulator

1шт.

Re it no. 22 - 142533a1, the switch for this is 298817a1. ph-11-10-98 cam

1шт.

23

144656A1

SENSOR

SWITCH - feeder limit, used on models with field tracker and/or accumulator

1шт.

24

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

25

230-42406

LOCK NUT,#6-32, GA

NUT - hex, self-locking, No. 6 NC

2шт.

26

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 28 - 34

1шт.

28

178148A1

COVER

- solenoid switch

1шт.

29

183038A1

SOLENOID

SWITCH - solenoid with barrier, order kit 178149A1

1шт.

30

225-14210

NUT,#10-32

1шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
