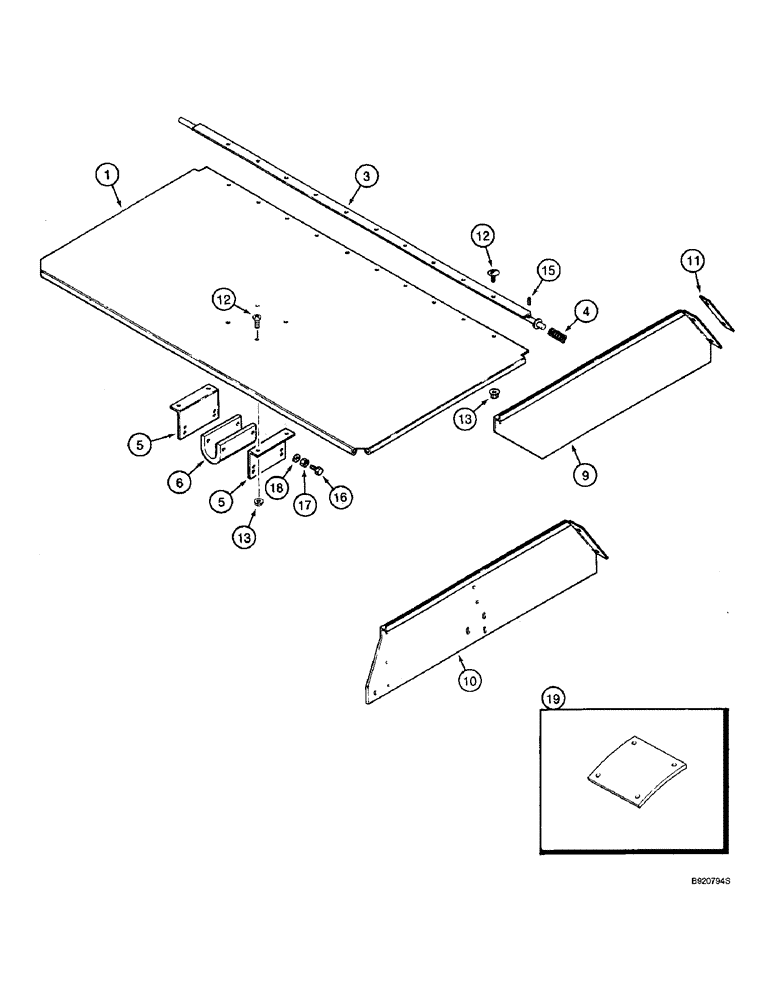

Запчасти Case IH 2166 (5-28) - STEERING AXLE SHIELD (04) - STEERING

1

1325596C2

SHIELD

- steering axle

1шт.

3

195450C2

SUPPORT ASSY.

HINGE - axle shield

1шт.

4

203942C1

SPRING

- hinge

1шт.

5

183093C1

BRACKET

ANGLE - shield support

2шт.

6

183094C1

CUSHION

SUPPORT - axle shield

1шт.

7

1325374C3

COVER

PLATE - hood extension, left-hand, models with straw spreader, not shown

1шт.

8

123294A1

LARGE PLATE

PLATE - hood extension, left-hand, models with straw and chaff spreader, not shown

1шт.

9

1325375C3

COVER

PLATE - hood extension, right-hand, models with straw spreader

1шт.

10

123293A1

LARGE PLATE

PLATE - hood extension, right-hand, models with straw and chaff spreader

1шт.

11

1325376C1

PLATE

BRACKET - hood extension

2шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

15

38-1814

LOCK PIN,1/8" x 7/8", Slotted

Pin, 1/8" x 7/8", Slotted

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

17

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

19

1345126C1

CUSHION

- axle shield

1шт.

20

1968976C1

SEALING STRIP

TRIM - edge, not shown

2шт.
