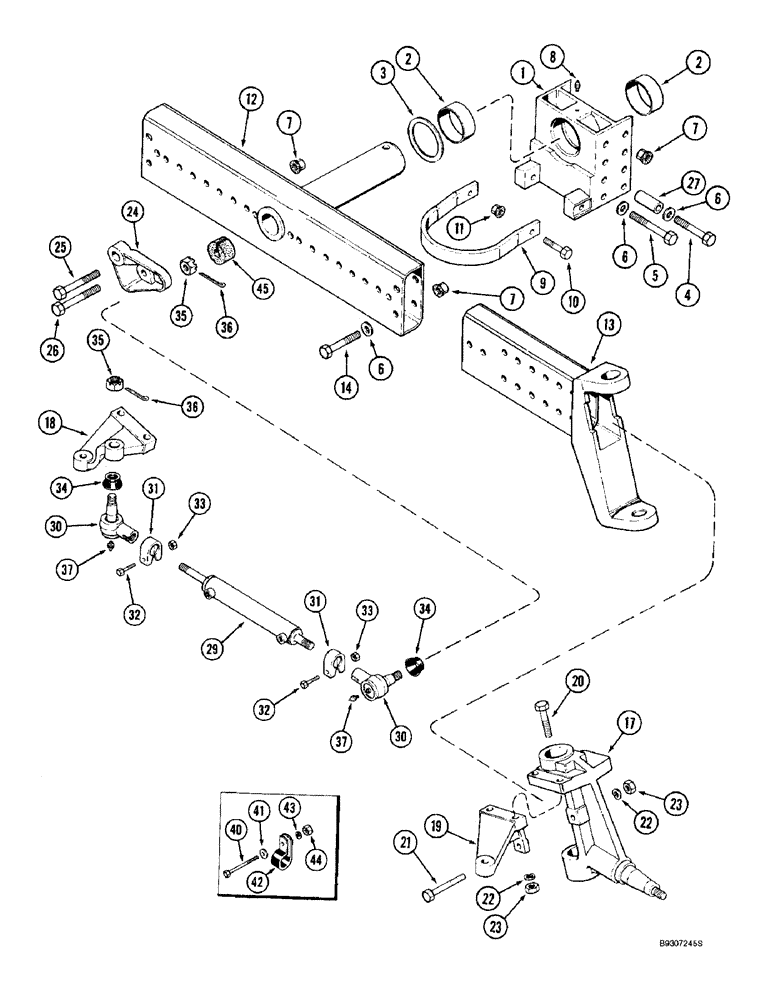

Запчасти Case IH 2166 (5-18) - STEERING AXLE, ADJUSTABLE, WITHOUT POWER GUIDE AXLE, RICE COMBINE (04) - STEERING

1

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot support

2шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

1шт.

4

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

6шт.

5

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

6

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

11шт.

7

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

16шт.

8

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

9

1302625C1

CHANNEL

STRAP - tow

1шт.

10

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

11

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

2шт.

12

242643A2

AXLE

- adjustable, 92 - 120 inch, grain (Replaces axle 186317C3)

1шт.

13

186045C3

AXLE

EXTENSION - axle, 92 - 120 inch

2шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

16

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch, not shown

2шт.

17

REF

INSTRUCTION

KNUCKLE - steering, See Figure 5-26

2шт.

18

186641C1

LEVER

ARM - steering

1шт.

19

186639C1

LEVER

ARM - steering

1шт.

20

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

21

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

23

429-1010

NUT,5/8"-11, G8

6шт.

24

133319A1

SUPPORT

ANCHOR - steering cylinder

1шт.

25

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

BOLT - hex, 3/4 NC x 5-3/4 inch

1шт.

26

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

27

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

8шт.

29

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 9 inch (229 mm) stroke, parts list Figure 5-46

1шт.

30

181335C91

BALL JOINT

END ASSEMBLY - steering cylinder, Includes: Ref. 31 - 35

2шт.

31

446308C91

CLAMP

ASSEMBLY - steering cylinder end, Includes: Ref. 32 & 33

1шт.

32

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

33

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

34

110373R1

DUST CAP

SEAL - end, cylinder

1шт.

35

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

2шт.

36

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

40

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

41

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

42

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

45

167955C2

SEAL

GROMMET - steering cylinder hoses

1шт.
