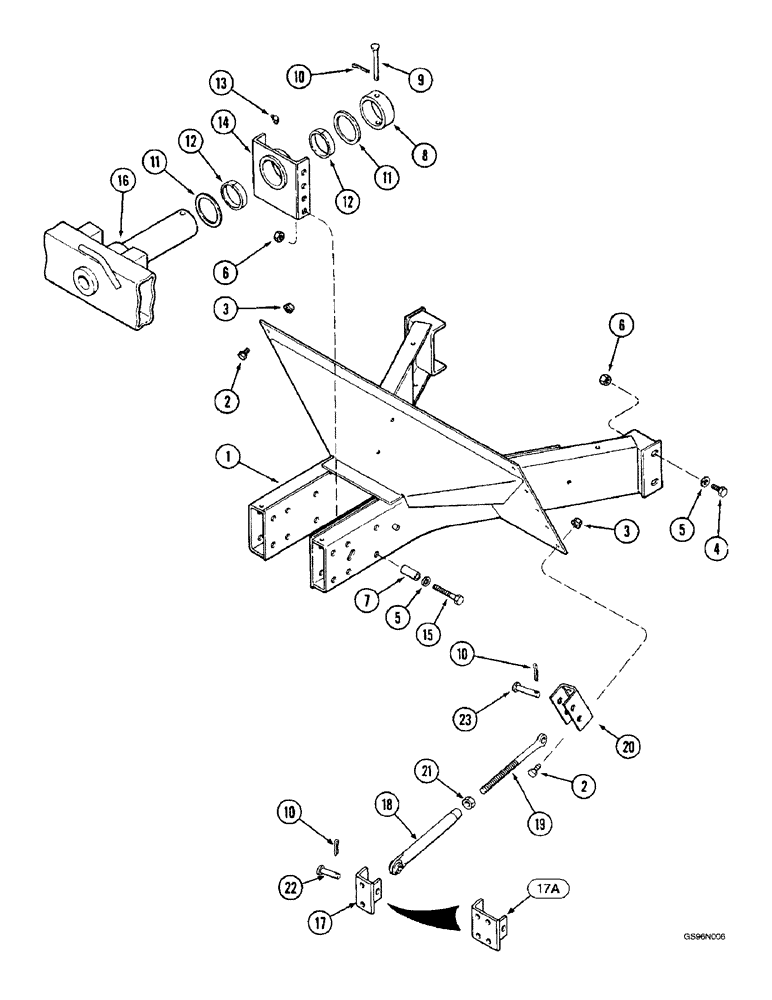

Запчасти Case IH 2166 (5-10) - STEERING AXLE SUPPORT, ADJUSTABLE AXLES (04) - STEERING

1

1308816C2

SUPPORT

- steering axle

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

10шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

8шт.

7

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

12шт.

8

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

9

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

PIN - headed, 3/4 x 5-1/2 inch, grade 2

1шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

2шт.

12

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - axle pivot

2шт.

13

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

2шт.

13a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Not shown (Replaces 45 degree fitting 219-90) 1/4"-28 x .56" lg, Self-Tap

2шт.

14

182792C95

SUPPORT ASSY.

SUPPORT - pivot, front

1шт.

15

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

16

REF

INSTRUCTION

AXLE - steering, see page 5-13

1шт.

17

183494C1

SUPPORT ASSY.

BRACKET - adjusting rod, rear, if used

2шт.

17a

254425A1

SUPPORT

BRACKET - axle, rear, if used

2шт.

18

181444C1

TIE-ROD,1" - 8

BODY - adjusting rod

2шт.

19

181442C3

EYEBOLT,1" - 8 x 381mm

ROD - adjusting

2шт.

20

1541603C1

SUPPORT

BRACKET - adjusting rod, front

2шт.

21

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

22

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

PIN - headed, 7/8 x 5-1/2 inch, grade 2

2шт.

23

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

PIN - headed, 7/8 x 3-1/2 inch, grade 2 (Replaces 3 inch pin 39-11448)

2шт.
