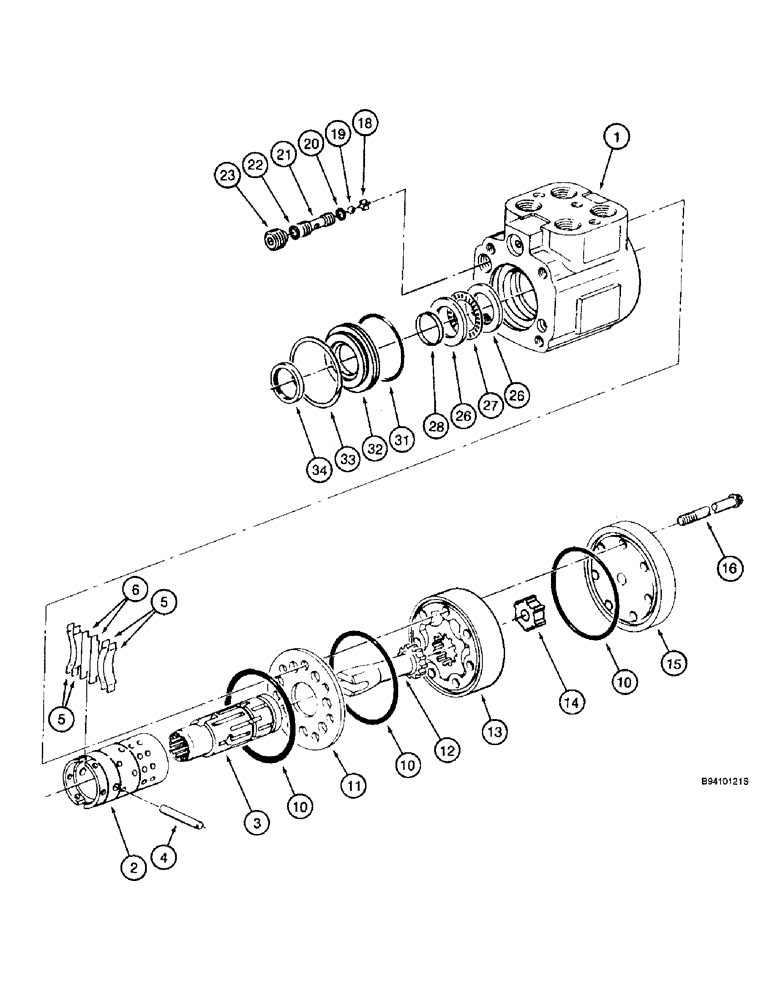

Запчасти Case IH 2166 (5-08) - STEERING HAND PUMP (04) - STEERING
№
Артикул
Название
Примечание
Количество
123273A1
O-RING KIT
ASSEMBLY - steering, hand, Includes: Ref. 1 - 34
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY - pump, order pump assembly 123273A1, Includes: valves
1шт.
NSS
NOT SOLD SEPARAT
VALVE - check, manual steering, not shown, order pump assembly 123273A1
1шт.
NSS
NOT SOLD SEPARAT
VALVE - check, inlet, not shown, order pump assembly 123273A1
1шт.
2
NSS
NOT SOLD SEPARAT
SLEEVE - control, order pump assembly 123273A1
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL - control, order pump assembly 123273A1
1шт.
4
L30888
PIN
- roll
1шт.
1986600C1
KIT
- centering spring, Includes: Ref. 5 & 6
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING - centering, order kit 1986600C1
1шт.
6
NSS
NOT SOLD SEPARAT
SPACER - spring, order kit 1986600C1
2шт.
10
238-6040
O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro
3шт.
11
S113037
PLATE
- spacer
1шт.
12
L30878
DRIVE SHAFT
SHAFT - drive, gerotor
1шт.
13
1343638C1
ROTOR
GEROTOR - set
1шт.
14
143723A1
SPACER
- gerotor
1шт.
15
136493A1
COVER
CAP - end (Replaces cap D82809)
1шт.
16
135866A1
SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8
BOLT - 12 point flange, special, 5/16 NF x 1-3/4 inch, grade 8
7шт.
18
L35368
RETAINER
- check ball
1шт.
19
211-1010
BALL,5/16" OD
- chrome alloy steel, 5/16 inch, grade 24
1шт.
20
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
21
D82806
VALVE SEAT
SEAT - ball
1шт.
22
238-5012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro
-012, 70 Duro, .364" ID x .070" Thk
1шт.
23
D82805
SET SCREW
SCREW - set
1шт.
26
D82804
RACE
- thrust, bearing
2шт.
27
G13609
THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W
BEARING, THRUST - Needle
1шт.
28
121179A1
SEAL
- teflon
1шт.
31
238-5225
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
1шт.
32
N13312
CYLINDER END CAP
BUSHING - seal gland
1шт.
33
S110169
WASHER
RING - retaining
1шт.
34
697494R91
OIL SEAL
SEAL - 1 inch ID, oil, 1 inch ID
1шт.
1343658C3
SEAL KIT
KIT - seal, low torque
1шт.
Выбрано товаров: 31
