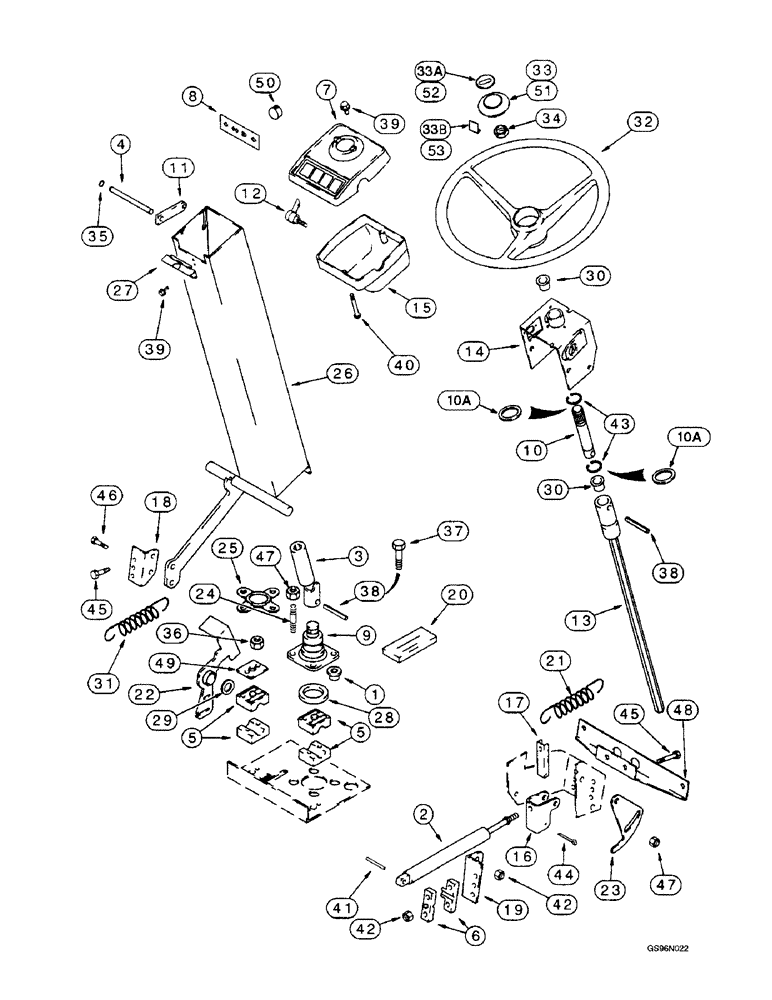

Запчасти Case IH 2166 (5-02) - STEERING SUPPORT AND WHEEL, PRIOR TO COMBINE P.I.N. JJC0180000 (04) - STEERING

1

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

- vibration damper, steering pump

4шт.

2

119682A1

CYLINDER ASSY.

CYLINDER - gas, locking

1шт.

3

119760A1

FLEXIBLE JOINT

JOINT - swivel, steering column, lower

1шт.

4

119830A1

ROD

- pivot, 9.5 x 111 mm

1шт.

5

120326A2

BALL BEARING,24 mm

BLOCK - bearing, for 9.5 mm rod, at console base

4шт.

6

120327A1

BLOCK

- bearing, for 4.1 mm rod

8шт.

7

120329A3

COVER

- console, steering

1шт.

8

120332A1

DECAL

- directional arrows, steering console cover

1шт.

9

120338A1

POST

COLUMN - steering pump

1шт.

10

124054A3

SHAFT

- stub, steering wheel mounting, also order two 495-81051 washers

1шт.

10a

495-81051

WASHER,29/32" x 1 1/4" x .060"

- flat, 29/32 x 1-1/4 x 1/16 inch, used with shaft 124054A3

2шт.

11

127040A2

PLATE

- tilt linkage at pivot rod

1шт.

12

129255A1

HANDLE

- adjustable, 8 mm, tilt linkage

1шт.

13

130952A2

FLEXIBLE JOINT

JOINT - steering, upper, at stub shaft

1шт.

14

130953A3

SUPPORT

BRACKET - support, stub shaft

1шт.

15

130956A3

COVER

CONSOLE - steering

1шт.

16

224761A1

CLEVIS

- gas cylinder, shaft end (Replaces clevis 130957A1)

1шт.

17

130958A1

GUIDE

CHANNEL - lower spring release

1шт.

18

238697A1

CAP

- steering wheel, advance farming system

1шт.

19

1329896C1

CLASP

CLIP - retaining

3шт.

20

130961A1

FOAM INSULATION

- foam

1шт.

21

130962A2

SPRING

- 31.75 OD x 152.40 mm free length, lilt linkage, lower

1шт.

22

136798A1

PEDAL

- tilt release, steering column

1шт.

23

136800A1

SUPPORT

BRACKET - pump mounting

1шт.

24

136802A1

STUD

- 10 - 1.5 x 48 mm, pump mounting

1шт.

25

136805A1

RETAINER

- shaft

1шт.

26

192374A4

TUBE

COLUMN - steering, Includes: decal, See Figure 9H-37 for decal

1шт.

27

136919A1

COVER

PANEL - filler, console

1шт.

28

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

- dust

1шт.

29

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

- spacer (Replaces bushing 185062R1)

1шт.

30

373445R1

BUSHING,22.25mm ID x 22.99mm L

- nylon

2шт.

31

182652A1

SPRING

- 27.9 OD x 122 mm free length, tilt linkage, upper

1шт.

32

1321683C1

WHEEL (STEERING)

WHEEL - steering

1шт.

33

1329895C2

CAP ASSY.

CAP ASSEMBLY - steering wheel, with globe and eagle insert, if used, Includes: Ref. 33A & 33B

1шт.

33a

A180055

CAP ASSY.

INSERT - Case Globe and Eagle, if used

1шт.

33b

1329896C1

CLASP

CLIP - retaining

3шт.

34

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, steering wheel retaining

1шт.

35

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

2шт.

36

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10.9

4шт.

37

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

38

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

2шт.

39

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

- self-tapping, pan Phillips, No. 10-16 x 3/4 inch

2шт.

40

540-714

SCREW,Pan HD, M3 x 45mm, Cl 4.8

- machine, pan Phillips, 3 - 0.5 x 45 mm, class 4.8

2шт.

41

38-12048

LOCK PIN,5/16" x 3", Slotted

Pin, 5/16" x 3", Slotted

2шт.

42

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

10шт.

43

100-1187

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

44

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

45

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

46

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

47

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

48

120143A4

SUPPORT

BRACKET - front cover

1шт.

49

185268A1

PLATE

- retaining, bearing block

2шт.

50

353-411

PLUG,Dome, 1.000" hole, Nylon

Used on models without cold start Dome, 1.000" hole, Nylon

1шт.

51

238697A1

CAP

ASSEMBLY - steering wheel, with AFS (R) insert, if used, Includes: Ref. 52 & 53

1шт.

52

238696A1

EMBLEM

INSERT - AFS, if used

1шт.

53

1329896C1

CLASP

CLIP - retaining, steering cap

3шт.
