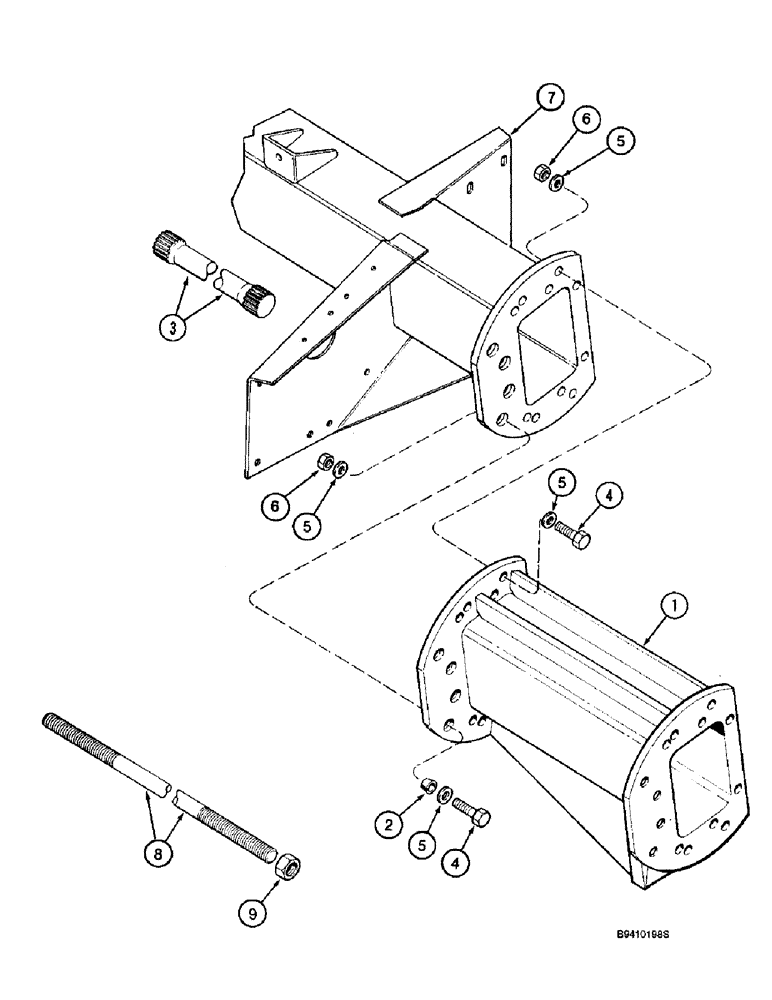

Запчасти Case IH 2166 (6-60) - AXLE EXTENSION, DUAL AND FLOTATION WHEELS, 144 INCH FRONT AXLE WIDTH (03) - POWER TRAIN

1

184364C2

EXTENSION

- axle, left-hand, 18 inch, prior to combine P.I.N. JJC0182025

1шт.

1

184365C2

EXTENSION

- axle, right-hand, 18 inch, prior to combine P.I.N. JJC0182025

1шт.

1a

241106A1

EXTENSION ASSY.

EXTENSION - axle, left-hand, 18 inch, combine P.I.N. JJC0182025 and after, not shown

1шт.

1a

241107A1

EXTENSION ASSY.

EXTENSION - axle, right-hand, 18 inch, combine P.I.N. JJC0182025 and after, not shown

1шт.

2

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

1шт.

3

135720A1

SHAFT

- axle drive, 1217 mm, left-hand, prior to combine P.I.N. JJC0182025

1шт.

3

135719A1

SHAFT

- axle drive, 881 mm, right-hand, prior to combine P.I.N. JJC0182025

1шт.

3

242844A1

SHAFT

- axle drive, 1217 mm, left-hand, combine P.I.N. JJC0182025 after

1шт.

3

242843A1

SHAFT

- axle drive, 881 mm, right-hand, combine P.I.N. JJC0182025 and after

1шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

1шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

1шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

NUT - hex, self-locking, 20 mm - 2.5, class 10.9

1шт.

7

181921A4

AXLE

- drive, 76 inch, See Ref. 1, Figure 6-56

1шт.

8

184358C1

ROD

- reinforcement, extension

1шт.

9

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.
