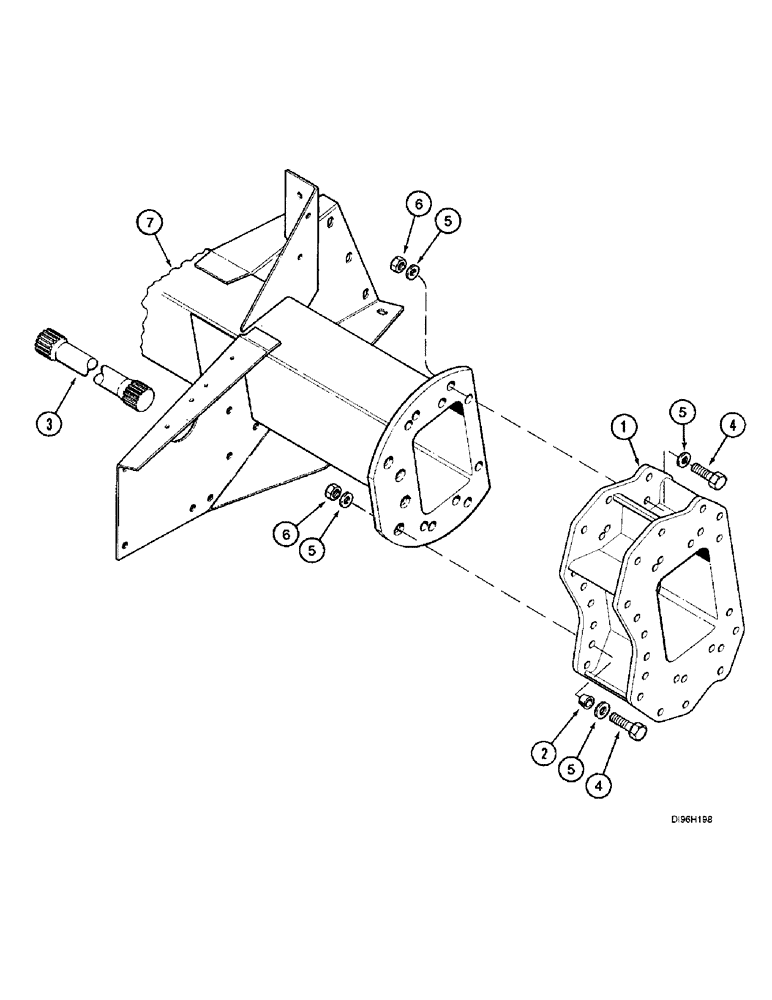

Запчасти Case IH 2166 (6-58) - AXLE EXTENSION, SINGLE WHEEL (03) - POWER TRAIN

1

242462A1

EXTENSION

- drive axle, 6 inch (Replaces extension 177345C4)

2шт.

2

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

1шт.

3

135718A1

SHAFT

- axle, 764 mm, left-hand drive, prior to combine P.I.N. JJC0182025

1шт.

3

135717A1

SHAFT

- axle, 428 mm, right-hand drive, prior to combine P.I.N. JJC1082025

1шт.

3a

242842A1

SHAFT

- axle, 764 mm, left-hand drive, not shown, combine P.I.N. JJC0182025 and after

1шт.

3a

242841A1

SHAFT

- axle, 428 mm, right-hand drive, not shown, combine P.I.N. JJC0182025 and after

1шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

1шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

1шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

NUT - hex, self-locking, 20 mm - 2.5, class 10.9

1шт.

7

181921A4

AXLE

- drive, 76 inch, See Ref. 1, Figure 6-56

1шт.
