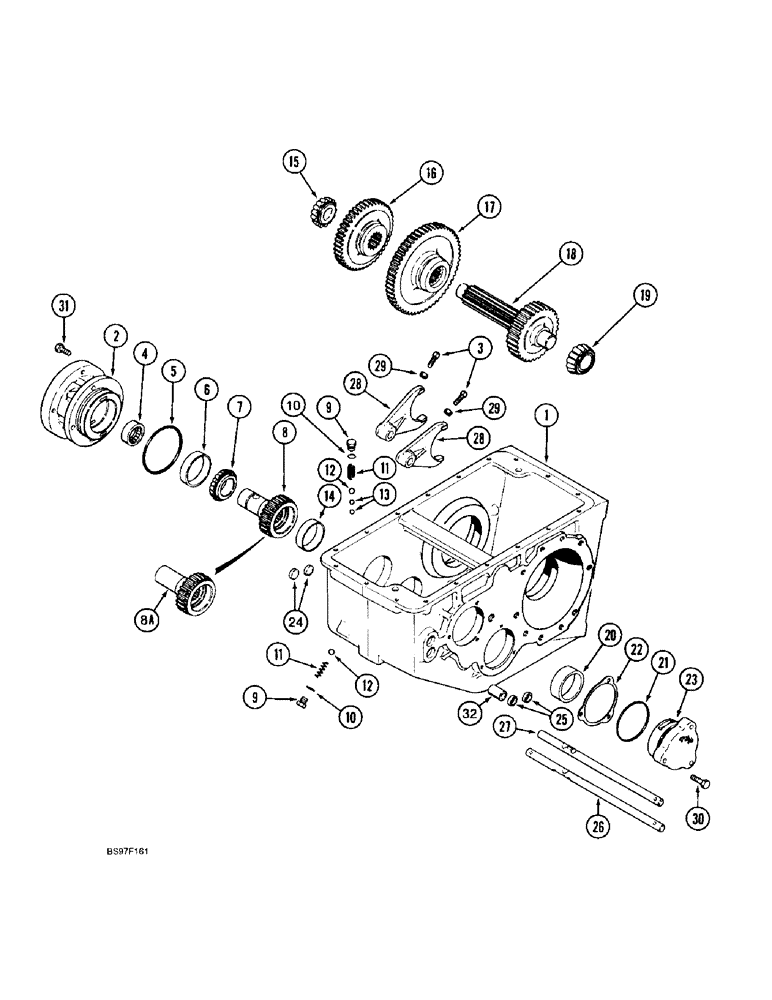

Запчасти Case IH 2166 (6-54) - TRANSMISSION, INPUT SHAFT, GEARS AND SHIFTER RAILS (03) - POWER TRAIN

1997995C1

TRANSMISSION

TRANSMISSION ASSEMBLY - 34/38 change gears, rice, parts list Figures 6-50, 6-52, 6-54, prior to P.I.N. JJC0182025, Includes: Ref. 1 - 32

1шт.

1997995C1R

REMAN-TRANSMISSION

Reman for New PN 1997995C1

1шт.

1997995C1C

CORE-TRANSMISSION

Return number

1шт.

1997996C1

TRANSMISSION

TRANSMISSION ASSEMBLY - 37/35 change gear, corn, grain, parts list Figures 6-50, 6-52, 6-54, prior to P.I.N. JJC0182025, Includes: Ref. 1 - 32

1шт.

1997996C1R

REMAN-TRANSMISSION

Remanufactured Transmission - Grain & Corn (37/35)

1шт.

1997996C1C

CORE-TRANSMISSION

Return number

1шт.

236706A1

TRANSMISSION

TRANSMISSION ASSEMBLY - 34/38 change gears, rice, parts list Figures 6-51A - 6-54, P.I.N. JJC0182025 and after, Includes: Ref. 1 - 32

1шт.

236706A1R

REMAN-TRANSMISSION

Reman for New PN 236706A1

1шт.

236706A1C

CORE-TRANSMISSION

Return Number

1шт.

236707A1

TRANSMISSION

TRANSMISSION ASSEMBLY - 37/35 change gear, corn, grain, parts list figures 6-51A - 6-54, P.I.N. JJC0182025 and after, Includes: Ref. 1 - 32

1шт.

236707A1R

REMAN-TRANSMISSION

Reman for New PN 236707A1

1шт.

236707A1C

CORE-TRANSMISSION

Return Number

1шт.

1

REF

INSTRUCTION

HOUSING - transmission, See Ref. 1, Figure 6-50 or 6-51A

1шт.

2

1997934C1

HOUSING

HOUSING - input shaft

1шт.

3

1997657C1

SET SCREW

SCREW - set, shifter fork

2шт.

4

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 inch OD

1шт.

5

238-5348

O-RING,0.21" Thk x 4.35" ID, -348, Cl 5, 75 Duro

O-RING, -348, 70 Duro, 4.35" ID x .210" Thk

1шт.

6

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.

7

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

CONE - tapered roller bearing, 1-25/32 inch ID

1шт.

8

401890R1

SHAFT

SHAFT - gear, input pinion, 26 teeth, 1997995C1 or 1997996C1 transmission, prior to P.I.N. JJC0182025

1шт.

8a

184217C1

GEAR

SHAFT - gear, input pinion, 26 teeth, 236706A1 or 236707A1 transmission, P.I.N. JJC0182025 and after

1шт.

9

76349

PLUG,9/16" - 18 ORB

PLUG, , Incl. Ref. 10 Hex Hd, 9/16"-18 ORB

2шт.

11

64600C1

SPRING

SPRING - shifter detent

2шт.

12

211-1016

BALL,12.7mm OD, Gr 24

BALL - chrome alloy steel, 1/2 inch, grade 24

2шт.

13

211-1014

BALL,7/16" Dia

BALL - chrome alloy steel, 7/16 inch, grade 24

2шт.

14

50213V

BEARING CUP

CUP - tapered roller bearing, 2-3/4 inch OD

1шт.

15

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE - tapered roller bearing, 1-5/16 inch ID

1шт.

16

530700R1

GEAR

GEAR - second and third sliding, 26 and 46 teeth

1шт.

17

401889R1

GEAR

GEAR - first sliding, 58 teeth

1шт.

18

1349044C1

SHAFT

SHAFT - drive, 34 teeth, rice, 1997995C1 or 236706A1 transmission

1шт.

18

1997650C1

SHAFT

SHAFT - drive gear, 37 teeth, corn, grain, 1997996C1 or 236707A1 transmission

1шт.

19

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

CONE - tapered roller bearing, 2-7/8 inch OD

1шт.

20

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

CUP - tapered roller bearing, 1-9/16 inch ID

1шт.

21

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

O-RING, -154, Cl 7, 3.737" ID x .103" Thk

1шт.

22

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

SHIM, (0.003") 0.076mm Thk

1шт.

22

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

SHIM, (0.005") 0.127mm Thk

1шт.

22

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

SHIM, (0.007") 0.178mm Thk

1шт.

22

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

SHIM, (0.030") 0.762mm Thk

1шт.

23

1997998C1

BEARING COVER,72.99 mm ID x 101.51 mm OD x 37.8 mm

CAP - bearing retainer

1шт.

24

41-1612

PLUG,Cup, 3/4", Stainless

PLUG, Cup, 3/4", Stainless

2шт.

25

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

SEAL - oil

2шт.

26

1342442C3

SHIFT RAIL

SHAFT - second and third gear shifter

1шт.

27

1342443C3

SHIFT RAIL

SHAFT - first gear shifter

1шт.

28

1997656C1

SHIFTER FORK

FORK - gear shifter

2шт.

29

829-1310

NUT,M10, Cl 10

NUT - hex, 10 mm - 1.5, class 10.9

2шт.

30

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT, , Use Loctite 516, See Below Hex, M10 x 35, 10.9, Full Thd

3шт.

31

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 25 mm, use Loctite 516, see below

4шт.

32

189168A1

SPACER

SPACER - shift rail

1шт.

345-181

SEALANT

SEALANT - Loctite 516, 1 ml tube

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk

1шт.
