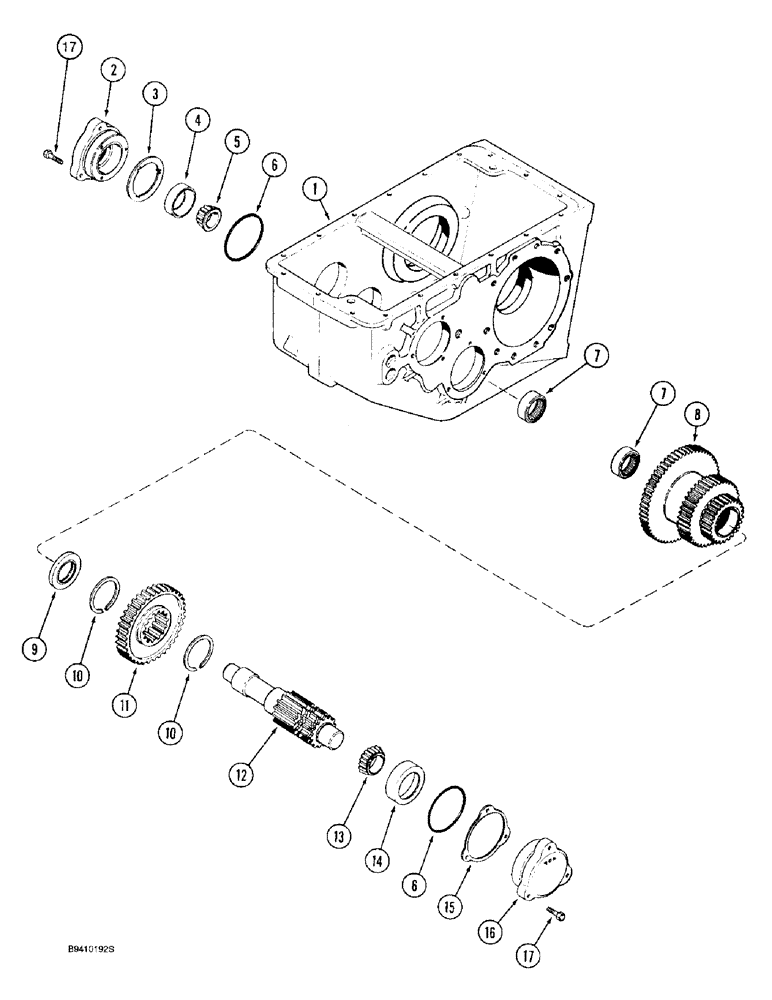

Запчасти Case IH 2166 (6-52) - TRANSMISSION, DIFFERENTIAL PINION SHAFT AND GEARS (03) - POWER TRAIN

1997995C1

TRANSMISSION

TRANSMISSION ASSEMBLY - 34/38 change gears, rice, parts list Figures 6-50, 6-52, 6-54, prior to P.I.N. JJC0182025, Includes: Ref. 1 - 17

1шт.

1997995C1R

REMAN-TRANSMISSION

Reman for New PN 1997995C1

1шт.

1997995C1C

CORE-TRANSMISSION

Return number

1шт.

1997996C1

TRANSMISSION

TRANSMISSION ASSEMBLY - 37/35 change gear, corn, grain, parts list Figures 6-50, 6-52, 6-54, prior to P.I.N. JJC0182025, Includes: Ref. 1 - 17

1шт.

1997996C1R

REMAN-TRANSMISSION

Reman For New P/N 1997996C1

1шт.

1997996C1C

CORE-TRANSMISSION

Return number

1шт.

236706A1

TRANSMISSION

TRANSMISSION ASSEMBLY - 34/38 change gears, rice, parts list Figures 6-51A - 6-54, P.I.N. JJC0182025 and after, Includes: Ref. 1 - 17

1шт.

236706A1R

REMAN-TRANSMISSION

Reman for New PN 236706A1

1шт.

236706A1C

CORE-TRANSMISSION

Return Number

1шт.

236707A1

TRANSMISSION

TRANSMISSION ASSEMBLY - 37/35 change gear, corn, grain, parts list Figures 6-51A - 6-54, P.I.N. JJC0182025 and after, Includes: Ref. 1 - 17

1шт.

236707A1R

REMAN-TRANSMISSION

Reman for New PN 236707A1

1шт.

236707A1C

CORE-TRANSMISSION

Return Number

1шт.

1

REF

INSTRUCTION

HOUSING - transmission, See Ref. 1, Figure 6-50 or 6-51A

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER HOUSING - bearing, left-hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

WASHER - thrust

1шт.

4

131312C1

BEARING CUP

CUP - tapered roller bearing, 2-27/32 inch OD, left-hand pinion shaft

1шт.

5

871244R1

ROLLER BEARING

CONE - tapered roller bearing, left-hand pinion shaft

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

O-RING, -154, Cl 7, 3.737" ID x .103" Thk

2шт.

7

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

2шт.

8

530699R1

PINION

GEAR - spool, 59, 39 and 27 teeth

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

SPACER - spool gear

1шт.

10

196693H1

RING

RING - snap, change gear

2шт.

11

1349045C1

PINION

GEAR - change driven, 38 teeth, rice, 1997995C1 or 236706A1 transmission

1шт.

11

1997649C1

PINION,35T

PINION, , Gear, Change driven, corn, grain, 1997996C1 or 236707A1 transmission 35T

1шт.

12

401878R1

SHAFT

SHAFT - pinion, 14 teeth

1шт.

13

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CONE - tapered roller bearing

1шт.

14

ST951

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

CUP - tapered roller bearing

1шт.

15

401883R1

SHIM

SHIM - .003 inch thick

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

SHIM, (0.005") 0.127mm Thk

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

SHIM, (0.007") 0.178mm Thk

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

SHIM, (0.030") 0.762mm Thk

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING HOUSING - bearing, right-hand

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT, , Use Loctite 516, See Below Hex, M10 x 35, 10.9, Full Thd

6шт.

345-181

SEALANT

SEALANT - Loctite 516, 1 ml tube

1шт.
