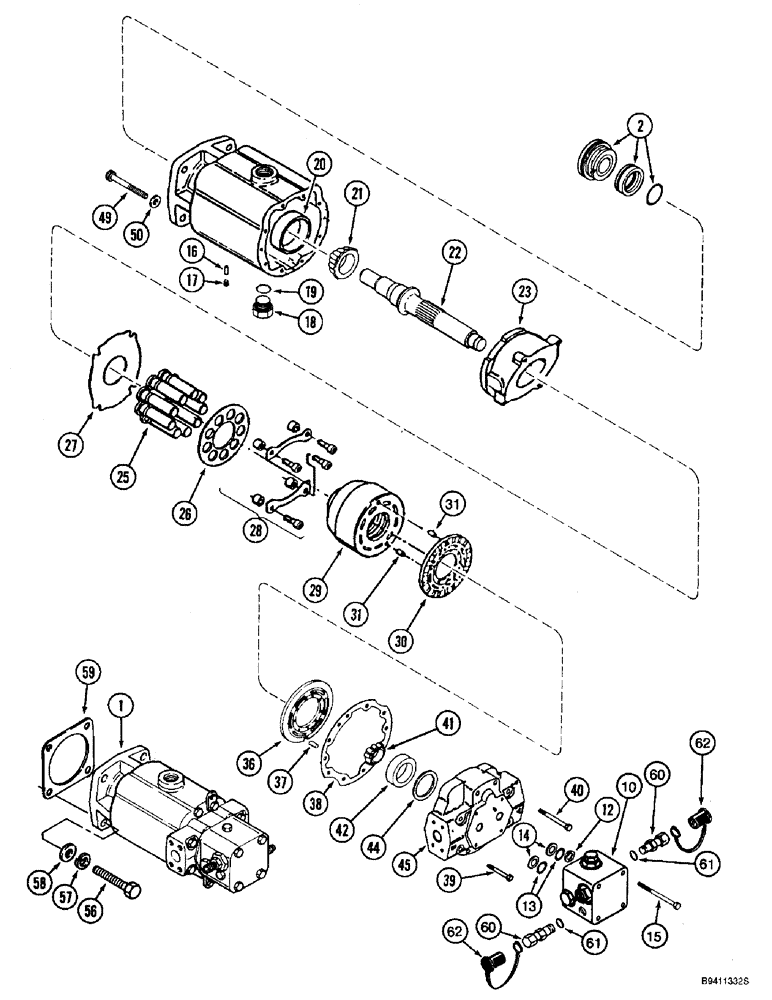

Запчасти Case IH 2166 (6-30) - HYDROSTATIC MOTOR ASSEMBLY, SINGLE SPEED, CORN AND GRAIN COMBINE (03) - POWER TRAIN

127934A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, parts list Figures 6-31 through 6-35, prior to combine P.I.N. JJC0182025, Includes: Ref. 2 - 50

1шт.

183296A2R

REMAN-HYD MOTOR

Reman For New PN 127934A1

1шт.

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, new, parts list Figures 6-31, 6-33, and 6-35B, combine P.I.N. JJC0182025 and after, Includes: Ref. 2 - 50

1шт.

1

183296A2R

REMAN-HYD MOTOR

2166 CASE IH AXIAL-FLOW COMBINE (NA), PUMP ASSEMBLY - hydrostatic, combine P.I.N. JJC0182025 and after (1/95-12/97)

1шт.

1

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

1346205C1

SEAL KIT

KIT - seal, shaft, four piece

1шт.

10

192404A1

VALVE

BLOCK ASSEMBLY - relief valve, parts list Figure 6-34, prior to combine P.I.N. JJC1082025, used with 127934A1 motor assembly

1шт.

10

193646A1

VALVE

BLOCK ASSEMBLY - relief valve, parts list Figure 6-35A, combine P.I.N. JJC0182025 and after, used with 183296A2 motor assembly

1шт.

140747C92

SEAL KIT

KIT - valve block mounting seal, valve block, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

RING - square, 3/4 x 7/8 x 1/16 inch

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3/4 ID x 1/16 inch

2шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

15

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

16

37-1516

DOWEL,5/16" x 1"

PIN, 5/16" x 1"

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT, Includes: Ref. 19

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing, output shaft

1шт.

21

56694H

BEARING ASSY,50.8mm ID x 30.3mm W

BEARING - tapered roller, output shaft

1шт.

22

1980137C1

SHAFT

- output

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - swash, fixed, order motor assembly

1шт.

1980138C1

KIT

- rotating, cylinder, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

26

NSS

NOT SOLD SEPARAT

PLATE - retaining

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - retaining, clear

1шт.

28

NSS

NOT SOLD SEPARAT

KIT - hold down

1шт.

29

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

31

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

36

1980139C1

PLATE

- valve

1шт.

37

140754C1

PIN

- dowel, 5/16 x 5/8 inch

3шт.

38

1980140C1

GASKET,0.38mm Thk

- end cover

1шт.

39

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

40

413-748

BOLT,Hex, 7/16" - 14 x 3", Gr 5

6шт.

41

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

CONE - tapered roller bearing, 1-3/16 inch ID, output shaft

1шт.

42

530741R1

BEARING CUP

CUP - tapered roller bearing, 2-17/32 inch OD, output shaft

1шт.

142398C91

SHIM KIT

KIT - shim, bearing, Includes: Ref. 44

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

1шт.

44

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

1шт.

45

NSS

NOT SOLD SEPARAT

COVER - end, order motor assembly

1шт.

49

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

2шт.

50

92734C1

SEALING WASHER

- sealing

2шт.

56

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

57

892-11012

LOCK WASHER,M12

WASHER, LOCK, , No Longer Used in this Application M12

4шт.

58

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

59

166506C1

GASKET,0.81mm Thk

- mounting

1шт.

60

R55912

NIPPLE

COUPLER - quick disconnect

2шт.

61

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

62

H434163

DUST CAP

CAP - dust

2шт.
