Запчасти Case IH 2144 (6-33A) - TRANSMISSION, HOUSING AND DIFFERENTIAL, COMBINE S/N JJC0173150 AND AFTER (03) - POWER TRAIN

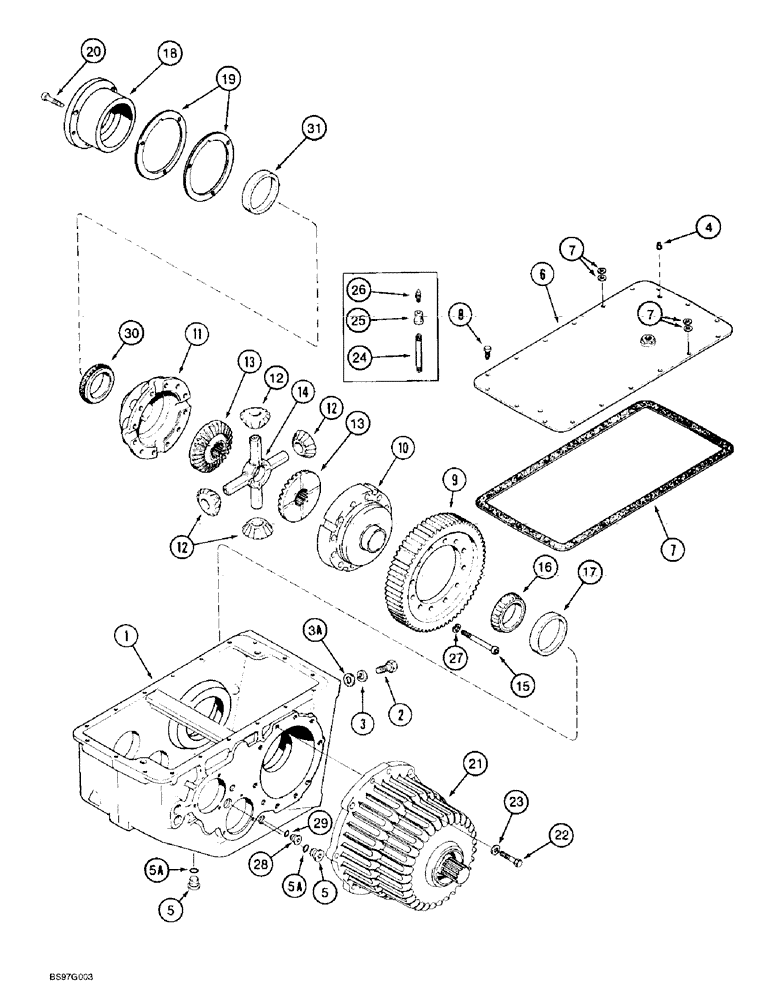

Схема запчастей Case IH 2144 - (6-33A) - TRANSMISSION, HOUSING AND DIFFERENTIAL, COMBINE S/N JJC0173150 AND AFTER (03) - POWER TRAIN
10
30
7
28
5
22
17
7
18
12
12
11
27
7
5a
9
31
9
13
2
1
12
23
21
14
15
16
6
3
24
20
19
3a
29
25
26
5a
5
4
13

Артикул

Название

Примечание

Количество

236706A1

TRANSMISSION

TRANSMISSION ASSEMBLY - 34/38 change gears, rice, Includes: Ref. 1 - 29, and parts list Fig 6-36, Start Serial: JJC0173150

1шт.

236706A1R

REMAN-TRANSMISSION

Reman for New PN 236706A1

1шт.

236706A1C

CORE-TRANSMISSION

Return Number

1шт.

236707A1

TRANSMISSION

TRANSMISSION ASSEMBLY - 37/35 change gear, corn, grain, Includes: Ref. 1 - 29 and parts list Fig. 6-36, Start Serial: JJC0173150

1шт.

236707A1R

REMAN-TRANSMISSION

Reman for New PN 236707A1

1шт.

236707A1C

CORE-TRANSMISSION

Return Number

1шт.

1

236715A1

HOUSING

HOUSING - transmission

1шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

BOLT, Hex, M16 x 50, 10.9

4шт.

3

892-16016

LOCK WASHER,M16, Hvy

WASHER - lock, 16 mm

4шт.

3a

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

WASHER - flat, 17.5 x 30 x 4 mm, hardened

4шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG - square, 1/4 inch PT

2шт.

5

9841223

PLUG,1-1/16" - 12 ORB

PLUG, , Incl. Ref. 5A Hex Soc, 1 1/16"-12 ORB

2шт.

5a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

239456A1

COVER

COVER - transmission housing, use Loctite 596, see below

1шт.

USE SEALANT - Loctite 596, red 1 ml. tube

1шт.

7

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened

4шт.

8

613-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 20 mm

18шт.

9

1997997C1

PINION

GEAR - differential driven, 66 teeth

1шт.

236380A1

HOUSING

HOUSING ASSEMBLY - differential, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - differential, right-hand

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING -differential, left-hand

1шт.

12

361061R3

PINION

GEAR - pinion, 15 teeth

4шт.

13

236377A1

BEVEL GEAR

GEAR - differential bevel, 28 teeth

2шт.

14

393637R2

DIFF. SPIDER

SPIDER - differential

1шт.

15

963-16080

HEX SOC SCREW,M16 x 80mm, Cl 10.9

BOLT - hex socket, 16 - 2.0 x 80 mm, class 10.9, use Loctite 516, see below

12шт.

USE SEALANT - Loctite 516 , 1 ml tube

1шт.

16

ST2096

BEARING ASSY,73.03mm ID x 25.4mm W

CONE - tapered roller bearing, differential

1шт.

17

ST981

BEARING CONE,112.71mm OD x 19.05mm W

CUP - tapered roller bearing, differential

1шт.

18

1997956C1

BALL RACE

HOUSING - bearing

1шт.

19

1997957C1

SHIM

SHIM - bearing housing, 0.813 mm thick

1шт.

19

1997958C1

SHIM

SHIM - bearing housing, 0.127 mm thick

1шт.

19

1997947C1

SHIM

SHIM - bearing housing, 0.076 mm thick

1шт.

20

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 25, 12.9

5шт.

21

236388A1

BRAKE ASSY.

BRAKE ASSEMBLY - master, transmission, parts list Fig. 7-6

2шт.

21

236388A1R

REMAN-BRAKE ASSY.

REMAN-BRAKE ASSY Remanufactured BRAKE ASSEMBLY, Wet Brakes

2шт.

21

236388A1C

CORE-BRAKE ASSY.

Return Number

2шт.

22

963-12040

HEX SOC SCREW,M12 x 40mm, Cl 10.9

BOLT - hex socket, 12 - 1.75 x 40 mm, class 10.9, use Loctite 516, see below

20шт.

SEALANT - Loctite 516, 1 ml tube

1шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, M13.5 x 24.5 x 3, HT

20шт.

24

221-1114

LUBE NIPPLE,1/8" NPT x 4 1/2"

NIPPLE, LUBE, , Straight 1/8" NPT x 4 1/2"

1шт.

25

144098

REDUCER

COUPLING - reducing, 1/4 to 1/8 PT

1шт.

26

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

27

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

WASHER - flat, 17.5 x 30 x 4 mm, hardened

12шт.

28

86625138

PLUG,7/18" - 14

PLUG, , Includes Ref. 29 Hex Soc, 7/8"-14 ORB

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O-RING, 10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

CONE - tapered roller bearing

1шт.

31

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

CUP - tapered roller bearing

1шт.

345-132

SEE PARTS MARKETING

SEALANT - Loctite 596, red, 1 ml tube

1шт.

345-181

SEALANT

SEALANT - Loctite 516, 1 ml tube

1шт.

Выбрано товаров: 49
