Запчасти Case IH 2144 (6-28) - TRANSMISSION UPPER SHIFT CONTROLS (03) - POWER TRAIN

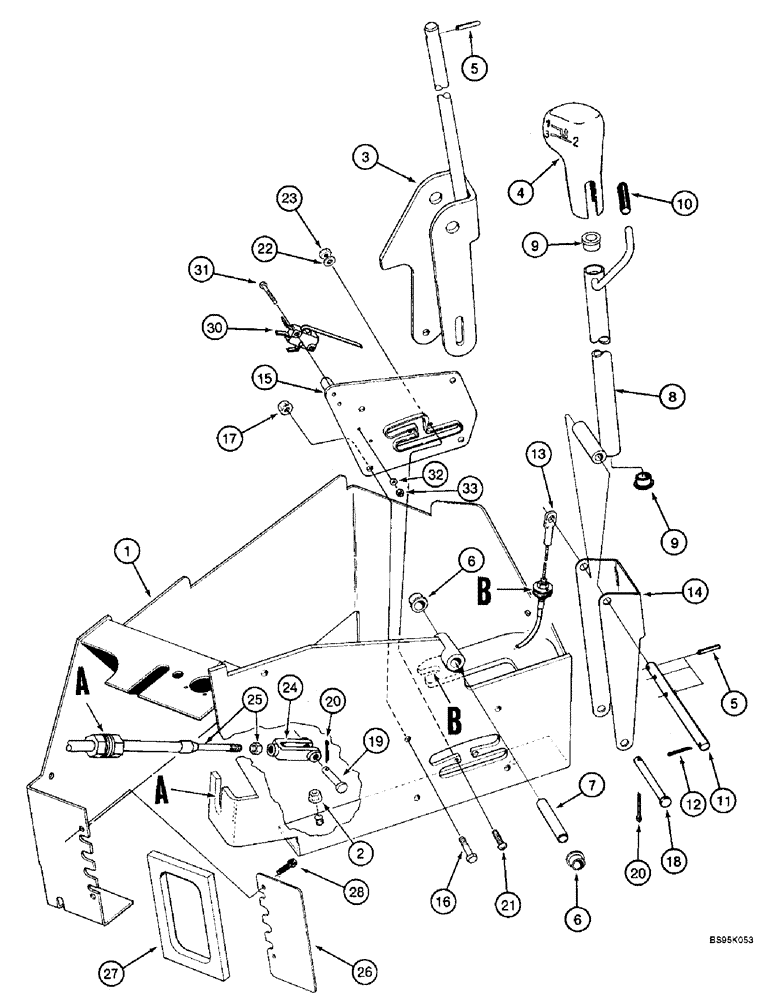

Схема запчастей Case IH 2144 - (6-28) - TRANSMISSION UPPER SHIFT CONTROLS (03) - POWER TRAIN
4
21
14
20
20
13
7
19
28
26
1
2
31
25
18
30
8
6
24
15
3
23
22
9
17
27
33
9
16
32
6
12
10
11
5
5

Артикул

Название

Примечание

Количество

1

122744A5

BRACKET

- shift mounting

1шт.

2

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

3

122751A3

LEVER

- transmission shift, 2nd and 3rd speed

1шт.

4

122205A3

HANDLE

KNOB - shift lever

1шт.

5

838-1428

LOCK PIN,M4 x 28, Slotted

PIN - roll, 4 x 28 mm

4шт.

6

S115001

FLANGED BEARING,0.502" ID x 0.627" OD x 0.3125"

BUSHING - shift lever bracket

2шт.

7

122199A1

PIVOT PIN,12.7mm OD x 73mm L

PIN - pivot

1шт.

197971A1

TUBE

ASSEMBLY - transmission shift, 1st speed, Includes: Ref. 8 and 9

1шт.

8

122754A3

TUBE

- transmission shift,1 st. speed, order tube assembly

1шт.

9

90-4368T1

BUSHING,15.95mm ID x 19.13mm OD x 7.92mm L

- lever pivot

2шт.

10

125803A1

SLEEVE

COVER - vinyl, shift tube handle

1шт.

11

122197A2

SPLIT PIN/SAFETY PIN

PIN - shift tube, to 1st speed cable

1шт.

12

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

115398A1

CABLE,3209mm L

- transmission shift, first speed

1шт.

14

124714A1

LARGE PLATE

LINK - shift lever

1шт.

15

122757A3

GUIDE

GATE - shift lever

1шт.

16

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

4шт.

17

825-5146

SERRATED NUT,M6, Flg Ser

4шт.

18

427-6325

CLEVIS PIN,3/8" x 3 1/4"

PIN - clevis, 3/8 x 3-1/4 inch, hardened

1шт.

19

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

21

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 20 mm

2шт.

22

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

23

824-1404

NUT,M4, Cl 5

- hex, 4 mm - 0.7, class 5

2шт.

24

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

1шт.

25

115397A1

CABLE,3571mm L

- transmission shift, 2nd and 3rd speed

1шт.

26

122750A1

PLATE

- bulkhead at cab

1шт.

27

122758A1

GASKET

- bulkhead plate

1шт.

30

60-6515T1

SWITCH

- third gear lock out, see figure4-20

1шт.

31

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

- machine, hex head, No. 4 NC x 3/4 inch

2шт.

32

495-31012

WASHER,#4

- flat, 1/8 x 5/16 x 1/32 inch

2шт.

33

225-14104

NUT,#4-40

2шт.

28

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

Выбрано товаров: 33
