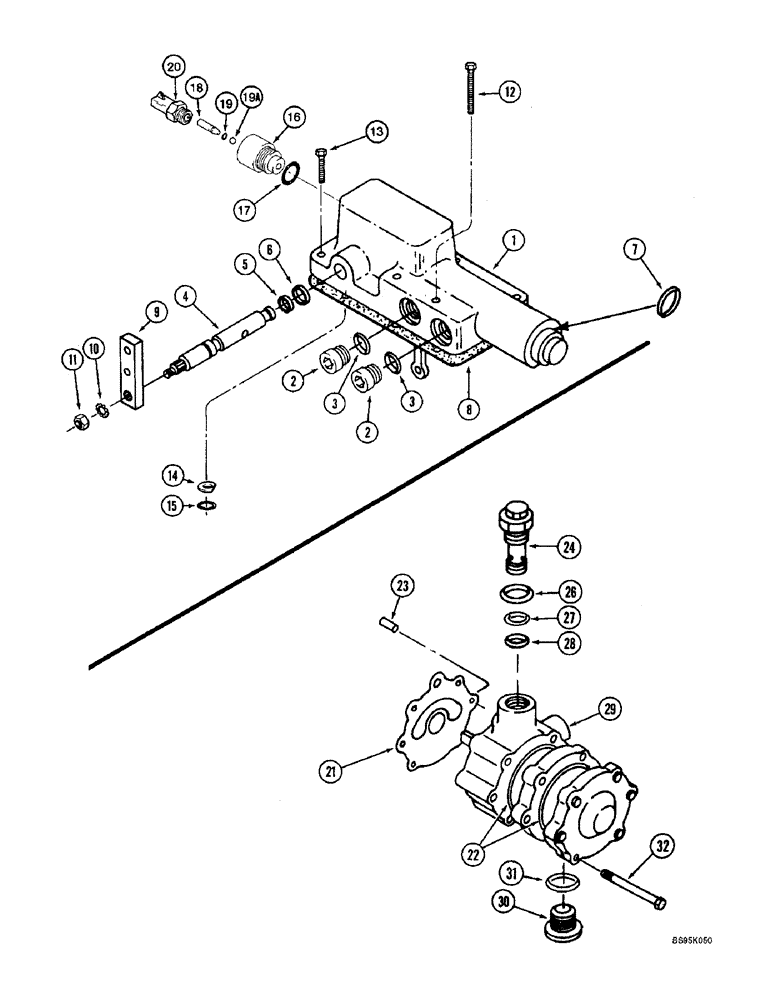

Запчасти Case IH 2144 (6-20) - HYDROSTATIC PUMP, CONTROL VALVE, CHARGE PUMP (03) - POWER TRAIN

191065A1

CONTROL VALVE

VALVE ASSEMBLY - control, pump, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 191065A1

1шт.

2

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 3 Hex Soc, 9/16"-18 ORB

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

1978048C3

KIT

SHAFT ASSEMBLY - valve, Replaces 1978048C2, Includes: Ref. 4 - 6

1шт.

The C3 version also includes the control shaft set screw that is not shown on this page. Set screw goes in underneath the valve body.

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - control valve, order shaft assembly 1978048C2

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - shaft, order shaft assembly 1978048C2

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk, Not included with valve assembly, also order instruction sheet 1095523R1 (Replaces O-ring 80269C1)

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

REF

INSTRUCTION

LEVER - pump control, not used in this application

1шт.

See Figure 6-14, Ref. 20, for correct pump control lever.

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

326-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

1272750C1

ORIFICE

- 0.057 inch

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

197909A1

ADAPTER

ASSEMBLY - special, valve to switch, Includes: Ref. 16 - 19A

1шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - special, valve to switch, order adapter assembly 197909A1

1шт.

17

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

Adapter to valve -008, 90 Duro, .176" ID x .070" Thk

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - neutral start, order adapter assembly 197909A1

1шт.

19

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk

1шт.

19a

NSS

NOT SOLD SEPARAT

BALL - neutral start, order adapter assembly 197909A1

1шт.

20

197514A1

SENSOR

SWITCH - neutral start, ball type

1шт.

133761C91

PUMP

ASSEMBLY - charge, Includes: Ref. 21 - 29

1шт.

21

133760C2

GASKET

- charge pump

1шт.

22

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk, Charge pump

2шт.

23

140754C1

PIN

- dowel, 5/16 x 5/8 inch, charge pump

2шт.

24

140771C1

VALVE

- relief, low pressure, charge pump, Includes: Ref. 26 - 28

1шт.

26

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk, Charge pump

1шт.

27

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Charge pump -117, 90 Duro, .799" ID x .103" Thk

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Charge pump

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - pump, order pump assembly 133761C91, charge pump

1шт.

30

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 31, Charge pump Hex Hd, 7/16"-20 ORB

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

32

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

charge pump Hex, 5/16"-18 x 3 1/2", G5

4шт.
