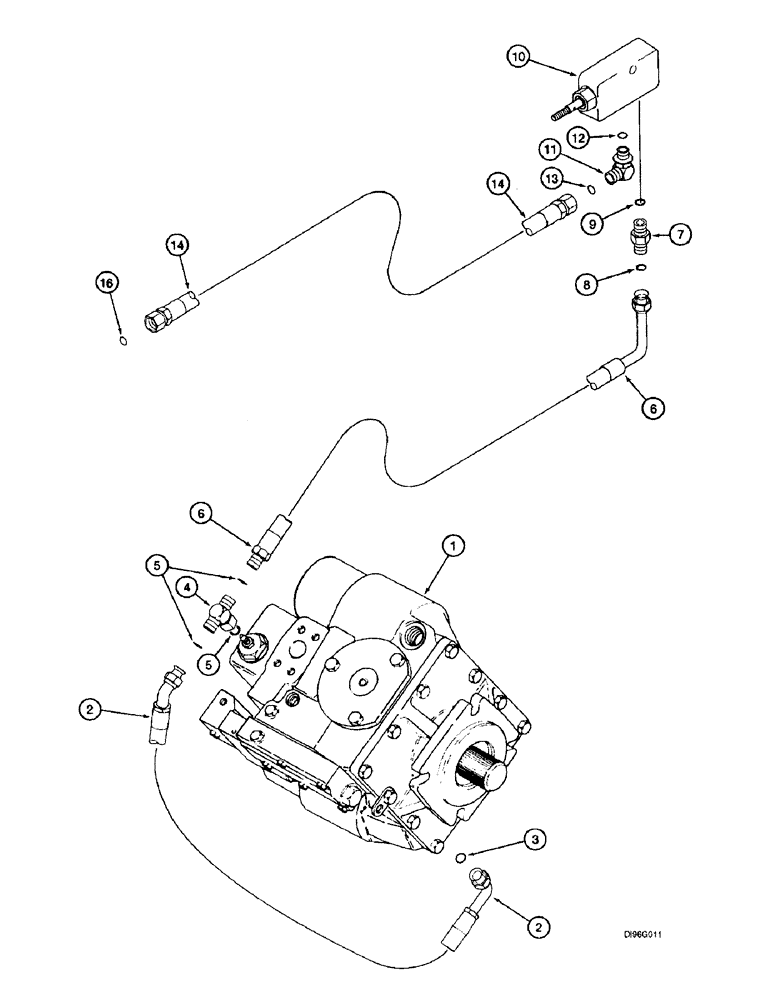

Запчасти Case IH 2144 (6-10) - FOOT-N-INCH VALVE HYDRAULIC SYSTEM, PRIOR TO COMBINE S/N JJC0173150 (03) - POWER TRAIN

1

127933A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, parts list Figure 6-22

1шт.

2

141127A2

HOSE

- at motor relief valve, 15-3/4 inch (400 mm) long

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

201-426

TEE,9/16"-18 ORFS x 9/16"-18 Sw Br

- 9/16-18 inch swivel face branch x face x face, Includes: Ref. 5

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

6

141126A1

HOSE

- supply to foot-n-inch valve, 110-1/4 inch (2800 mm) long

1шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 8 and 9

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

123973A2

VALVE

ASSEMBLY - Foot-N-Inch, 6000 psi, parts list page 6-13

1шт.

11

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss, Incl Ref 12 and 13

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

141158A1

HOSE

- return from foot-n-inch valve, 25-5/8 inch (651 mm) long

1шт.

237445A1

PACKAGE

KIT - Foot-N-Inch valve, Includes: Ref. 15 - 17

1шт.

15

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

- 90 degree, 13/16-16 inch face seal x swivel face seal, not shown, Includes: Ref. 16

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

530575R91

SHIM KIT

KIT - shim, see figure 6-12, not shown

1шт.
