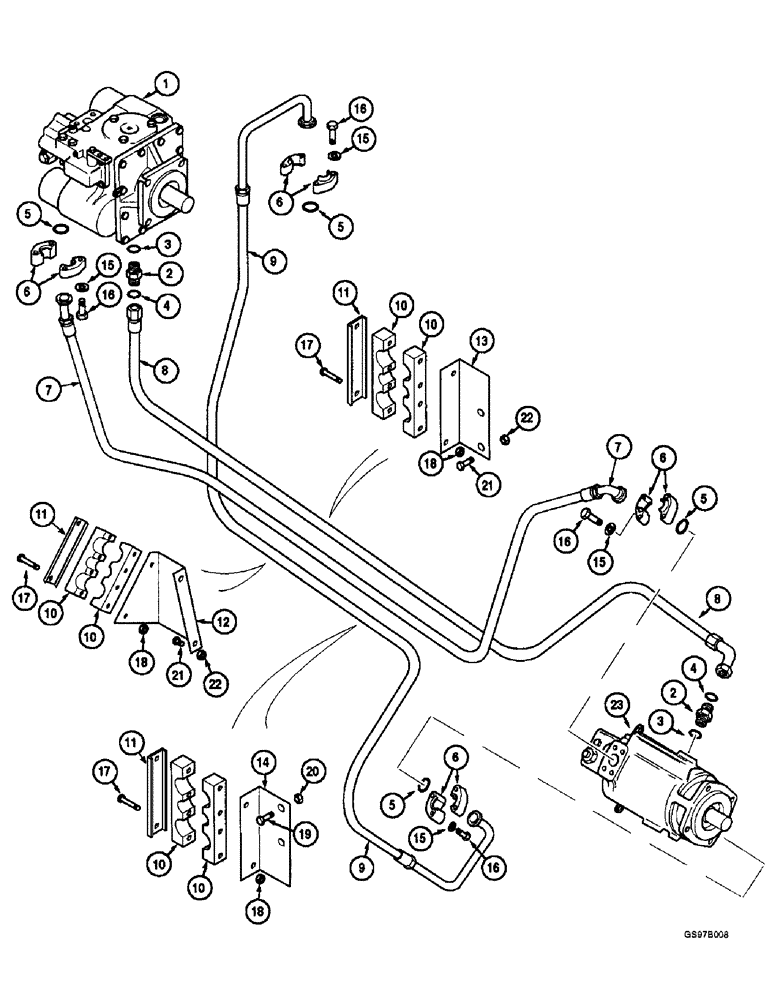

Запчасти Case IH 2144 (6-07A) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, W/O POWER GUIDE AXLE, S/N JJC0173150 AND AFTER (03) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Fig. 6 - 16 and 6 - 18

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 3 and 4 1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

- split flange, 1 inch

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

- forward, pump to motor, 136 inch (3455 mm) long

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

- drain, pump to motor, 145-7/8 inch (3705 mm) long

1шт.

9

227641A2

HOSE

- reverse, pump to motor, 159-5/8 inch (4055 mm) long

1шт.

10

221145A1

CLAMP

- two piece, hose

3шт.

11

224303A1

GUIDE

CHANNEL - clamp back-up, 1-5/16 ID x 1/8 inch wide

3шт.

12

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

13

224302A1

SUPPORT

- hose clamp, middle

1шт.

14

224301A1

SUPPORT

- hose clamp, front

1шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

22

231-5146

FLANGE NUT,3/8"-16

5шт.

23

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, parts list Fig. 6 - 22 and 6 - 24

1шт.

24

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, (Not Shown) 1 5/16", Insul, 3/8" Bolt

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Used to separate reverse hydrostatic and case drain hoses, Not shown 1 1/2", Insul, 3/8" Bolt

1шт.
