(6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, W/O POWER GUIDE AXLE, PRIOR TO S/N JJC0173150

Запчасти Case IH 2144 (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, W/O POWER GUIDE AXLE, PRIOR TO S/N JJC0173150 (03) - POWER TRAIN

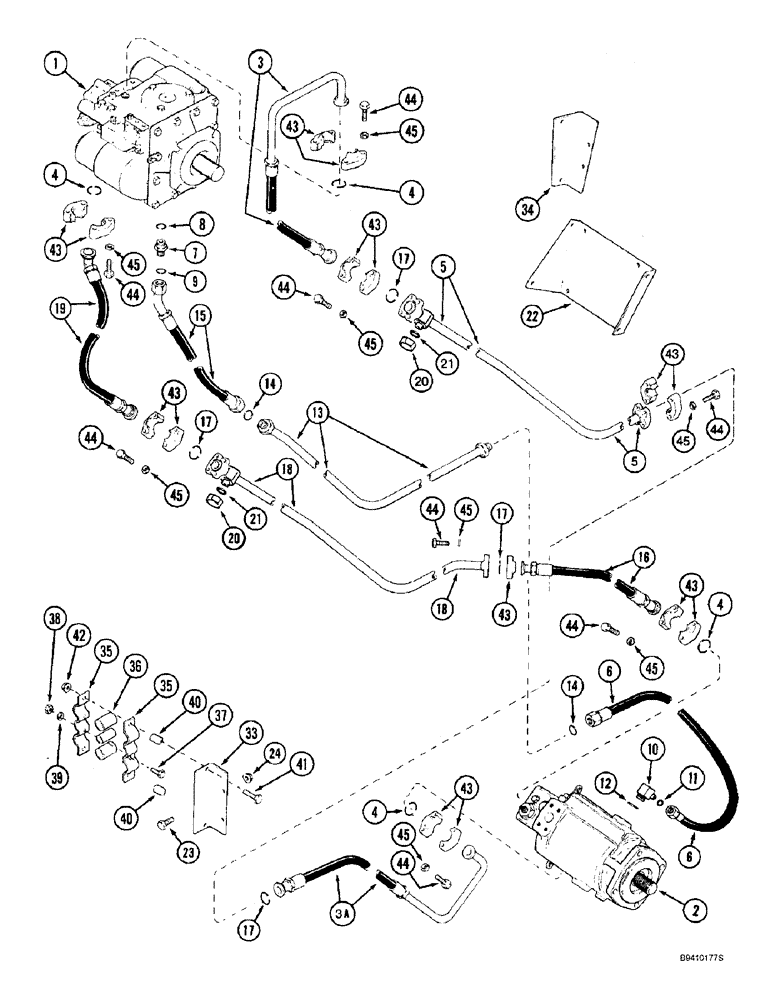

Схема запчастей Case IH 2144 - (6-06) - HYDROSTATIC PUMP AND MOTOR SYSTEM, SINGLE SPEED, W/O POWER GUIDE AXLE, PRIOR TO S/N JJC0173150 (03) - POWER TRAIN
9
17
44
43
22
6
44
11
24
4
44
5
43
40
35
3a
44
38
43
3
44
1
44
44
19
17
4
18
4
33
40
45
42
45
41
20
7
17
14
2
6
43
34
18
36
21
10
45
45
43
35
13
21
12
43
15
45
14
45
17
23
39
43
37
16
8
20
5
45
45
44
43
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1330477C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, corn and grain, parts list Figure 6-16

1шт.

2

127933A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, single speed, parts list Figure 6-22

1шт.

3

1979955C2

HOSE

- reverse pressure, upper, 33-7/8 inch (860 mm) long

1шт.

3a

128341A1

HOSE

- reverse pressure, lower, 38-7/16 inch (976 mm) long

1шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE - reverse pressure, 1 inch OD

1шт.

6

128342A1

HOSE

- case drain, lower, 39-3/4 inch (1010 mm) long

1шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 8 and 9 1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

- 90 degree, 1-7/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 11 and 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

1979932C1

HYD TUBE

TUBE - case drain

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

15

1979936C1

HOSE

- case drain, upper, 16-1/2 inch (420 mm) long

1шт.

16

128340A1

HYDRAULIC HOSE,25.40 mm ID x 746.00 mm

- Forward lower pressure 25.40 mm ID x 746.00 mm

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

18

1541756C2

HYD TUBE

TUBE - forward pressure, 1 inch OD

1шт.

19

1347124C2

HOSE,25.4mm ID x 550mm L

- forward upper pressure, 21-5/8 inch (550 mm) long

1шт.

20

201-907

CAP,1-3/16" - 12 ORFS

Includes Ref. 21 1 3/16"-12 ORFS

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

22

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

7шт.

24

231-5146

FLANGE NUT,3/8"-16

7шт.

33

1347034C1

SUPPORT

BRACKET - tube support, rear

1шт.

34

1347033C1

SUPPORT

BRACKET - tube support, front

1шт.

35

1347156C1

SHIN

CLAMP - half, tube

6шт.

36

187935C1

STRIP

SLEEVE - pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

1979761C1

SPACER

- 3/8 ID x 1 inch

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

- split flange, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.

46

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, (Not Shown) 1 5/16", Insul, 3/8" Bolt

1шт.

47

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Used to separate reverse hydrostatic and case drain hoses, Not shown 1 1/2", Insul, 3/8" Bolt

1шт.
