(3-15A) - THROTTLE CONTROL, COMBINE P.I.N. JJC0173150 AND AFTER

Запчасти Case IH 2144 (3-15A) - THROTTLE CONTROL, COMBINE P.I.N. JJC0173150 AND AFTER (02) - FUEL SYSTEM

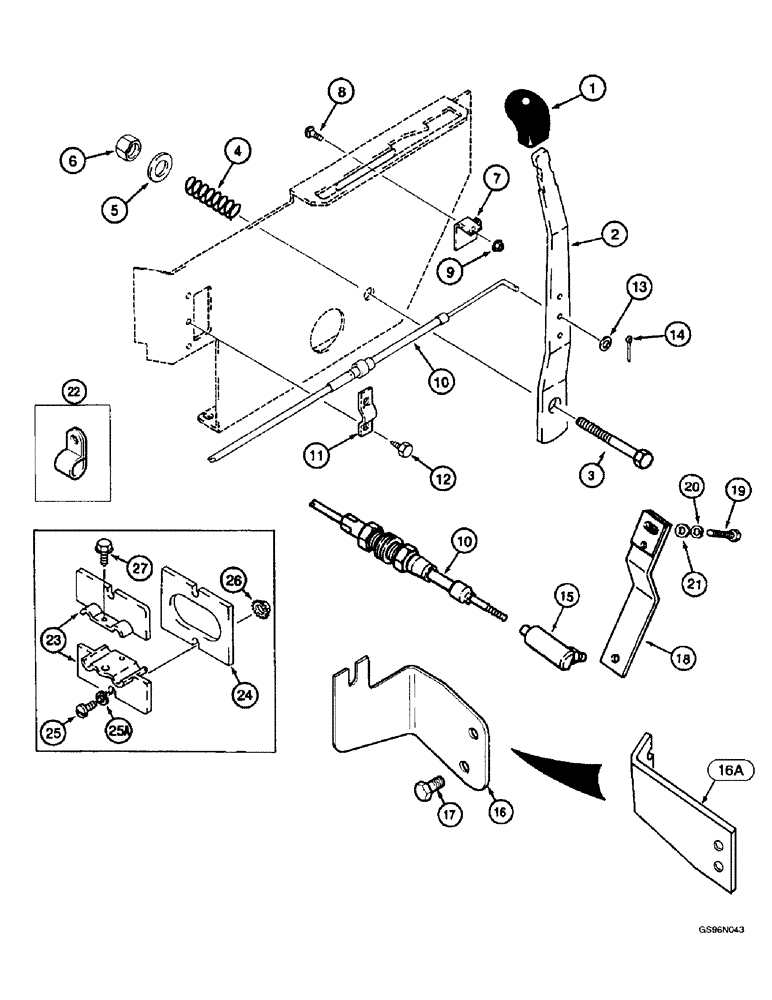

Схема запчастей Case IH 2144 - (3-15A) - THROTTLE CONTROL, COMBINE P.I.N. JJC0173150 AND AFTER (02) - FUEL SYSTEM
13
6
25
2
10
22
12
14
7
26
16
9
3
1
27
4
18
25a
5
21
10
24
23
11
20
19
8
16a
15
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

134071A1

KNOB

- throttle control lever

1шт.

2

116434A1

LEVER

- throttle control

1шт.

3

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

4

PO22

SPRING

- throttle control lever

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

116433A2

STOP

ANGLE - throttle stop

1шт.

8

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

115396A1

CABLE

- throttle and propulsion

1шт.

11

A75815

CLAMP

- retaining

1шт.

12

841-4410

SCREW,HWH, M4 x 10mm, Cl 4.8

- machine, hex washer head, 4 - 0.7 x 10 mm, class 4.8

2шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

15

1977009C4

BALL JOINT

JOINT - ball, No. 10, type AL

1шт.

16

186458A3

SUPPORT

- throttle cable, no longer used, order bracket 255240A1, item 16A

1шт.

16a

255240A1

SUPPORT

BRACKET - throttle cable

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

18

1977046C5

LEVER

- pump throttle

1шт.

19

615-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm

2шт.

20

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

21

495-81006

WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk

- flat, 17/64 x 3/4 x 1/16 inch

2шт.

22

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

2шт.

23

119314A1

CLAMP

- bulkhead

2шт.

24

119328A1

GASKET,5mm Thk

- bulkhead clamp

1шт.

25

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #10-24 x 3/4"

2шт.

25a

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

26

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

27

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

2шт.
