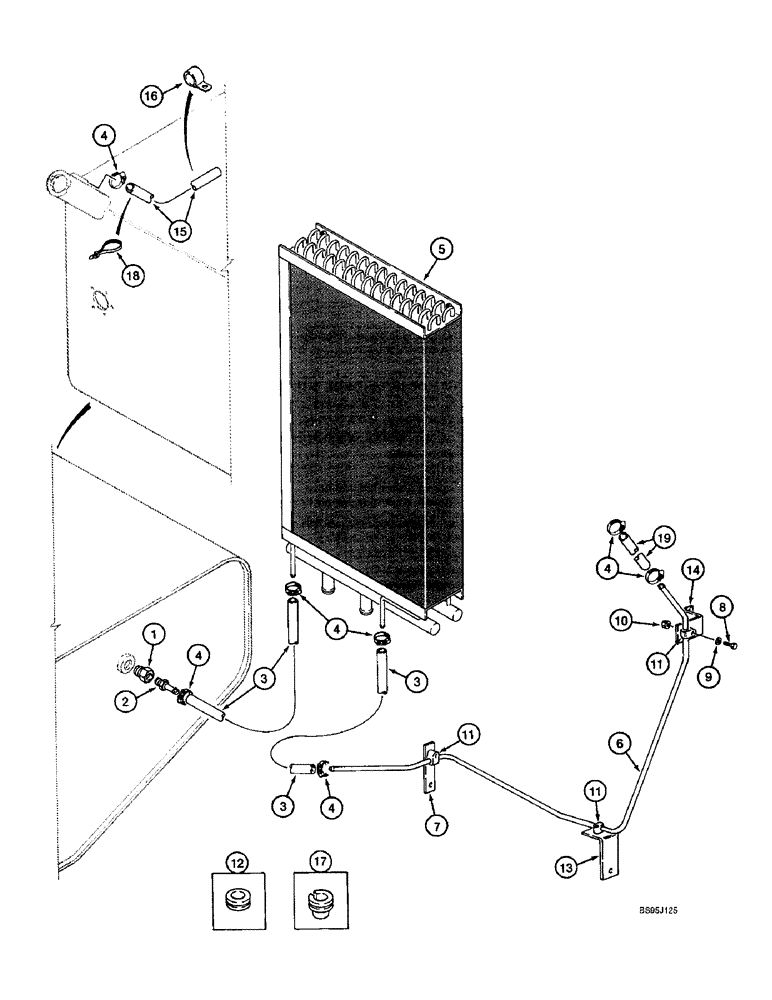

Запчасти Case IH 2144 (3-11C) - FUEL RETURN LINES SYSTEM, COMBINE P.I.N. JJC0173150 AND AFTER (02) - FUEL SYSTEM

1

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter 3/8" Hose X 1/4" NPTF Beaded

1шт.

3

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

9.53 mm ID x 770.00 mm, SAE 30R2

2шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

6шт.

5

195441A2

COOLER

- combination, fuel and oil, see Figure 8-13A for mounting brackets and hardware

1шт.

6

224971A1

FUEL TUBE

TUBE - fuel return

1шт.

7

1330564C1

PLATE

SUPPORT - fuel tube, lower

1шт.

9

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

236558A1

CLAMP

- fuel tube

5шт.

12

248-2117

GROMMET,5/8" ID x 7/8" Groove Dia

- rubber, 7/8 inch groove diameter

2шт.

13

178950C1

ANGLE

SUPPORT - steering tubes, fuel tube

1шт.

14

121525A1

SUPPORT

- fuel tube, upper

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - fuel tank vent, 125 inch (3175 mm) long, cut from 74813C2 bulk tube below

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

17

195803C1

GROMMET

- 3/8 inch ID, tube

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - fuel return, 13 inch (331 mm) long, cut from 364357C1 bulk hose below

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 3/8 (10) ID x 600 inch (15240 mm) long

1шт.

74813C2

TUBE,0.375" OD

- bulk, 3/8 (9.5) OD x 600 inch (15240 mm) long

1шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
