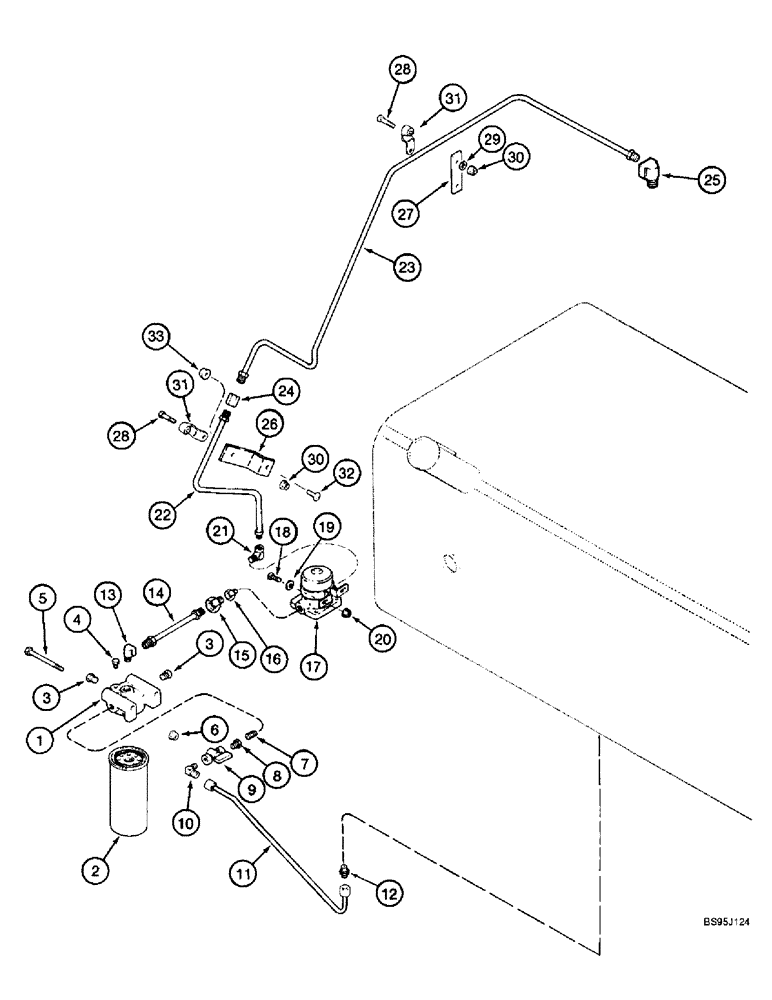

Запчасти Case IH 2144 (3-11A) - FUEL SUPPLY LINES SYSTEM, COMBINE P.I.N. JJC0173150 AND AFTER (02) - FUEL SYSTEM

1

612277C2

FILTER HEAD

BASE - fuel filter

1шт.

2

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

3

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT

1шт.

4

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.

5

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch, grade 2

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

7

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) x 1-7/16" lg. 1/4"-18 NPTF

1шт.

8

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

9

1345205C1

SHUT-OFF VALVE

VALVE - fuel shut off

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

11

1994884C1

FUEL TUBE

TUBE - fuel, filter, Serial Range: base-tank

1шт.

12

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

13

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

14

1977000C1

HYD TUBE,0.375" OD

TUBE - filter to pump

1шт.

15

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., 5/8"-18 Inv Fl x 1/4" NPT

1шт.

16

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT

1шт.

17

196503C2

PUMP

- fuel, electric

1шт.

18

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

19

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 9/64 inch

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

21

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare

1шт.

22

1977001C1

HYD TUBE

TUBE - fuel supply, lower

1шт.

23

1980042C1

FUEL TUBE

TUBE - fuel supply, upper

1шт.

24

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

1шт.

25

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

26

196517C1

SUPPORT TUBE

SUPPORT - fuel tubes, fuel tube, lower

1шт.

27

1330564C1

PLATE

SUPPORT - fuel tube

1шт.

29

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

30

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

31

183821C1

CLAMP

- single tube

2шт.

32

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

28

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
