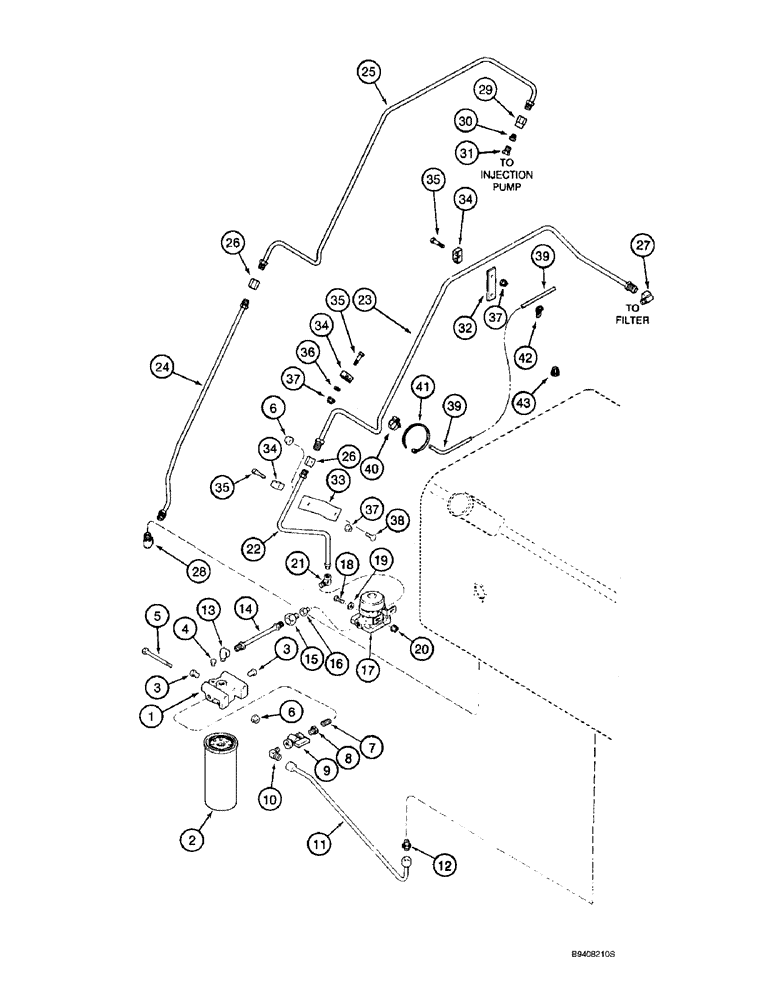

Запчасти Case IH 2144 (3-10) - FUEL LINES AND FILTER SYSTEM, PRIOR TO COMBINE S/N JJC0173150, SUPPLY AND RETURN (02) - FUEL SYSTEM

1

612277C2

FILTER HEAD

BASE - fuel filter

1шт.

2

A184776

FUEL FILTER

FILTER - fuel

1шт.

3

217-86

PLUG,Hex Hd, 1/4"-18, Brass

- hex, 1/4 inch PT

2шт.

4

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.

5

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch, grade 2

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

7

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) x 1-7/16" lg. 1/4"-18 NPTF

1шт.

8

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

9

1345205C1

SHUT-OFF VALVE

VALVE - fuel shut off

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT, filter base to tank

1шт.

11

1994884C1

FUEL TUBE

TUBE - fuel, filter, Serial Range: base-tank

1шт.

12

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

13

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

14

1977000C1

HYD TUBE,0.375" OD

TUBE - filter to pump

1шт.

15

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., 5/8"-18 Inv Fl x 1/4" NPT

1шт.

16

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

- 3/8 PT x 1/4 inch female PT

1шт.

17

196503C2

PUMP

- fuel, electric

1шт.

18

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

19

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

21

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare

1шт.

22

1977001C1

HYD TUBE

TUBE - fuel supply, lower

1шт.

23

1980042C1

FUEL TUBE

TUBE - fuel supply, upper

1шт.

24

183653C2

FUEL TUBE

TUBE - fuel return, lower

1шт.

25

1330565C1

FUEL TUBE

TUBE - fuel return, upper

1шт.

26

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

2шт.

27

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

28

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare, lower fuel return tube

1шт.

29

442330

FITTING

CONNECTOR - 1/4 inch PT

1шт.

30

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 PT x 1/8 inch female PT

1шт.

31

1330561C1

FITTING

ADAPTER - special, return tube

1шт.

32

1330564C1

PLATE

SUPPORT - fuel tube, upper

1шт.

33

196517C1

SUPPORT TUBE

SUPPORT - fuel tubes, lower

1шт.

34

183825C1

CLAMP

- fuel tube

3шт.

36

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

38

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

39

NSS

NOT SOLD SEPARAT

TUBE - fuel tank vent, 125 inch (3175 mm) long, cut from 74813C2 bulk tube below

1шт.

40

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

42

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

43

195803C1

GROMMET

- 3/8 inch ID, tube

1шт.

74813C2

TUBE,0.375" OD

- bulk, 3/8 (9.5) OD x 600 inch (15240 mm) long

1шт.

35

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

3шт.
