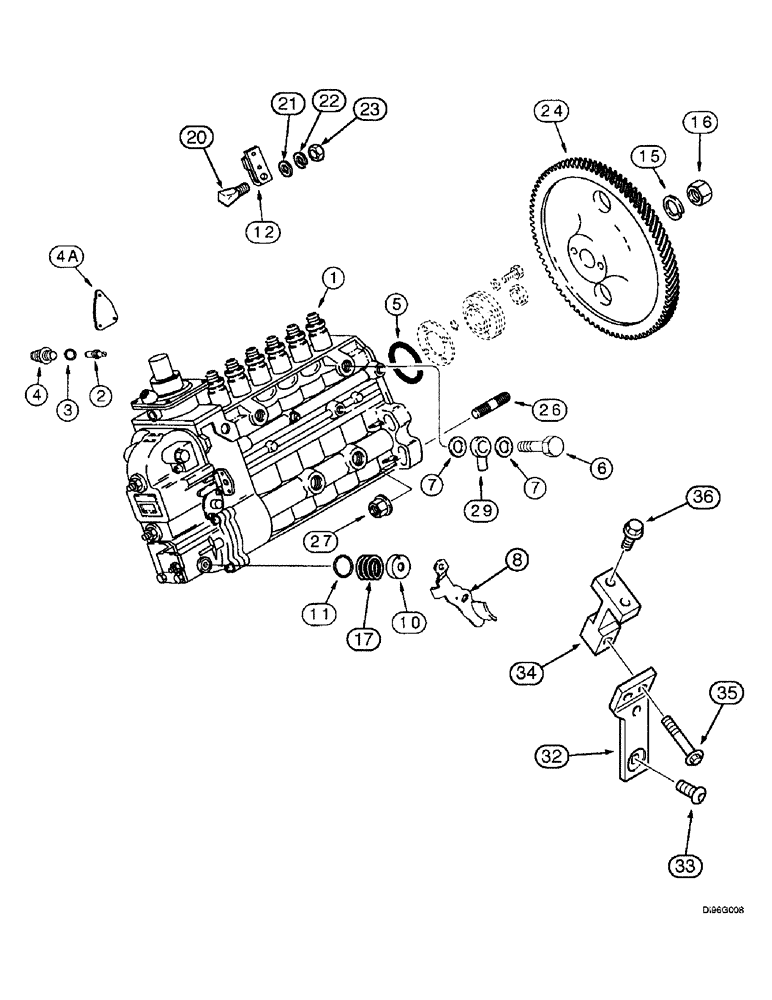

Запчасти Case IH 2144 (3-07A) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (02) - FUEL SYSTEM

1

J929601

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, with aneroid, Includes: Ref. 2 - 23

1шт.

JR929601

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC929601

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, , Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

4a

A71110

GASKET

GASKET - mounting

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

8

J910979

LEVER

LEVER - pump shutoff, not shown

1шт.

9

J930683

LOCK NUT

NUT - hex, 5 mm - 0.8, not shown

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

12

1808728C1

LEVER

LEVER - throttle control

1шт.

13

J913320

SCREW

SCREW - vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

GASKET - vent screw

1шт.

15

A77775

LOCK WASHER

WASHER - lock

1шт.

16

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

17

J912890

SPRING

SPRING - lever shutoff

1шт.

18

B41211

SCREW

SCREW - vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

24

J931450

PINION

GEAR - fuel pump

1шт.

26

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm - 1.5

4шт.

28

J916284

O-RING

O-RING - sealing, fuel injection pump

1шт.

29

J911447

CONNECTOR, ELEC

CONNECTOR CONNECTOR - banjo, fuel return

1шт.

30

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

31

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, adjustable

1шт.

32

J928408

BRACE

BRACE - fuel pump

1шт.

33

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

SCREW - round head cap

2шт.

34

J928407

BRACE

BRACE - fuel pump

2шт.

35

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 45 mm

1шт.

36

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

BOLT - heavy hex flange, 10-1.5 x 25 mm

2шт.
