Запчасти Case IH 2144 (3-03C) - ANEROID AND WASTEGATE SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (02) - FUEL SYSTEM

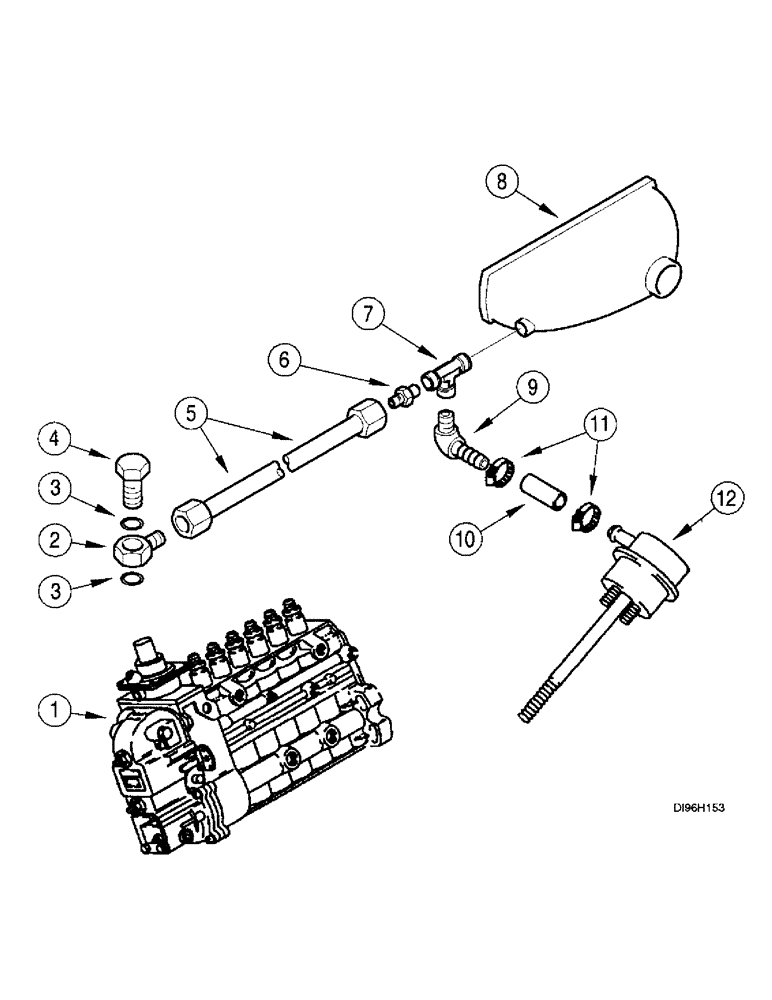

Схема запчастей Case IH 2144 - (3-03C) - ANEROID AND WASTEGATE SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (02) - FUEL SYSTEM
5
6
10
4
9
3
3
8
2
7
1
11
12

Артикул

Название

Примечание

Количество

1

J929601

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, with aneroid, see Figure 3-7A

1шт.

1

JR929601

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP; For N.A. only

1шт.

1

JC929601

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

2

J919644

FITTING

CONNECTOR - banjo, top of aneroid cover

1шт.

3

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

4

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

5

J928530

TUBE

TUBE - air fuel control

1шт.

6

J920803

CONNECTOR, ELEC

CONNECTOR ADAPTER - compression, special

1шт.

7

J925429

TEE

TEE - street, 1/8 inch PT

1шт.

8

J928502

CONNECTOR, ELEC

CONNECTOR CONNECTION - air crossover

1шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

FITTING, , Elbow 45º, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

10

J925438

HOSE,130.00 mm

1шт.

11

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

2шт.

12

J535861

VALVE

ACTUATOR - turbo wastegate

1шт.

Выбрано товаров: 14
