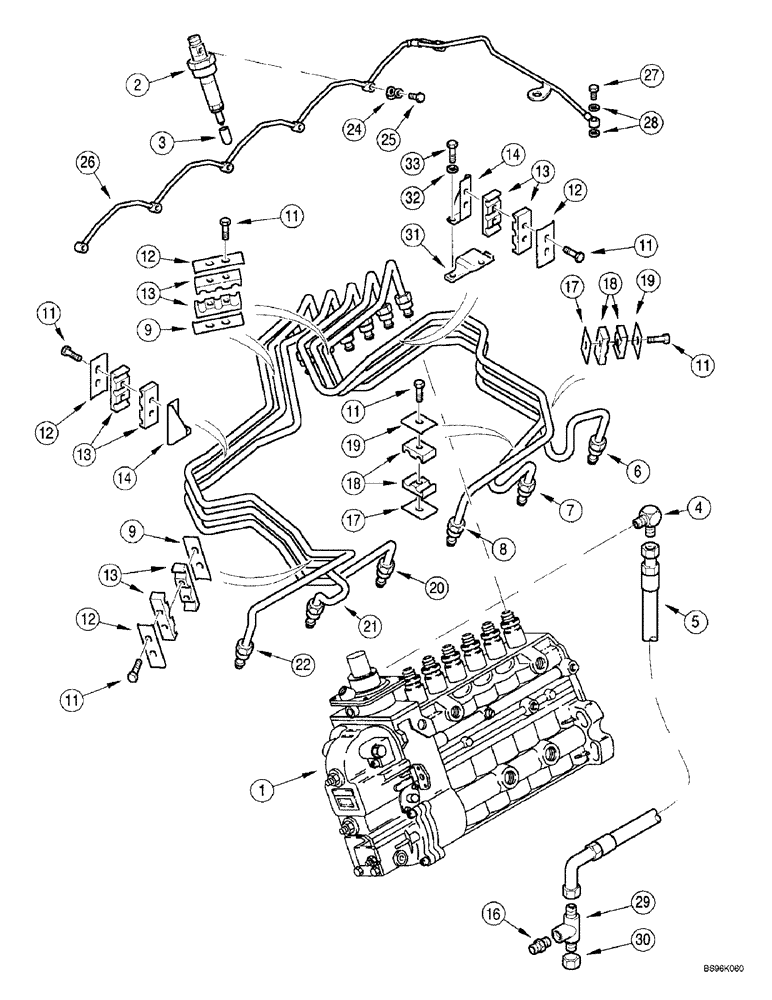

Запчасти Case IH 2144 (3-03A) - FUEL INJECTION SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (02) - FUEL SYSTEM

1

J929601

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, with aneroid, parts list Figure 3-7A

1шт.

1

JR929601

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

JC929601

CORE-INJECTION PUMP

Return Number

1шт.

2

J929490

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, parts list Figure 3-8

6шт.

2

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION PUMP

6шт.

3

J906659

SEAL

SEAL - injector nozzle, 7 mm njector tip

6шт.

4

A77512

ELBOW

ELBOW - 90 degree

1шт.

5

J918536

FLEXIBLE HOSE,295.00 mm

Flexible, Front Block To Injection Pump

1шт.

6

J932025

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973.3 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J928475

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J928476

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

3шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

12шт.

12

J904519

SUPPORT

BRACE - tube retaining

5шт.

13

J917747

CLAMP

CLAMP - fuel tube

10шт.

14

J933301

BRACE

BRACKET - fuel tube (Replaces bracket J930772)

2шт.

16

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE - hex, 1/8 PT x 1-1/16 inch

1шт.

17

J917717

BRACE

BRACKET - fuel tube

2шт.

18

J917746

CLAMP

CLAMP - fuel tube

4шт.

19

CURJ904711

CLAMP

BRACKET - fuel tube

2шт.

20

J928477

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 973 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J928478

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 373, 337 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J928479

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 461, 337 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

SEAL - connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

26

J928441

MANIFOLD

MANIFOLD - fuel drain

1шт.

27

J924726

BANJO BOLT

VALVE - check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

WASHER - sealing, banjo fitting

2шт.

29

J924346

TEE

TEE - oil pressure

1шт.

30

218-752

CAP,37 Degree, 7/16"-20

CAP, , Hex 37º, 7/16"-20

1шт.

31

J931038

BRACKET

BRACE - fuel, tube bracket

1шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, special

1шт.
