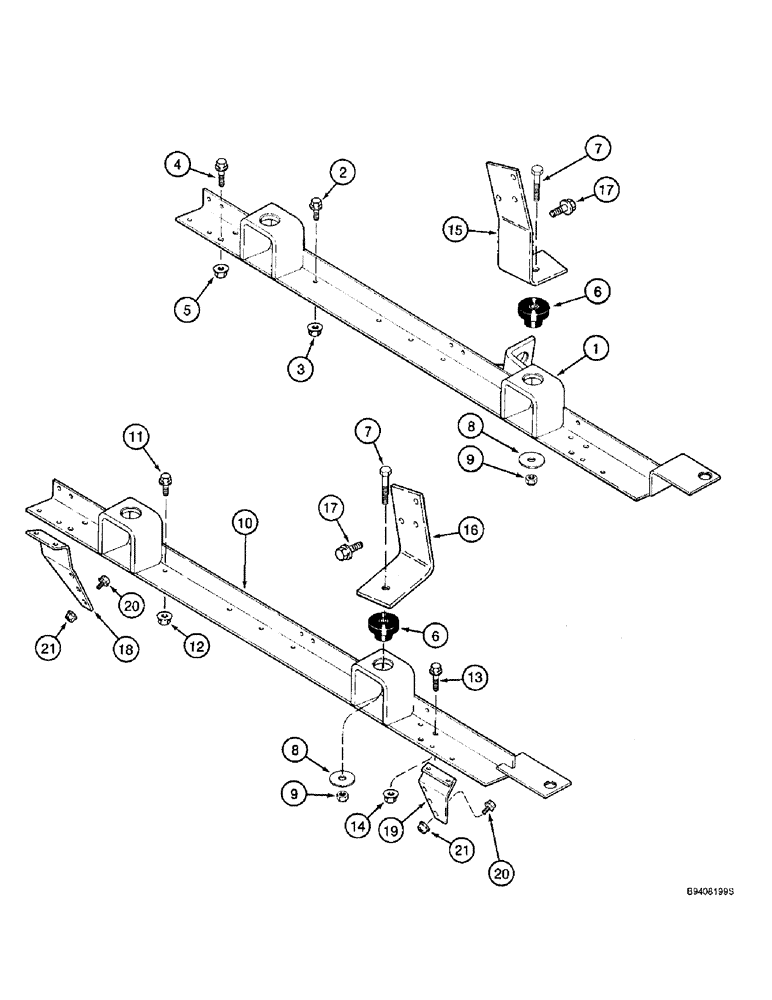

Запчасти Case IH 2144 (2-54) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

1

1315653C4

RAIL ASSY.

SUPPORT - engine rail, left-hand

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber, front and rear

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

8

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

9

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

10

1315654C4

RAIL ASSY.

SUPPORT - engine rail, right-hand

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

1329705C1

SUPPORT

- engine, left-hand front

1шт.

16

1329706C1

SUPPORT

- engine, right-hand front

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

6шт.

18

1330098C2

SUPPORT

- engine, right-hand rear

1шт.

19

1330099C2

SUPPORT

- engine, right-hand front

1шт.

21

231-5146

FLANGE NUT,3/8"-16

10шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

10шт.
