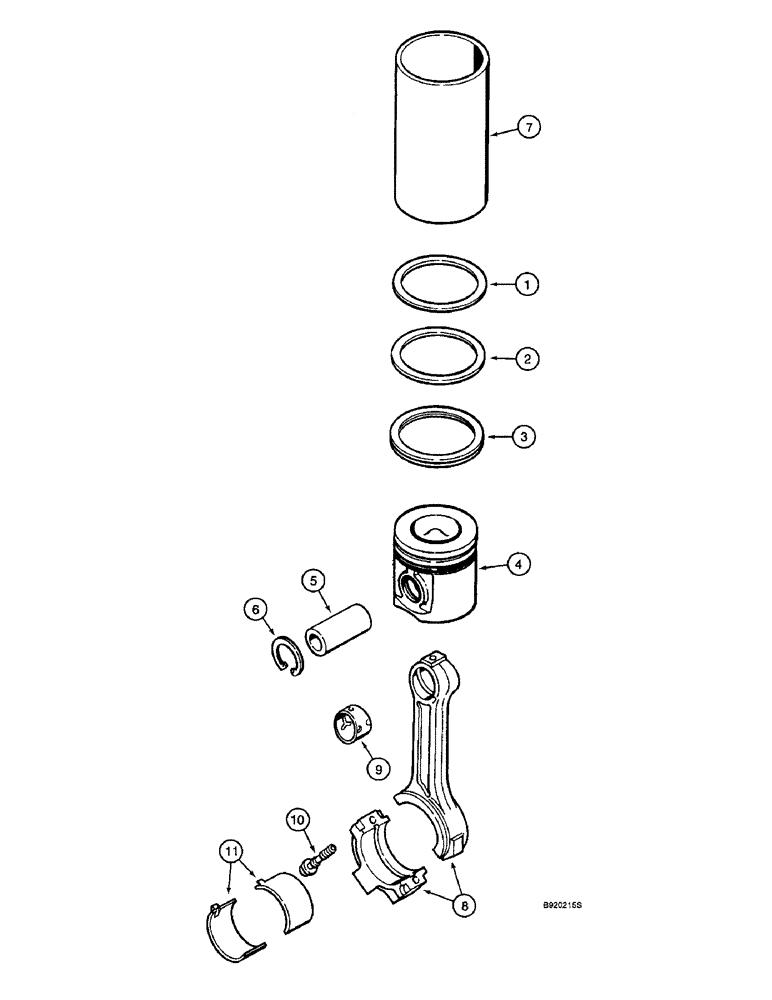

Запчасти Case IH 2144 (2-50) - PISTON AND CONNECTING ROD, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (01) - ENGINE

A77813

PISTON

KIT - piston, standard, Includes: Ref. 1 - 6

6шт.

A77727

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77814

PISTON

KIT - piston, 0.5 mm oversize, Includes: Ref. 1 - 6

6шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77815

PISTON

KIT - piston, 1.00 mm oversize, Includes: Ref. 1 - 6

6шт.

A77729

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.00 mm oversize

1шт.

5

J919053

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair, when liner is installed, use A77813 piston kit

1шт.

JR925232

ROD

ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC925232

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

6шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 8 - 10

6шт.

84145405R

REMAN-CONNECTING ROD

2144 PRIOR TO COMBINE S/N JJC0173150 (1/95-12/97), Reman For New P/N J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting, includes both halves

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

ITEM #9 J901085 subs to J941476. J941476 does not use the lube hole in the top of the bushing. Lube grooves are cut in the ID of the bushing to provide lubrication. TS - TSG 06/01

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

6шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

6шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

6шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

6шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

6шт.
