(2-45A) - ENGINE ATTACHING PARTS, OIL FILL TUBE AND DIPSTICK, OIL DRAIN SYS, COMBINE S/N JJC0173150 AND AFT

Запчасти Case IH 2144 (2-45A) - ENGINE ATTACHING PARTS, OIL FILL TUBE AND DIPSTICK, OIL DRAIN SYS, COMBINE S/N JJC0173150 AND AFT (01) - ENGINE

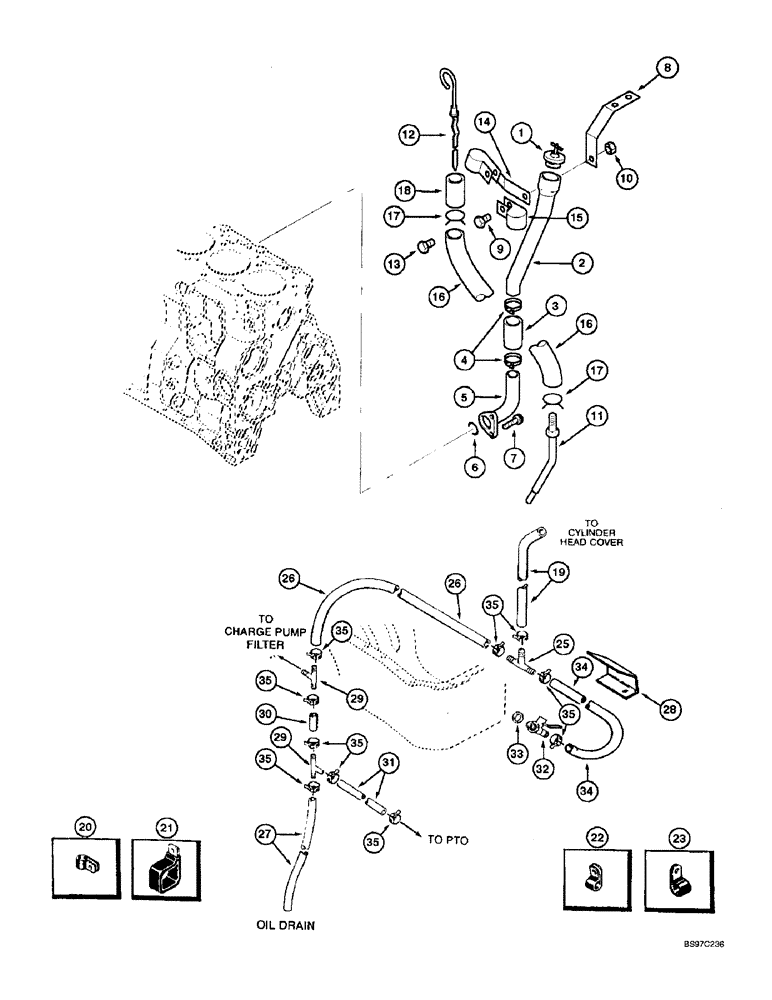

Схема запчастей Case IH 2144 - (2-45A) - ENGINE ATTACHING PARTS, OIL FILL TUBE AND DIPSTICK, OIL DRAIN SYS, COMBINE S/N JJC0173150 AND AFT (01) - ENGINE
23
2
34
15
21
33
27
25
29
17
29
22
7
13
26
8
30
35
35
3
16
34
35
31
20
6
35
14
28
16
35
35
17
12
10
18
1
5
11
9
4
19
35
32
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J930880

TUBE,38.1 mm OD x 151.5, 92 mm L

- oil fill, upper

1шт.

3

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill 1.50 mm ID x 84.00 mm

1шт.

4

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

CLAMP - adjustable, 1-5/16 - 2-1/4 inch diameter

2шт.

5

J917570

TUBE,38.1 mm OD x 372.7 mm L

- oil filler, lower

1шт.

6

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 1-1/2 inch (38 mm) ID

1шт.

7

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

8

J930879

TUBE

BRACKET - support, to fuel filter bracket tube

1шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm

1шт.

10

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

1шт.

11

J908308

TUBE,9.52 mm OD x 124.1, 44 mm L

- dipstick

1шт.

12

J907680

DIPSTICK

- oil level

1шт.

13

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

14

J914644

BRACE

- tube, oil dipstick

1шт.

15

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type 1 1/2", Insul, 1/2" Bolt

1шт.

16

J279239

TUBE

- oil dipstick

1шт.

17

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

2шт.

18

J905802

FITTING,9.53 mm OD x 39 mm L

CAP - oil dipstick tube

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 26 inch (660 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

20

515-30222

CLAMP,7/8", 1/2" Bolt

P-type, Oil drain system 7/8", 1/2" Bolt

3шт.

21

1301387C2

CLIP

CLAMP - square, 2 inch ID, oil drain system

1шт.

22

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type, Oil drain system 1 7/8", Insul, 1/2" Bolt

2шт.

23

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type, Oil drain system 1 1/4", Insul, 7/16" Bolt

2шт.

24

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC, Not shown, Oil drain system

1шт.

25

1977169C1

TEE

- oil drain system

1шт.

26

1329977C2

HOSE,15.75 mm ID x 840.00 mm

Breather, Intermediate, Oil Drain System; Order 1977295C1, and Cut to Required Length; See Below 15.75 mm ID x 840.00 mm

1шт.

27

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

HOSE, , Breather, Lower, Cut From 1977295CX Bulk Hose Below, Oil Drain System 15.75 mm ID x 1550.00 mm

1шт.

28

1977220C1

ANGLE

BRACKET - oil drain shield, oil drain system

1шт.

29

1977169C1

TEE

- oil drain system

2шт.

30

1347070C2

HOSE,15.75 mm ID x 75.00 mm

- drain, 3 inch (75 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

31

1977294C3

HOSE

- PTO drain, 22-7/8 inch (580 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

32

1330429C1

DRAIN VALVE

VALVE - oil drain system

1шт.

33

J920773

SEALING WASHER

WASHER - sealing, drain plug, oil drain system

1шт.

34

1329978C3

HOSE

- oil drain, 18-1/8 inch (430 mm) long, oil drain system

1шт.

35

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Retaining, Not shown, Oil drain system #24

13шт.

1977295CX

LARGE HOSE

HOSE - bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long, oil drain system

1шт.
