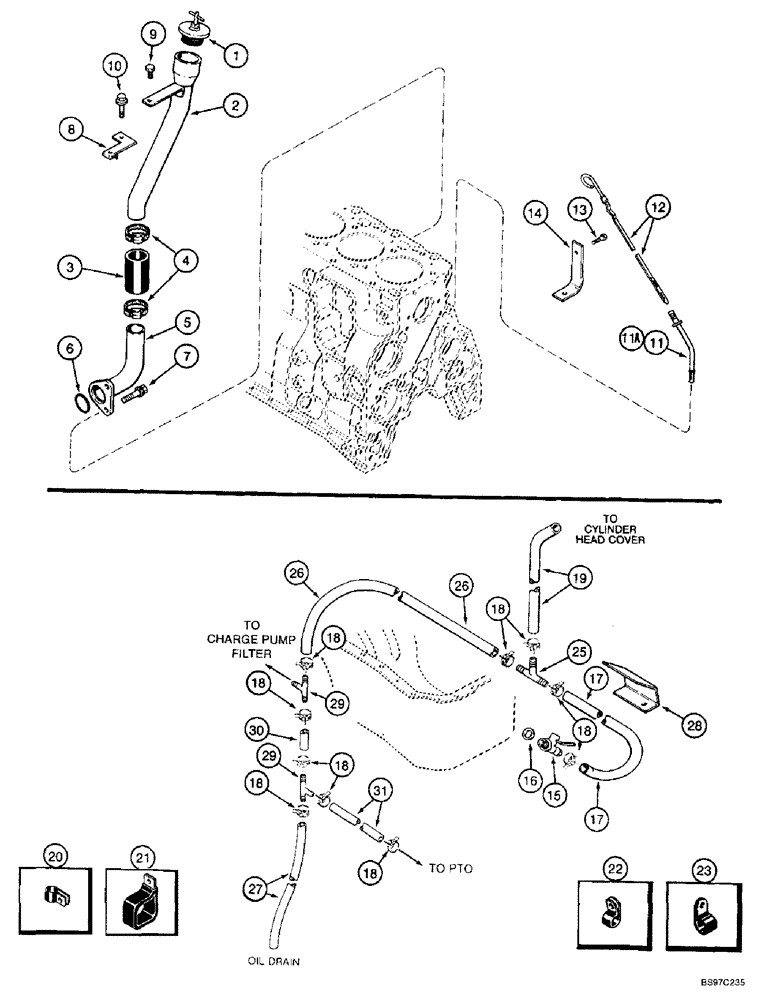

Запчасти Case IH 2144 (2-44) - ENGINE ATTACHING PARTS, OIL FILL TUBE AND DIPSTICK, OIL DRAIN SYS, PRIOR TO COMBINE S/N JJC0173150 (01) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J912689

TUBE,38.1 mm OD x 371.1 mm L

- oil fill, upper

1шт.

3

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill 1.50 mm ID x 84.00 mm

1шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

2шт.

5

J912687

TUBE,38.1 mm ID x 195.9 mm L

- oil fill, lower

1шт.

6

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 1-1/2 inch (38 mm) ID (Replaces O-ring J906704)

1шт.

7

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

8

J912683

TUBE

BRACKET - support, upper oil fill tube

1шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

10

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

1шт.

11

J279239

TUBE

- oil dipstick

1шт.

11a

J908308

TUBE,9.52 mm OD x 124.1, 44 mm L

- dipstick

1шт.

12

J907680

DIPSTICK

- oil level

1шт.

13

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

14

J914644

BRACE

- tube, oil dipstick

1шт.

15

1330429C1

DRAIN VALVE

VALVE - oil drain, system

1шт.

16

J920773

SEALING WASHER

WASHER - sealing, drain plug, oil drain system

1шт.

17

1329978C3

HOSE

- oil drain, 18-1/8 inch (430 mm) long, oil drain system

1шт.

18

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Retaining, Oil drain system #24

13шт.

19

NSS

NOT SOLD SEPARAT

HOSE - crankcase breather, 26 inch (660 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

20

515-30222

CLAMP,7/8", 1/2" Bolt

P-type, Oil drain system 7/8", 1/2" Bolt

3шт.

21

1301387C2

CLIP

CLAMP - square, 2 inch ID, oil drain system

1шт.

22

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type, Oil drain system 1 7/8", Insul, 1/2" Bolt

2шт.

23

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type, Oil drain system 1 1/4", Insul, 7/16" Bolt

2шт.

24

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC, Not shown, Oil drain system

1шт.

25

1977169C1

TEE

- oil drain, system

1шт.

26

1329977C2

HOSE,15.75 mm ID x 840.00 mm

Breather, Intermediate, Oil Drain System; Order 1977295C1, and Cut to Required Length 15.75 mm ID x 840.00 mm

1шт.

27

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

HOSE, , Breather, Lower, Cut From 1977295CX Bulk Hose Below, Oil Drain System 15.75 mm ID x 1550.00 mm

1шт.

28

1977220C1

ANGLE

BRACKET - oil drain shield, oil drain system

1шт.

29

1977169C1

TEE

- oil drain, system

2шт.

30

1347070C2

HOSE,15.75 mm ID x 75.00 mm

- drain, 3 inch (75 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

31

1977294C3

HOSE

- PTO drain, 22-7/8 inch (580 mm) long, cut from 1977295CX bulk hose below, oil drain system

1шт.

1977295CX

LARGE HOSE

HOSE - bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long, oil drain system

1шт.
