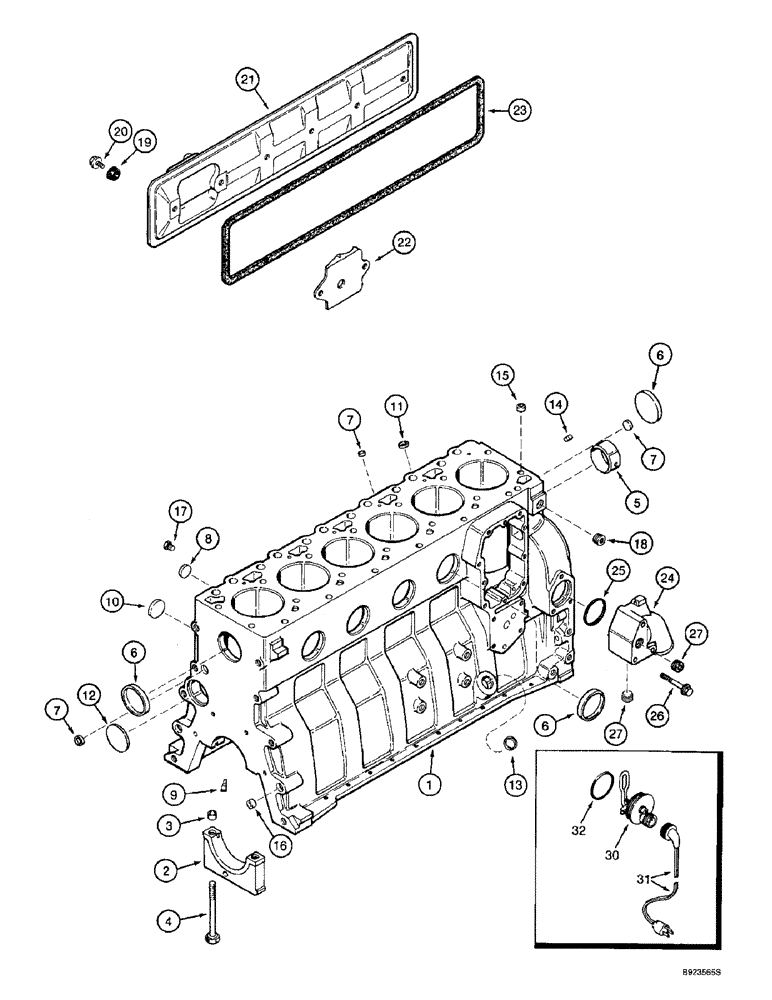

Запчасти Case IH 2144 (2-40) - CYLINDER BLOCK, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (01) - ENGINE

1989148C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 6TA-590, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine 1989097C3

1шт.

196099A1R

REMAN-REPLACEMENT EN

2144 Prior To P.I.N. JJC0173150, Reman For New P/N 1989148C2

1шт.

6TA-590C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

1989097C3

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler.

1шт.

1989097C4R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

1989097C4C

CORE-BASIC ENGINE

Return Part Number

1шт.

J927311

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

Order J920399 hardware kit when ordering J927311 block assembly.

1шт.

JR927311

BLOCK

Block Assembly - short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

AC77761

CORE-ENGINE

Return Part Number use this part number to return short block core for credit when using a remanufactured assembly

1шт.

JR933184

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933184

CORE-SHORT ENGINE

Return Part Number

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, no longer available, Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see figure 2-38, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

Order J920399 hardware kit when ordering J927311 block assembly.

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

13

J920706

PLUG

PLUG - expansion, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

21

J927913

COVER

COVER - tappet (Replaces cover J911822)

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J928832

GASKET

GASKET - tappet cover (Replaces gasket J907617)

1шт.

24

J903103

MANIFOLD

CONNECTION - water inlet

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

26

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

27

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

196803A1

KIT

KIT - engine block heater (Replaces kit A77634), Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 12 volt, order kit 196803A1, engine block heater

1шт.

31

196466A1

ELECTRIC CABLE

CABLE - engine block heater, 6 foot long (Replaces cable J905113), engine block heater

1шт.

32

J910517

O-RING

O-RING - heater sealing, engine block heater

1шт.
