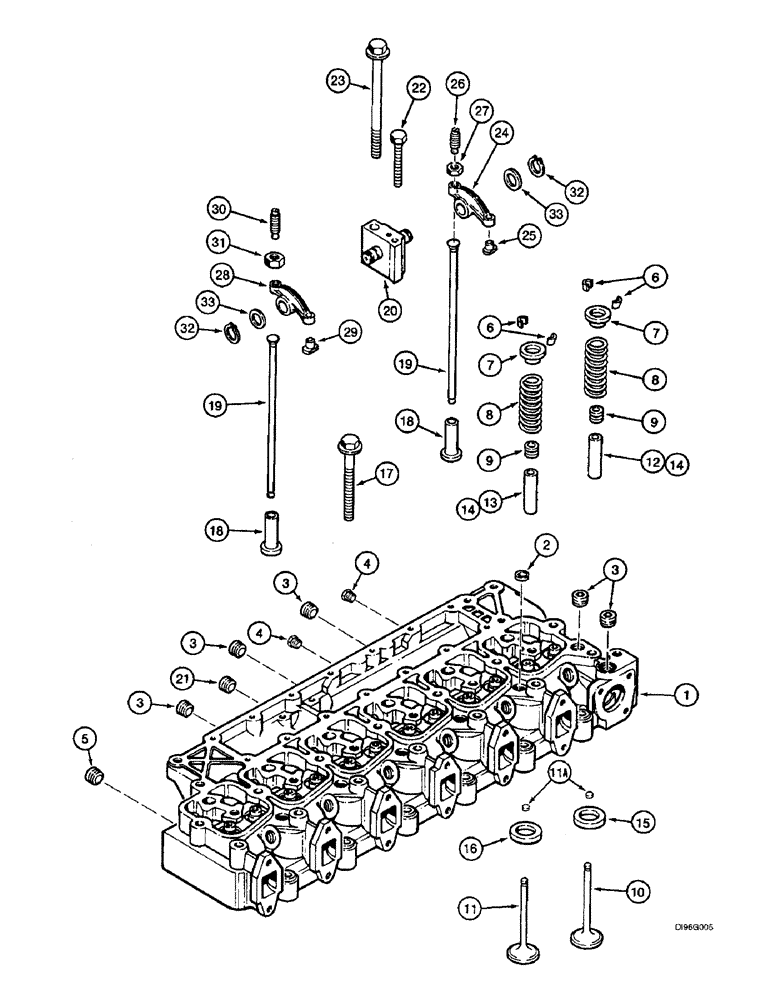

Запчасти Case IH 2144 (2-37A) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 EMIS CERT ENGINE, COMBINE S/N JJC0173150 AND AFTER (01) - ENGINE

JR927301

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component figures shown on this figure do not apply to the remanufactured assembly

1шт.

JC927301

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J927301

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 11

1шт.

1

J930652

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

5шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT, one removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J926700

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve, exhaust

12шт.

10

J920867

VALVE

- intake

6шт.

11

J920868

VALVE

- exhaust

6шт.

11a

J280911

WEAR PAD

PAD - service repair only for valve stem tip

12шт.

12

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

13

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

14

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

12шт.

These parts are semi-finished valve guides.

1шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

14шт.

18

J931623

TAPPET

- valve, push rod

12шт.

19

J923262

PUSH ROD

ROD - push, rocker arm

12шт.

20

J922488

SUPPORT

AND SHAFT - rocker arm

6шт.

21

A77428

PLUG

- hex socket, 1/4 inch PT

2шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

6шт.

24

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 25 - 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, order arm assembly J910811

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

28

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 29 -3 1

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, order arm assembly J910810

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

32

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

33

J900245

WASHER

- thrust, rocker arm

12шт.
