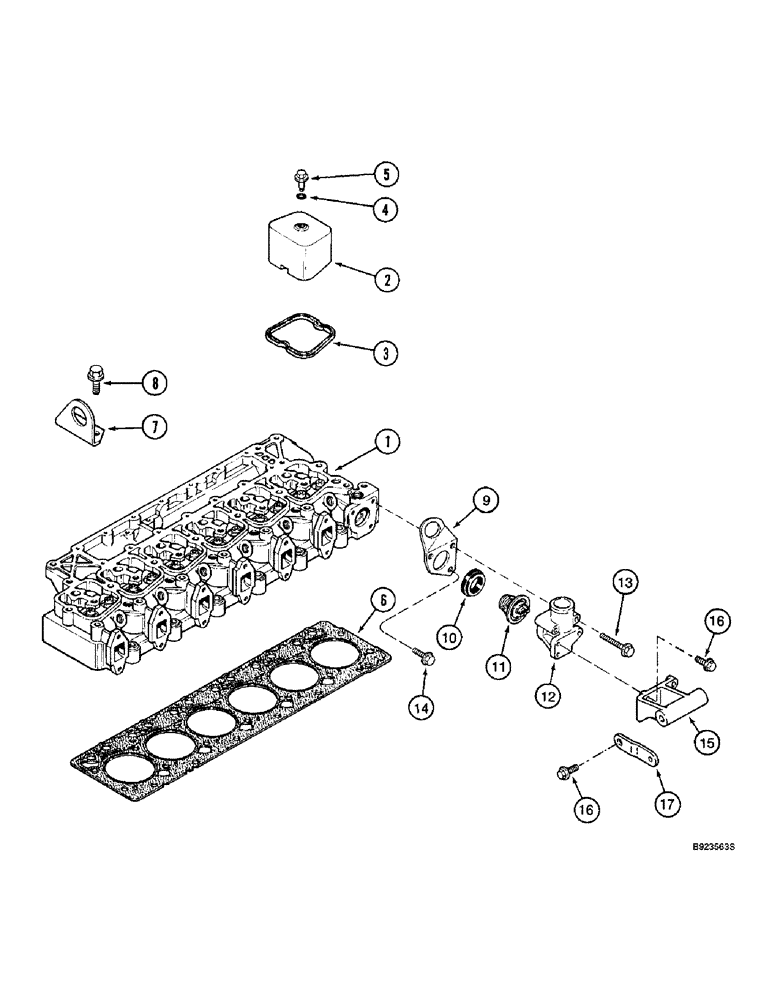

Запчасти Case IH 2144 (2-35A) - CYLINDER HEAD COVERS AND GASKET, THERMOSTAT AND HOUSING, 6TA-590 ECE, COMBINE S/N JJC0173150 AND AFT (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, parts list Figure 2-37A

1шт.

2

J928404

COVER

- rocker arm

6шт.

3

J930906

GASKET

SEAL - rocker arm cover

6шт.

4

J928406

ISOLATOR

- noise, rocker arm

6шт.

5

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

6

J282805

GASKET

- head, standard

1шт.

6

J283000

GASKET

- head, 1 notch, 0.25 mm overthick

1шт.

6

J283002

GASKET

- head, 2 notches, 0.50 mm overthick

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, Thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, thermostat and housing Includes: Ref. 10, 11

1шт.

10

J923331

GASKET

- thermostat housing

1шт.

11

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, order kit A77736, thermostat and housing

1шт.

12

J914409

HOUSING

- thermostat, and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J917484

BRACE

SUPPORT - alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

4шт.

17

J910924

PLATE

BRACE - alternator mounting, thermostat and housing

1шт.
