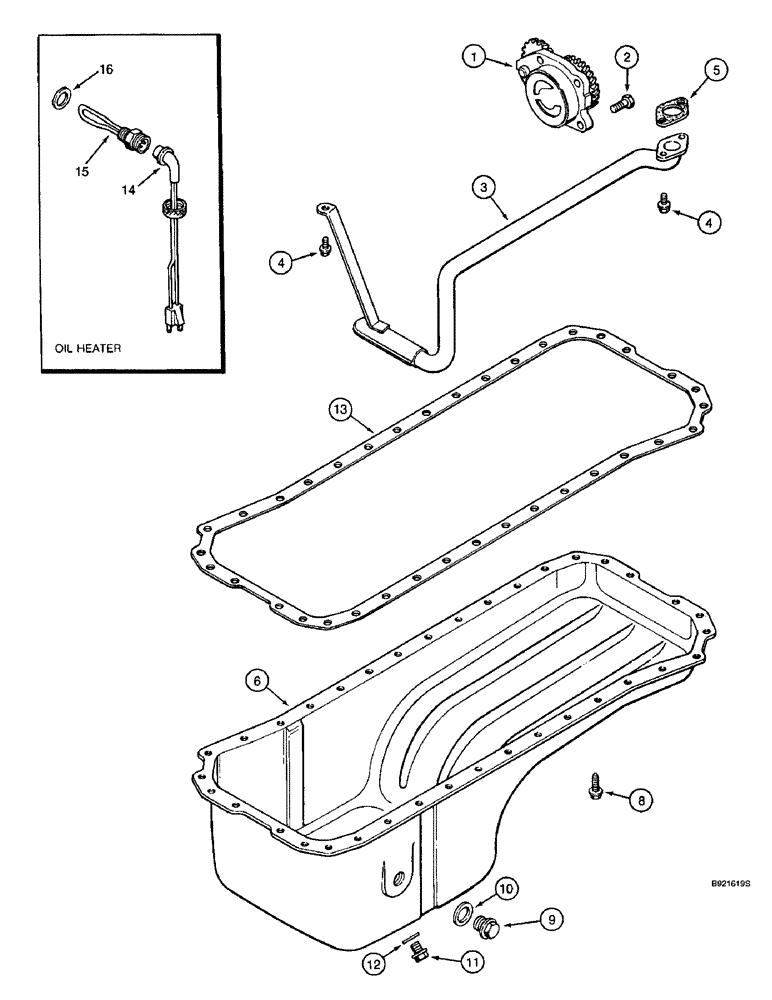

Запчасти Case IH 2144 (2-32) - OIL PUMP, PAN AND HEATER, 6TA-590 ENGINE, 6TA-590 EMISSIONS CERTIFIED ENGINE (01) - ENGINE

JR930337

REMAN-ENG OIL PUMP

PUMP - oil, North America only (Replaces remanufactured pump JR930337)

1шт.

JC930337

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly (Replaces return number JC926203)

1шт.

1

J930337

PUMP, ENGINE OIL

PUMP ASEMBLY - oil, engine, new (Replaces pump J926203)

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J909373

TUBE

- with screen, oil suction

1шт.

4

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

3шт.

5

J914383

GASKET

- mounting, oil suction tube

1шт.

Part of kit P/N A77676.

1шт.

6

J915703

PAN, ENGINE OIL

PAN - oil, engine

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm

36шт.

9

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

11

J924147

PLUG,M18 x 1.5

- hex magnetic, special, 12 mm - 1.5

1шт.

12

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of oil pan gasket kit P/N A77676.

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order kit A77676 shown below

1шт.

Part of kit P/N A77676.

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan, includes: Ref. 5, 12 and 13

1шт.

A77490

KIT

- heater, engine oil, also order item 16, washer J902425, Includes: Ref. 14 and 15

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must also be ordered.

1шт.

14

196466A1

ELECTRIC CABLE

CABLE - engine block heater, 6 foot long (Replaces cable J905113)

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, order kit A77490

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must also be ordered.

1шт.
