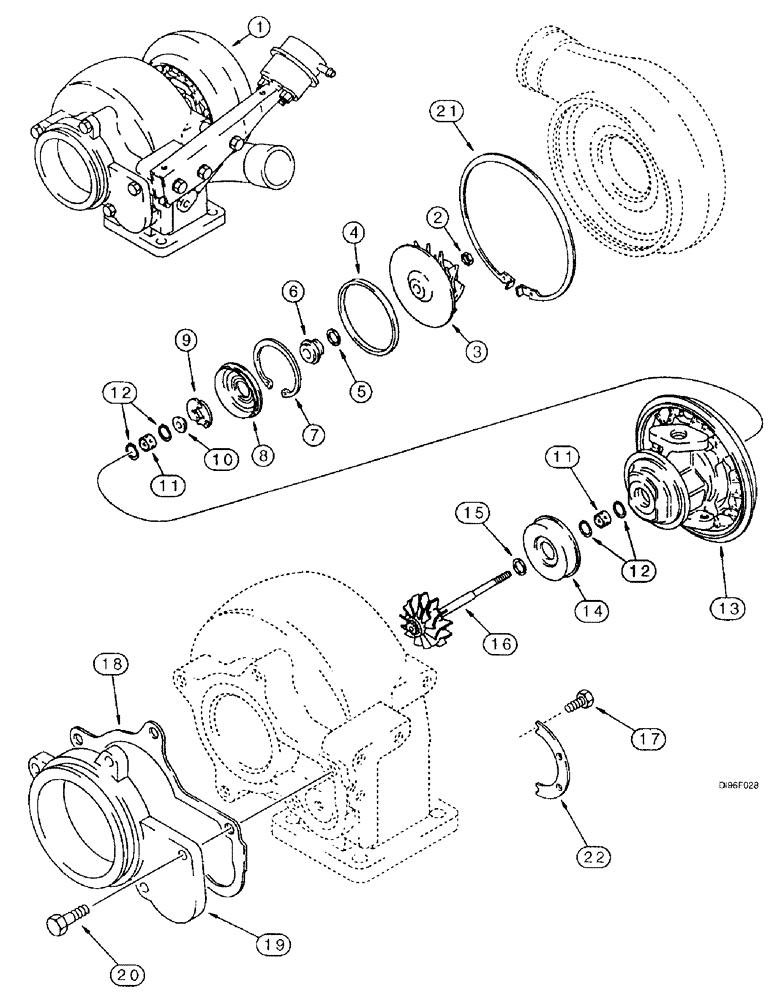

Запчасти Case IH 2144 (2-29A) - TURBOCHARGER ASSEMBLY, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (01) - ENGINE

1

J536319

TURBOCHARGER

ASSEMBLY - engine, new, no longer available, order turbocharger kit J802695 below, Includes: P/N J537817 and Includes: Ref. 2 - 22

1шт.

1

JR536319

REMAN-TURBOCHARGER

Turbocharger Assembly - engine, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order remanufactured kit JR802695 below

1шт.

1

JC536319

CORE-TURBOCHARGER

Return Part Number use this part number to return turbocharger core for credit when using a remanufactured assembly, no longer used

1шт.

J537817

HOUSING

CENTER HOUSING ASSEMBLY - turbocharger, Includes: Ref. 2 - 16 and parts in Fig. 29C

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - O-ring

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - bearing turbine

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbine heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR AND SHAFT - turbocharger

1шт.

17

J759917

SET SCREW

SCREW - set, hex head

6шт.

Part of P/N J575169 Turbocharger Overhaul Kit

1шт.

18

J535001

GASKET,0.25mm Thk

- adapter

1шт.

19

J527759

ADAPTER

- connection

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

5шт.

21

J533163

SNAP RING

RING - retaining

1шт.

22

J532637

PLATE

- clamping

2шт.

J802695

TURBOCHARGER

KIT turbocharger with gasket, Includes Ref. 1 and one each of turbocharger mounting gasket J709861 and turbo oil drain tube gasket J519807, not shown.

1шт.

JR802695

REMAN-TURBOCHARGER

KIT remanufactured turbocharger with gasket, includes remanufactured turbocharger, JR536319 and one each of turbocharger mounting gasket J919369 and turbo oil drain tube gasket J931350, not shown.

1шт.

JC536319

CORE-TURBOCHARGER

Return Part Number

1шт.

J575169

REPAIR KIT

KIT overhaul, turbocharger, Includes Ref. 2, 4, 5, 7, 8, 9, 11, 12, 15 and 17

1шт.
