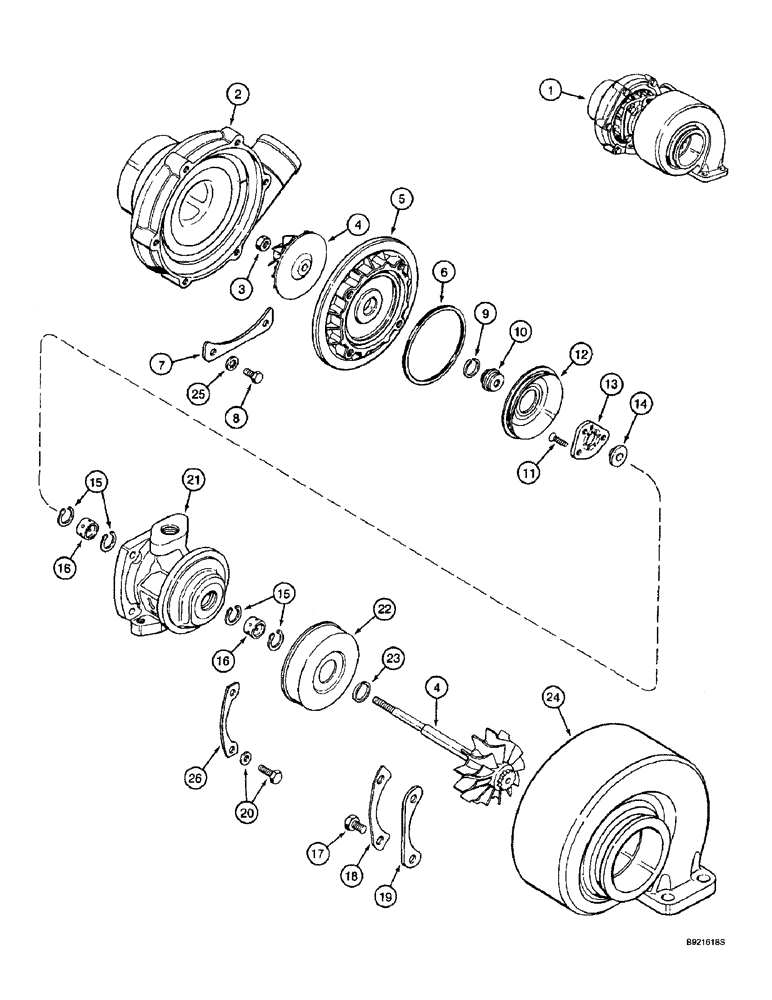

Запчасти Case IH 2144 (2-28) - TURBOCHARGER ASSEMBLY, 6TA-590 ENGINE, PRIOR TO COMBINE S/N JJC0173150 (01) - ENGINE

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes: Ref. 2 - 26

1шт.

1

JR802289

REMAN-TURBOCHARGER

2144 Prior To P.I.N. JJC0173150, Reman For New P/N J919113

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR907028

REMAN-TURBOCHARGER

Turbocharger Assembly - engine, remanufactured, Component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC907028

CORE-TURBOCHARGER

Return Part Number - use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW - cap

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - slit ring compressor

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - flat head Torx

3шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT - hex

4шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston ring, turbine

1шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - lock

8шт.

Part of P/N J545652 Turbocharger Overhaul Kit

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

J545652

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes Ref. 3, 6, 8, 9, 11, 13, 15 - 18, 20, 23 and 25, Replaces kit J904772

1шт.
