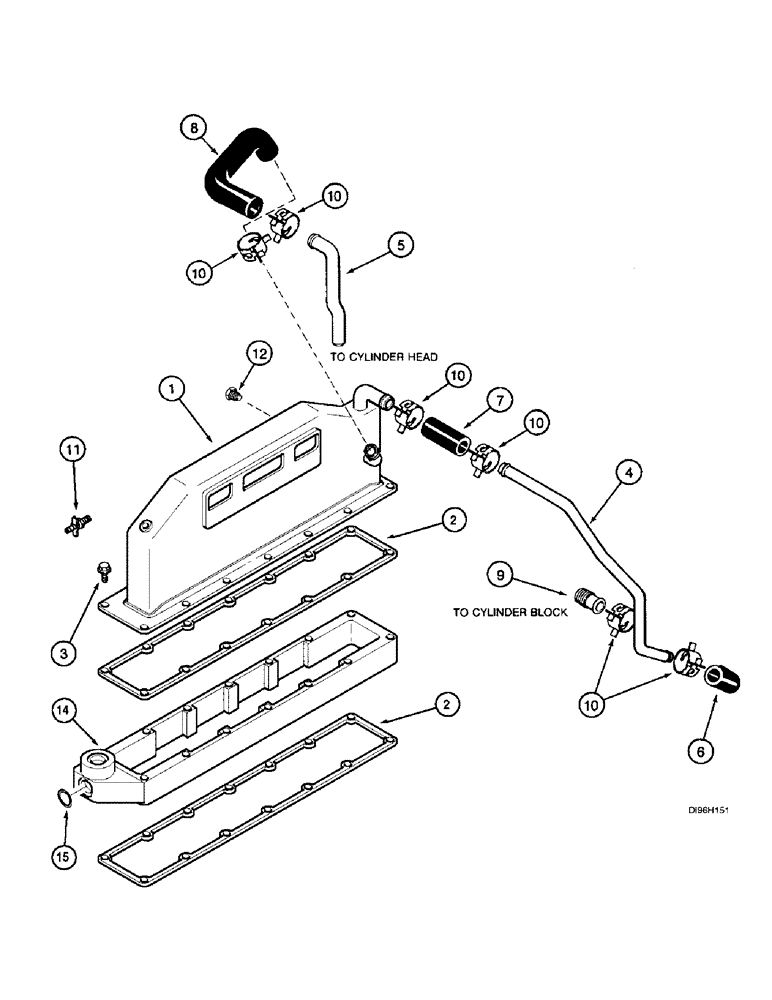

Запчасти Case IH 2144 (2-25A) - AFTERCOOLER, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (01) - ENGINE

1

J928503

AFTERCOOLER

- air intake

1шт.

2

J914029

GASKET

- mounting

2шт.

3

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

BOLT - hex flange, special, 8 x 50 mm

14шт.

4

J927956

TUBE,19.05 mm OD x 473.6 mm L

- aftercooler return

1шт.

5

J926446

TUBE,19.05 mm OD x 154.6 mm L

- aftercooler supply

1шт.

6

J928492

TUBE

HOSE - elbow, return, Serial Range: block-tube

1шт.

7

J918611

HOSE,18.50 mm ID x 63.00 mm

Tube to Aftercooler 18.50 mm ID x 63.00 mm

1шт.

8

J926447

HOSE,18.50 mm ID x 132.40 mm

Formed, Aftercooler to Tube 18.50 mm ID x 132.40 mm

1шт.

Ref. 8 J926447 : New 6TA-590 emissions engine appears to use J928492 tube. Tube J926447 is used on non-emission

1шт.

9

J907167

SPLINED COUPLING

COUPLING -, Serial Range: block-hose

1шт.

10

J918163

CLIP

CLAMP - spring type, aftercooler, Serial Range: hoses-tubes

6шт.

11

J909394

COCK, DRAIN

VALVE - drain, air bleed

1шт.

12

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT, installed in aftercooler drain

1шт.

13

J910778

DECAL

- Caution, open during fill, Fig. 9H-40

1шт.

14

J928464

SPACER

ASSEMBLY - aftercooler

1шт.

15

J900956

PLUG

- expansion, 18 mm OD

1шт.
