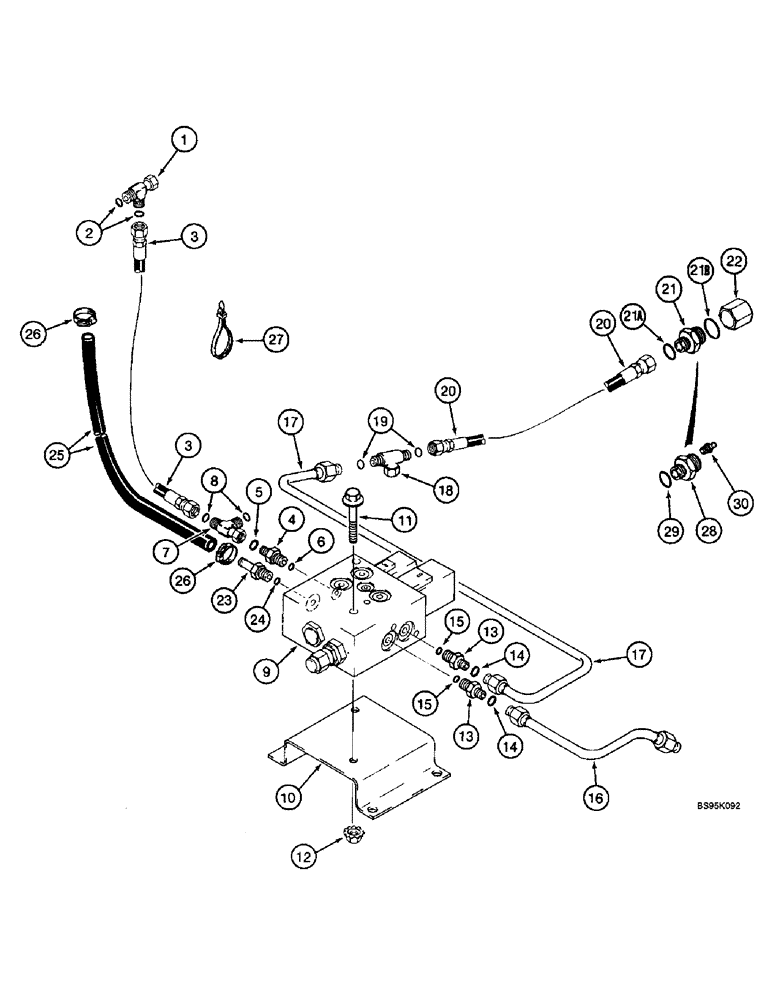

Запчасти Case IH 2144 (7-10) - PARKING BRAKE AND TOW VALVE HYDRAULIC SYSTEM (5.1) - BRAKES

1

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

- 13/16-16 inch face branch x face x swivel face

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

128039A2

FLEXIBLE HOSE

HOSE - valve supply, 91-3/4 inch (2330 mm) long

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

238-6006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1шт.

7

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

- 11/16-16 inch face seal branch x face x swivel face, used with 2 speed drive motor only, Includes: Ref. 8

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

129010A3

VALVE

ASSEMBLY - parking brake and feeder clutch, parts list figure8-34

1шт.

10

128293A1

SUPPORT

BRACKET - mounting, valve

1шт.

11

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm

2шт.

12

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

13

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 14 and 15 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

177158A2

TUBE

- parking brake, right-hand

1шт.

17

177159A2

TUBE

- parking brake, left-hand

1шт.

18

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

- 11/16-16 inch swivel face seal branch x face seal x face seal, Includes: Ref. 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

129239A2

HOSE

- to tow valve, 100 inch (2540 mm) long

1шт.

128672A1

FITTING

VALVE ASSEMBLY - tow, no longer used, order 128672A2 valve assembly, Includes: Ref. 21 - 22

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 128672A1

1шт.

21b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - valve, order valve assembly 128672A1

1шт.

23

217-386

FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB

ADAPTER - straight, 3/8 stem end x 3/4-16 inch adjustable O-ring

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

128042A3

HYDRAULIC HOSE,9.52 mm ID x 1830.00 mm

- Brake valve return, Cut from S118400X bulk hose below 9.52 mm ID x 1830.00 mm

1шт.

Part of HOSE,P/N S118400X

1шт.

26

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

27

702093C1

CABLE TIE

STRAP - tie, nylon

1шт.

128672A2

VALVE

VALVE ASSEMBLY - tow, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 128672A2

1шт.

30

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16 drive type x 19/32 inch

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long, includes Ref. 25 above

1шт.

125829A1

PRESSURE SWITCH

park brake pressure

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
