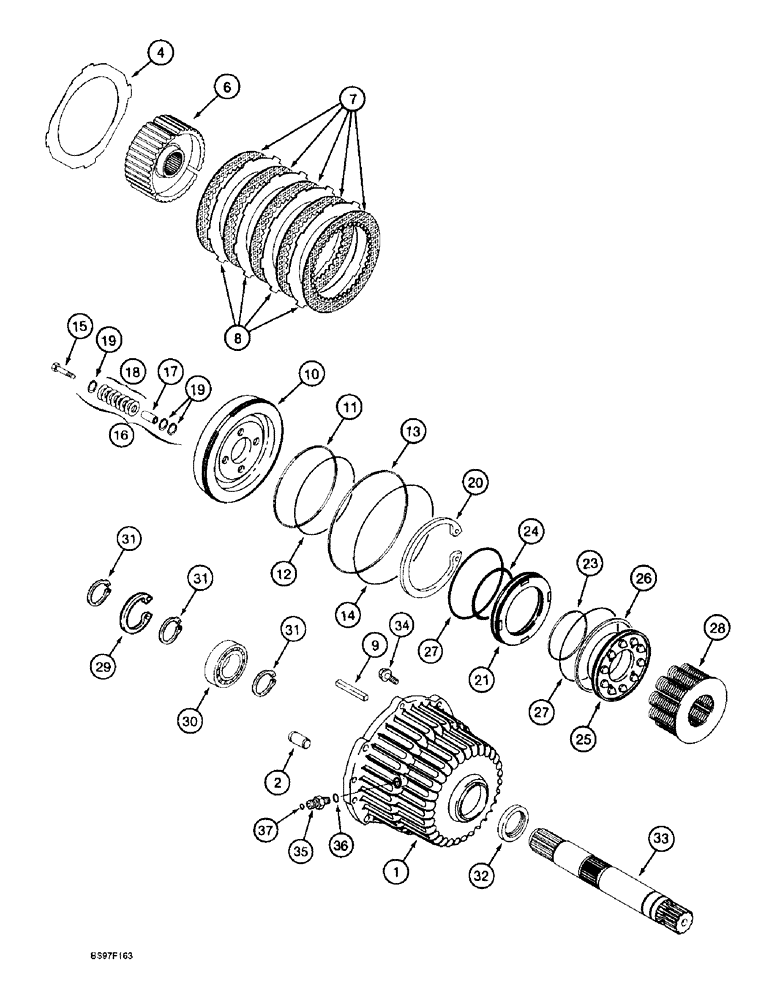

Запчасти Case IH 2144 (7-07A) - MASTER BRAKES, COMBINE P.I.N. JJC0173150 AND AFTER (5.1) - BRAKES

236388A1

BRAKE ASSY.

BRAKE ASSEMBLY - master, Includes: Ref. 1 - 37

2шт.

236388A1R

REMAN-BRAKE ASSY.

Remanufactured BRAKE ASSEMBLY, Wet Brakes

2шт.

236388A1C

CORE-BRAKE ASSY.

Return Number

2шт.

1

1997395C1

HOUSING

- brake

1шт.

2

837-16030

DOWEL,16mm OD x 30mm L

Hardened M16 x 30

2шт.

4

NSS

NOT SOLD SEPARAT

SHIM - brake housing, 0.5 mm hick

2шт.

Part of P/N 221598A1 Shim and Spacer Kit

1шт.

4

NSS

NOT SOLD SEPARAT

SHIM - brake housing, 1.062 mm thick

2шт.

Part of P/N 221598A1 Shim and Spacer Kit

1шт.

6

1997394C1

HUB

- brake

1шт.

7

1997959C1

BRAKE DISC

DISC - brake, friction

12шт.

8

1285974C1

BRAKE PLATE

PLATE - separator

13шт.

9

NSS

NOT SOLD SEPARAT

SPACER - separator

8шт.

Part of P/N 221598A1 Shim and Spacer Kit

1шт.

10

1997398C1

PISTON

- service brake

1шт.

11

1997617C4

SEAL,179.2mm ID x 183mm OD x 3.3mm Thk

- piston, inner

1шт.

12

238-7168

O-RING,0.103" Thk x 7.237" ID, -168, Cl 7, 75 Duro

1шт.

13

1997616C4

SEAL,227.1mm ID x 231mm OD x 3.3mm Thk

- piston, outer

1шт.

14

238-7174

O-RING,0.103" Thk x 8.737" ID, -174, Cl 7, 75 Duro

1шт.

15

828-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

- hex, 8 - 1.25 x 70 mm, class 10.9

4шт.

16

1997900C1

SPRING

ASSEMBLY - piston return, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

SPACER - spring retainer, order 1997900C1

1шт.

18

1997912C1

BELLEVILLE WASHER

- piston return

8шт.

19

100-1462

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

3шт.

20

102-22625

SNAP RING,#625, 6.474", Int, Spiral

RING - internal spiral retaining, No. 625, reaction piston

1шт.

21

1997399C1

PISTON

- reaction

1шт.

23

1997619C4

RING,108.2mm ID x 112mm OD x 3.3mm Thk

SEAL - reaction piston, outer

1шт.

24

238-7157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

1шт.

25

1997400C1

PISTON

- parking brake

1шт.

26

1997618C4

SEAL,151.1mm ID x 155mm OD x 3.3mm Thk

- parking brake piston, outer

1шт.

27

238-7162

O-RING,0.103" Thk x 5.737" ID, -162, Cl 7, 75 Duro

2шт.

28

1997999C2

SPRING

- return, parking brake

1шт.

29

101-21393

SNAP RING,#393, 4.234", Int

RING - internal retaining, No. 393, bearing to housing

1шт.

30

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

BEARING - ball, output shaft

1шт.

31

358059R1

SNAP RING

RING - snap, Serial Range: bearing-shaft

3шт.

32

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

- oil

1шт.

33

236378A1

SHAFT

- transmission output

1шт.

34

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

4шт.

35

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

221598A1

SHIM KIT

KIT shim and spacer, Includes Ref. 4 and 9 and instructions

2шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
