Запчасти Case IH 2144 (9F-10) - STRAW CHOPPER, GEAR HOUSING (19) - STRAW SPREADER & CHOPPER

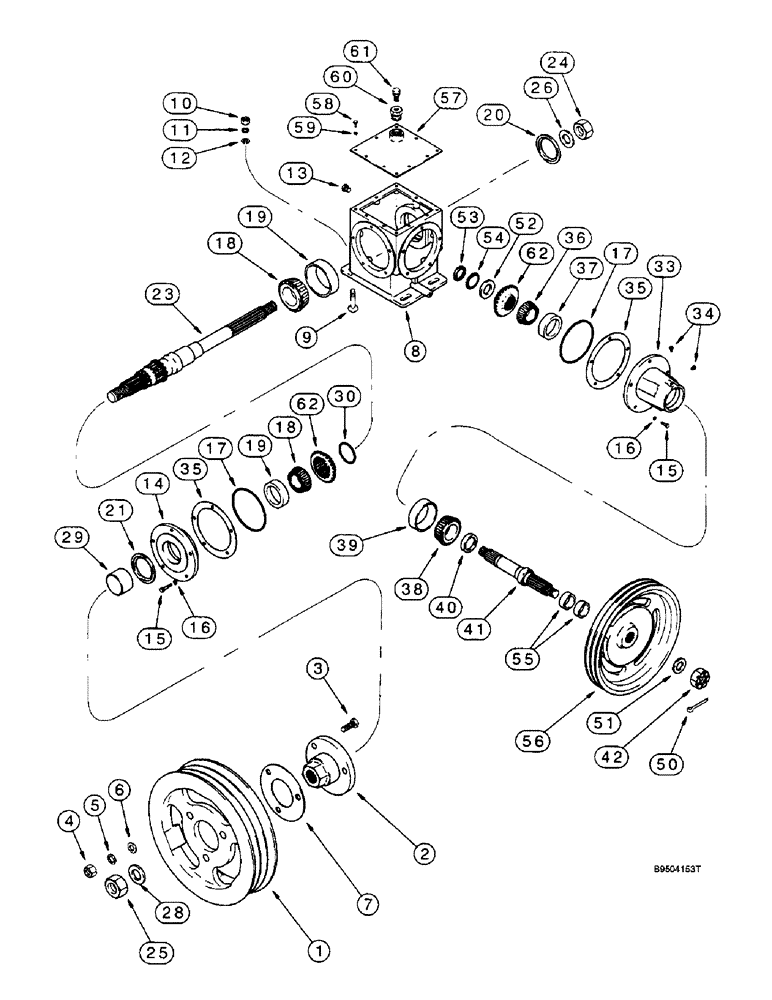

Схема запчастей Case IH 2144 - (9F-10) - STRAW CHOPPER, GEAR HOUSING (19) - STRAW SPREADER & CHOPPER
3
33
50
14
40
35
61
42
4
7
2
5
16
60
10
28
15
51
16
39
53
25
30
12
26
35
6
37
13
17
54
1
21
56
38
57
9
29
24
18
62
11
23
8
17
36
41
15
58
20
59
55
19
34
19
18
62
52

Артикул

Название

Примечание

Количество

1

181271C1

PULLEY

- drive, 15 inch OD

1шт.

2

181211C1

HUB

- drive pulley

1шт.

3

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

- hub

3шт.

4

429-1110

NUT,5/8"-18, G8

3шт.

5

492-21062

LOCK WASHER,5/8"

3шт.

6

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

3шт.

7

181363C1

SHIM

- .06 inch

1шт.

8

181278C1

BEARING HOUSING

HOUSING - jackshaft gear

1шт.

9

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

6шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

12

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

6шт.

13

86568834

PLUG,1/4" - 18 NPT

- hex, 1/4 inch PT

2шт.

14

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

HUB - jackshaft bearing

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

10шт.

16

492-11038

LOCK WASHER,3/8"

10шт.

17

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

-250, 70 Duro, 4.984" ID x .139 Thk

2шт.

18

298029R91

BEARING ASSY,47.63mm ID x 22.23mm W

BEARING - tapered roller

2шт.

19

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

CUP - tapered roller bearing

2шт.

20

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

- jackshaft hub, front

1шт.

21

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

- jackshaft hub, rear

1шт.

23

184394C1

SHAFT

- three splined, separator drive

1шт.

24

232-41316

NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

1шт.

25

231-41120

NUT,1 1/4"-7, GB

NUT - hex, self-locking, 1-1/4 inch NC

1шт.

26

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

1шт.

28

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

- flat, 1-3/8 x 2-1/2 x 1/4 inch, hardened

1шт.

29

181269C1

SPACER

BUSHING - jackshaft, rear

1шт.

1315284C1

PACKAGE

KIT - retaining ring, Includes: Ref. 30

1шт.

30

181255C1

SNAP RING

RING - retaining, 0.102 inch

1шт.

30

181256C1

RING, SNAP

RING - retaining, 0.105 inch

1шт.

30

181257C1

RING, SNAP

RING - retaining, 0.108 inch

1шт.

30

181258C1

RING, SNAP

RING - retaining, 0.111 inch

1шт.

30

181259C1

RING, SNAP

RING - retaining, 0.114 inch

1шт.

30

181260C1

RING, SNAP

RING - retaining, 0.117 inch

1шт.

30

181261C1

RING, SNAP

RING - retaining, 0.120 inch

1шт.

30

181262C1

RING, SNAP

RING - retaining, 0.123 inch

1шт.

30

181263C1

RING, SNAP

RING - retaining, 0.126 inch

1шт.

30

181264C1

RING, SNAP

RING - retaining, 0.129 inch

1шт.

30

181265C1

RING, SNAP

RING - retaining, 0.132 inch

1шт.

30

181266C1

RING, SNAP

RING - retaining, 0.135 inch

1шт.

33

191245C2

HUB

- bell

1шт.

34

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

2шт.

195484C2

SHIM KIT

KIT - shim, rear housing, Includes: Ref. 35

2шт.

35

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

4шт.

35

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

4шт.

35

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

36

ST2071

TAPERED BEARING,34.92mm ID x 23.81mm W

CONE - tapered roller bearing

1шт.

37

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - tapered roller bearing

1шт.

38

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - tapered roller bearing, 1-3/8 inch ID

1шт.

39

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller

1шт.

40

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

- oil

1шт.

41

181195C1

SHAFT

- drive

1шт.

42

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

1шт.

50

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

51

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

52

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

1шт.

53

54-2006

BEARING LOCK NUT,Bearing, 1.1811" Bore

NUT - bearing lock, TN-06

1шт.

54

55-2006

BEARING WASHER,Type TW-106

WASHER, LOCK, , Bearing lock Type TW-106

1шт.

55

181156C1

SPACER

- drive shaft

2шт.

56

1315264C1

PULLEY

- 7 and 14 inch OD, drive, chopper

1шт.

57

181281C1

COVER

- gear housing

1шт.

58

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

59

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

60

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

- 3/4 PT x 3/8 inch female PT

1шт.

61

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

- straight, 3/8 PT x 1-1/2 inch

1шт.

188814C1

BEVEL GEAR

GEAR ASSEMBLY - matched set, drive and driven, cut bevel, if used, Includes: Ref. 62

1шт.

62

NSS

NOT SOLD SEPARAT

GEAR - 24 tooth, order gear assembly

1шт.

62

NSS

NOT SOLD SEPARAT

GEAR - 23 tooth, order gear assembly

1шт.

243333A1

BEVEL GEAR

GEAR ASSEMBLY - matched set, drive and driven, forged bevel, if used, Includes: Ref. 62

1шт.

62

NSS

NOT SOLD SEPARAT

GEAR - driven, 23 tooth, order gear assembly

1шт.

62

NSS

NOT SOLD SEPARAT

GEAR - drive, 24 tooth, order gear assembly

1шт.

Выбрано товаров: 71
