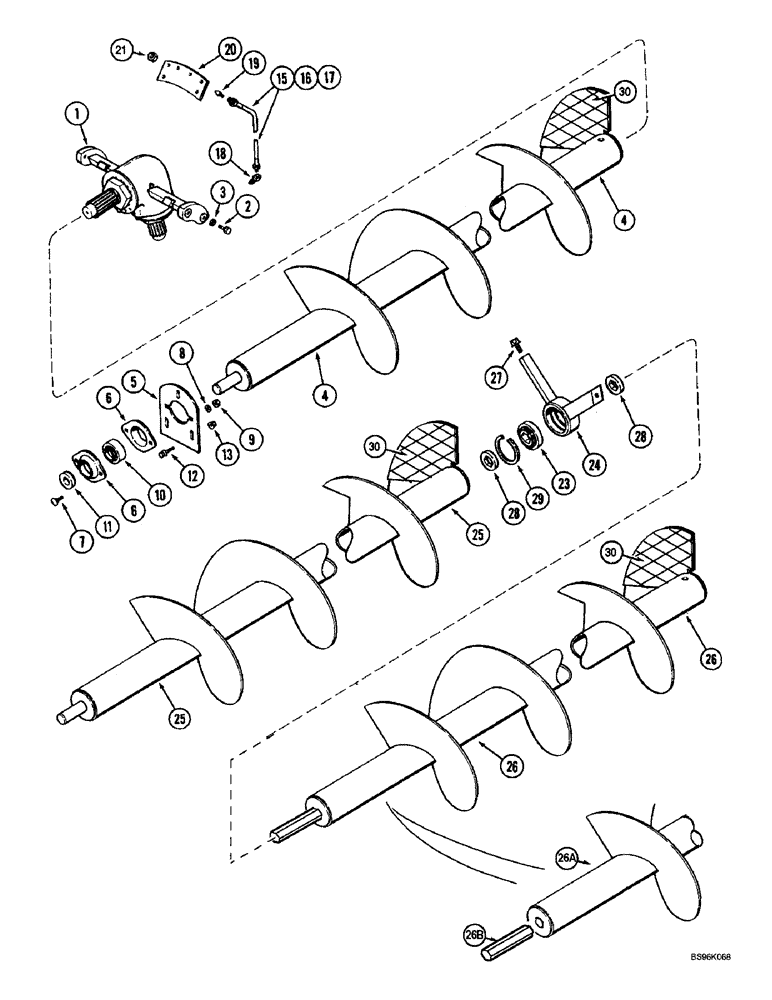

Запчасти Case IH 2144 (9E-26) - UNLOADER, UPPER AUGER (17) - GRAIN TANK & UNLOADER

1

1347351C1

HOUSING

- upper gear, unloader

1шт.

1347351C2R

REMAN-GEARBOX

2144 (1/95-12/97), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

183927A1

AUGER

- unloader, one piece, 136 inch (3454 mm)

1шт.

5

182838C1

SUPPORT

- bearing

1шт.

6

50591

FLANGE,52mm

- bearing

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - ball

1шт.

11

564853R11

COLLAR

- locking, bearing

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

15

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Grease 0.14" ID x 22.00"

2шт.

16

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

17

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

18

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 13/16 inch

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

20

1347449C1

SUPPORT

PLATE - mounting, lubrication hose

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

- special

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball

1шт.

24

1317859C1

SUPPORT

- bearing

1шт.

25

183925A1

AUGER

- unloader, rear split, 172 inch (4369 mm), no longer available, order auger 199018A1 below, see Ref 30 for reinforcement, Serial Range: -JJC0173150,

1шт.

25

199018A1

AUGER

- unloader, rear split, 172 inch (4369 mm), Start Serial: JJC0173150,

1шт.

25

183926A1

AUGER

- unloader, rear split, 208 inch (5283 mm), no longer available, order auger 199023A1 below, see Ref 30 for reinforcement, Serial Range: -JJC0173150

1шт.

25

199023A1

AUGER

- unloader, rear split, 208 inch (5283 mm), Start Serial: JJC0173150

1шт.

26

1989388C2

AUGER

- unloader, front split, 172 inch (4369 mm), no longer available, order items 26A, 26B and 31 - 33, see Ref 30 for reinforcement to JJC0173150

1шт.

26a

198987A1

AUGER

- unloader, front split, 172 inch (4369 mm), Start Serial: JJC0173150

1шт.

26b

220040A1

SHAFT

- connecting, 6 inch (152 mm), Start Serial: JJC0173150

1шт.

Part of auger unloading kit P/N 252280A1

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

28

1277949C1

SPACER

- split auger

4шт.

29

360936R1

RING

- snap

1шт.

30

182587A1

KIT

PACKAGE - unloader, auger reinforcement

1шт.

Used with Ref. 4, 25 - P/N 183925A1 and 26

1шт.

31

220336A1

STIFFENER

GUSSET - rear unloading auger, not shown

1шт.

Part of auger unloading kit P/N 252280A1

1шт.

32

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

BOLT - unloader shear, hex 5/16 NC x 1-1/4 inch, grade 2, not shown

1шт.

33

439-1548

HEADED PIN,7.92mm OD x 76.2mm L

PIN - headed, 5/16 x 3 inch, grade 2, not shown

1шт.

Part of auger unloading kit P/N 252280A1

1шт.

252280A1

PACKAGE

KIT unloading auger, Includes 198994A1 hub, also Ref. 26B, 31 and 33 and instructions, not all items shown

1шт.
