Запчасти Case IH 2144 (9E-24) - UNLOADER, UPPER TUBE (17) - GRAIN TANK & UNLOADER

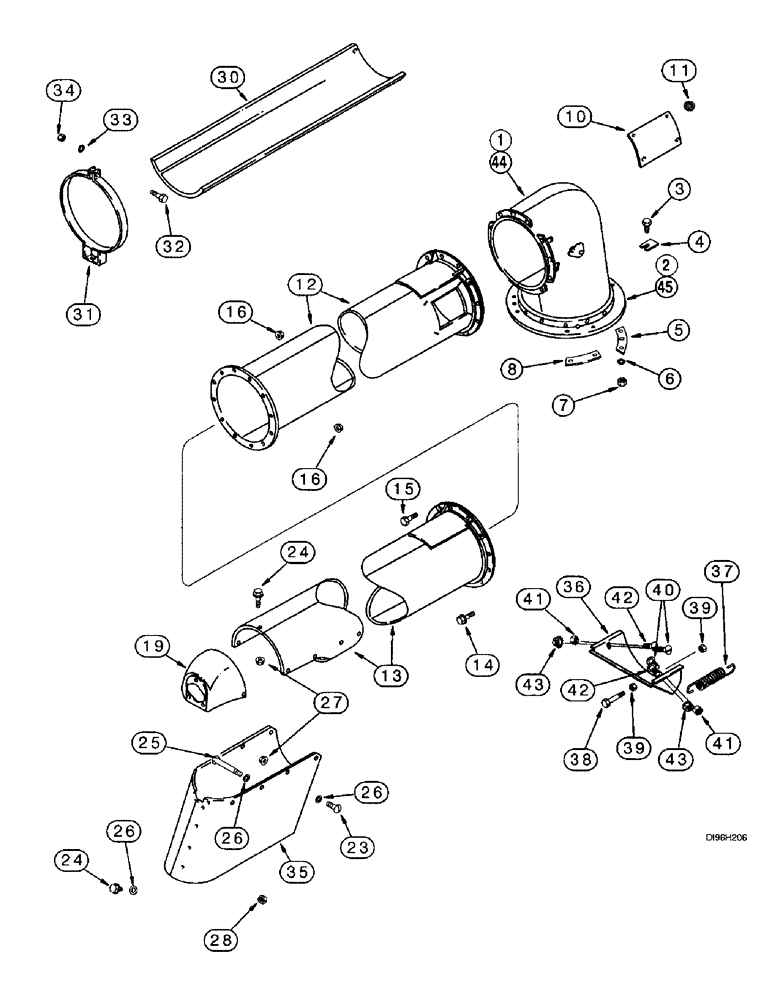

Схема запчастей Case IH 2144 - (9E-24) - UNLOADER, UPPER TUBE (17) - GRAIN TANK & UNLOADER
30
37
26
2
5
42
41
23
7
27
35
16
42
40
3
4
44
24
33
11
12
43
6
31
43
28
36
1
10
24
38
26
45
25
39
34
14
26
19
39
16
41
32
15
8
13

Артикул

Название

Примечание

Количество

1

193417C94

ELBOW

ASSEMBLY - unloader upper tube,no longer available, order elbow assembly 248308A1, item 44 below, Includes: Ref. 2, Serial Range: -JJC0173150

1шт.

2

193418C3

FLANGE

- unloader elbow

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

4

151670C1

SHIM

SHIM - .036 inch

1шт.

5

186657C2

SUPPORT

- front keeper

1шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

193472C2

PLATE

BAR - unloader tube keeper

1шт.

10

178158C1

PLATE

- inspection

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

12

1317738C1

TUBE,2285 mm Length

- unloader, plain, front, 89.96 in.

1шт.

12

1317873C1

UNLOADING TUBE,2285 mm Length

TUBE - unloader, perforated, front, 89.96 in.

1шт.

13

1317734C4

TUBE,1170 mm Length

- unloader, rear, 136 inch (3454 mm) long

1шт.

13

1317783C4

TUBE,2084 mm Length

- unloader, rear, 82.47 inch (4369 mm) long

1шт.

13

1317899C3

TUBE,2998 mm Length

- unloader, rear, 118.031 inch (5283 mm) long

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

18шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

- end, unloader tube

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4-6шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

4шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

16-18шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

11-13шт.

28

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

30

178165C2

COVER

- auger tube, perforated

1шт.

31

178166C1

CLAMP

- tube retaining

4шт.

32

185856C1

ADJUSTMENT SCREW

BOLT - hex, special, 5/16 NC x 2 inch

4шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT - down

1шт.

36

115867A1

DOOR

- grain saver

1шт.

37

1338869C1

SPRING

- door

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

BOLT - serrated slotted truss head, 1/4 NC x 1 inch (Replaces screw 1338692C1)

2шт.

41

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

44

248308A1

ELBOW

ASSEMBLY - unloader upper tube, Includes: Ref. 45 - 45B, Start Serial: JJC0173150

1шт.

45

237007A1

RING

FLANGE - unloader elbow

1шт.

45a

49-516

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown

20шт.

45b

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - hex, self tapping, 1/4-14 x 3/4 inch, not shown

3шт.
