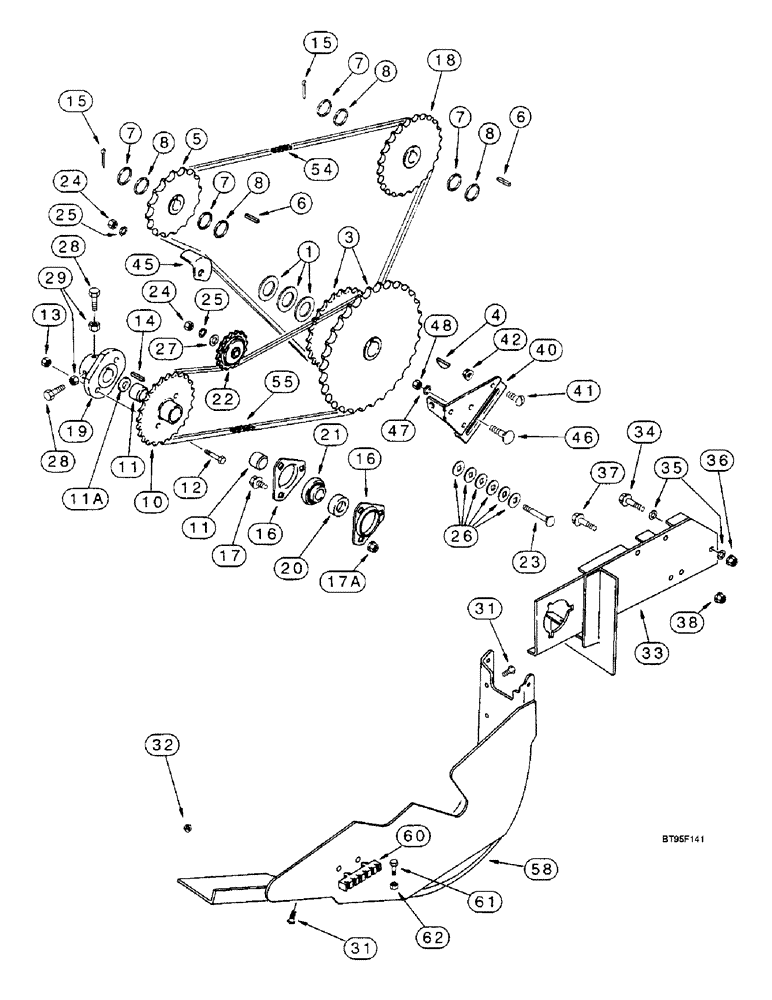

Запчасти Case IH 2144 (9E-16) - GRAIN TANK UNLOADER, CHAIN DRIVE (17) - GRAIN TANK & UNLOADER

1

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

3шт.

1

1327731C1

THRUST WASHER

WASHER - flat, special, 1-13/32 x 2-1/4 x 1/8 inch

1шт.

3

1347402C1

SPROCKET

- driven, 33 and 57 teeth

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

- driven, 43 teeth

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

8шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

10

1347360C1

SPROCKET

ASSEMBLY - drive, Includes: Ref. 11

1шт.

11

1347384C1

BEARING,31.77mm ID x 19.05mm L

BUSHING - sprocket

1шт.

11a

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

2шт.

12

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

BOLT - hex, 5/16 NC x 1-1/4 inch

2шт.

Ref. 12 - 242628A1 is the "shear bolt".

1шт.

13

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

14

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

16

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

2шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

17a

231-5146

FLANGE NUT,3/8"-16

3шт.

18

192925C1

SPROCKET

- driven, 37 teeth

1шт.

19

1347399C1

HUB

- unloader drive

1шт.

20

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - ball

1шт.

21

455104R11

COLLAR

- locking, bearing

1шт.

22

565442R91

SPROCKET

- tightener, 17 teeth

1шт.

23

434-832

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

- square hole, 17/32 x 1 x 1/16 inch

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

28

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

SCREW - set, square head, 5/16 NC x 1 inch, cup point

2шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

33

139706A3

SUPPORT

- jackshaft, outer

1шт.

34

121-511

HEX SOC SCREW,Shldr, 1/2" - 13 - 5/8" x 1 1/2"

BOLT - shoulder, hex socket, 1/2 NC x 3/4 inch, 1-1/2 inch shoulder

1шт.

35

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

40

175595A1

SUPPORT

PLATE - support

1шт.

41

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

45

936878R1

BLOCK

- tightener

1шт.

46

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

47

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

48

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

54

NSS

NOT SOLD SEPARAT

CHAIN - drive, use 149 links of 1790D bulk chain and (1) 1301D connecting link

1шт.

55

NSS

NOT SOLD SEPARAT

CHAIN - drive, use 127 links of 1791D bulk chain, (2) 1310D connecting links, (1) 1315D offset link and (1) 1309D roller link

1шт.

58

140181A3

SHIELD

- drive, unloader

1шт.

60

3102155R1

HOLDER

- shear bolt

1шт.

61

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

BOLT - hex, 5/16 NC x 1-1/4 inch

6шт.

62

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.
