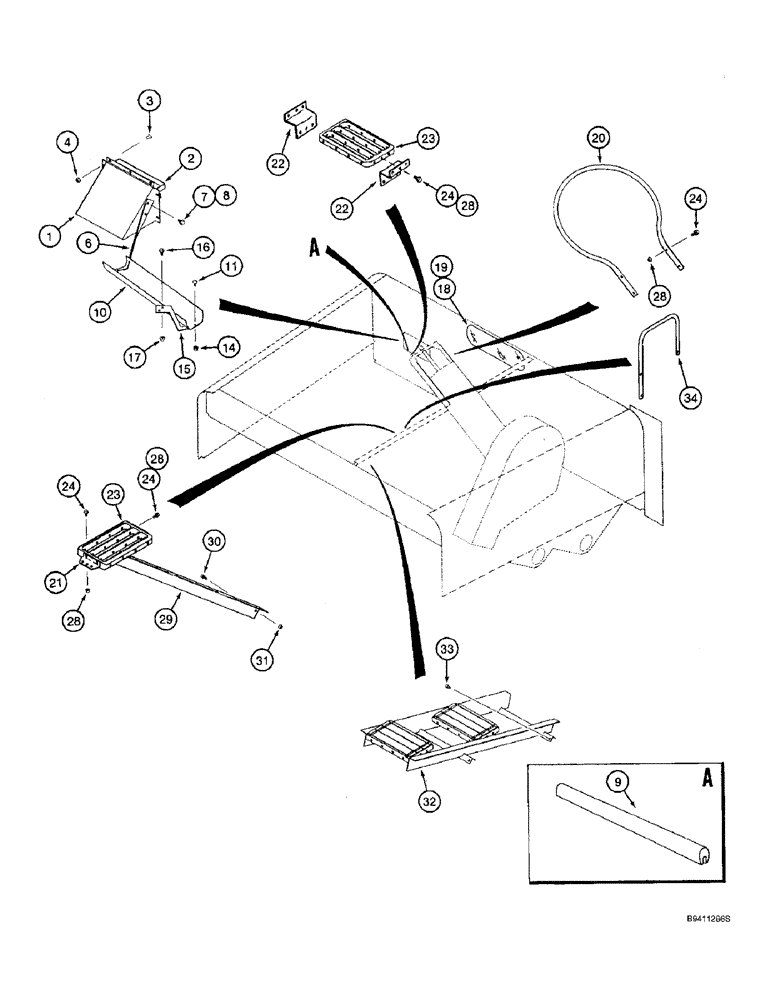

Запчасти Case IH 2144 (9E-10) - GRAIN TANK, STEPS AND SAMPLE TROUGH (17) - GRAIN TANK & UNLOADER

1

115730A1

SHEET

SHIELD - grain tank access hole

1шт.

2

185668A1

SUPPORT

STRAP - guard, access hole

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

7шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

6

124001A1

SUPPORT

BRACKET - support, grain sampling, lower

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

9

126046A1

GASKET,287.02mm L

TRIM - edge, black, 11-1/2 inch (292 mm) long, cut from 1330108CX bulk trim, sample hole bottom edge

1шт.

10

123977A2

BOTTOM

TROUGH - sampling, grain tank

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

124000A1

SUPPORT

BRACKET - support, grain sampling, upper, inclined delivery auger

1шт.

15a

134101A1

SUPPORT

BRACKET - support, grain sampling, upper, horizontal delivery auger, not shown

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

18

120550A1

GLASS

- window, grain tank

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - glass, grain tank window, 60 inch (1524 mm) long, cut from 198131C2 bulk moulding below

1шт.

20

129073A1

HANDLE

HANDRAIL - grain delivery, upper step, inclined delivery auger

1шт.

21

129077A3

SUPPORT

BRACKET - angle, front step

2шт.

22

141410A1

SUPPORT

- step, front valve stack bracket

2шт.

23

1531337C1

STEP

- service

2шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

16шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

29

129079A2

SUPPORT

BRACKET - angle, step support

1шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

32

129080A2

LADDER

STEP - double

1шт.

33

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - hex, self tapping, 1/4 NC x 3/4 inch

4шт.

34

185348A1

GRAB RAIL

HANDRAIL - grain delivery, upper step, horizontal delivery auger

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

198131C2

SEAL, GLASS

SEAL - bulk, 120 inch (3048 mm) long

1шт.
