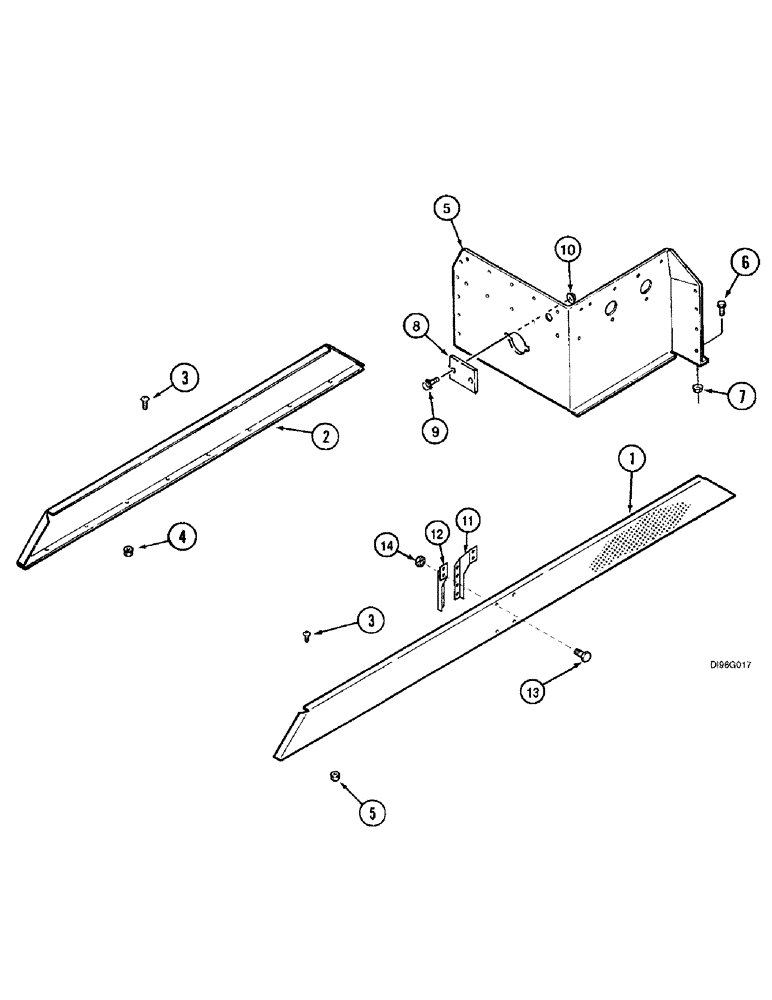

Запчасти Case IH 2144 (9E-06) - GRAIN TANK EXTENSIONS (17) - GRAIN TANK & UNLOADER

1

183157C3

SUPPORT

- front extension

1шт.

2

183276C2

SUPPORT

- rear extension

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

19шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

19шт.

5

1317644C2

SUPPORT

- center extension

1шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

8

1317645C2

PLATE

COVER - bearing hole

1шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

11

241682A1

SUPPORT

BRACKET - level sensor, left-hand

1шт.

12

241683A1

SUPPORT

BRACKET - level sensor, right-hand

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.
