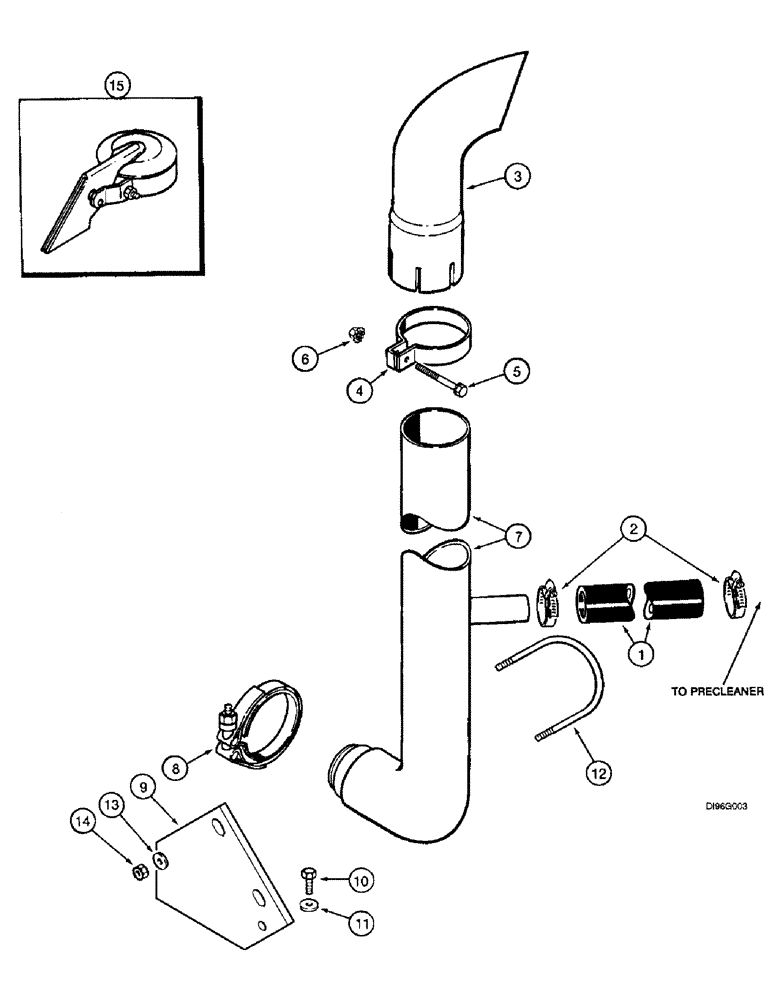

Запчасти Case IH 2144 (2-19A) - EXHAUST SYSTEM, 6TA-590 EMISSIONS CERTIFIED ENGINE, COMBINE S/N JJC0173150 AND AFTER (01) - ENGINE

1

120223A2

RADIATOR HOSE,31.75 mm ID x 737.00 mm, SAE 20R2

- Exhaust aspirator 31.75 mm ID x 737.00 mm, SAE 20R2

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

3

1977117C2

TUBE,114.3 mm OD

- exhaust aspirator, top

1шт.

4

650986C1

CLAMP,69.85mm - 82.55mm

- exhaust pipe

1шт.

5

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

143342A3

TUBE,114.17 mm OD, 698 mm Length

- exhaust aspirator (Replaces tube 143242A2) (Replaces 119093A1)

1шт.

8

A170467

CLAMP,72mm ID

- includes hardware, exhaust tube retaining

1шт.

9

84642C3

BRACKET

- tube support

1шт.

10

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

11

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

12

117410A2

U-BOLT

3/8"

1шт.

13

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

14

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

15

1541961C2

CAP

- exhaust pipe, if used

1шт.
