Запчасти Case IH 2144 (9D-19A) - INCLINED DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

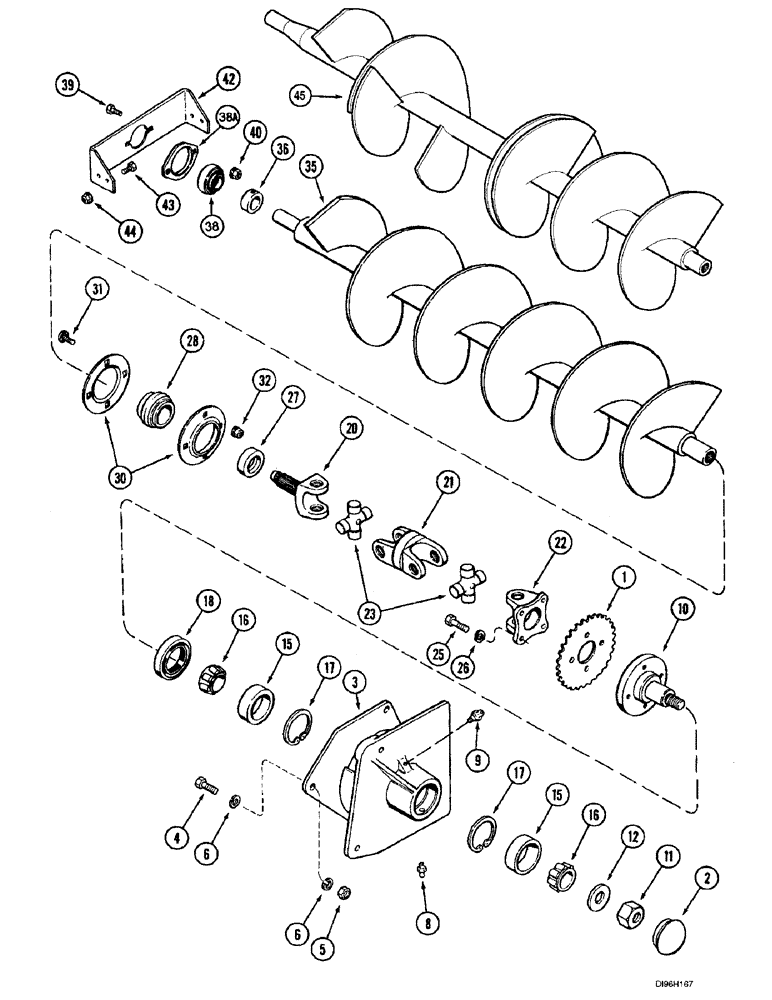

Схема запчастей Case IH 2144 - (9D-19A) - INCLINED DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS
27
32
31
15
17
21
16
15
23
40
11
12
36
18
2
28
20
9
22
43
5
38
16
35
8
6
3
45
25
38a
1
30
26
17
39
10
6
44
42
4

Артикул

Название

Примечание

Количество

1

1321039C1

SPROCKET

- driven, 29 teeth

1шт.

2

453771R1

PLUG

CAP - drive housing

1шт.

3

1321020C1

HOUSING

- drive

1шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

10

1321021C1

SHAFT

- auger drive

1шт.

11

185413C1

LOCK NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

12

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

- flat, 29/32 x 2-3/64 x 1 1/64 inch

1шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller

2шт.

16

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - tapered roller bearing, 1-3/8 inch ID

2шт.

17

100-21256

SNAP RING,2.562", Int, #256

Ring, Snap, 2.562", Int, #256

2шт.

18

380200R92

OIL SEAL

- oil

1шт.

1321055C91

UNIVERSAL JOINT

JOINT ASSEMBLY - universal, Includes: Ref. 20 - 23

1шт.

20

1321056C1

YOKE

- shaft

1шт.

21

1321057C1

JOINT

YOKE - center

1шт.

22

1321058C1

YOKE

YOKE - flange

1шт.

23

1321059C91

U-JOINT SPIDER

KIT - journal and bearing

2шт.

25

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex, 7/16 NC x 1-1/2 inch, grade 8

4шт.

26

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

27

517645R11

COLLAR

- locking with set screw

1шт.

28

611583R91

BALL BEARING

BEARING - ball, auger

1шт.

30

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing

2шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

35

1968853C2

AUGER

- delivery, chrome

1шт.

36

455102R21

COLLAR

- locking, bearing, includes set screw

1шт.

38

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball, auger

1шт.

38a

50591

FLANGE,52mm

- bearing

2шт.

39

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

42

1994833C1

BAR

- support

1шт.

43

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

45

222801A3

AUGER

- chrome, inclined delivery, used on models with AFS(R)

1шт.

Выбрано товаров: 37
