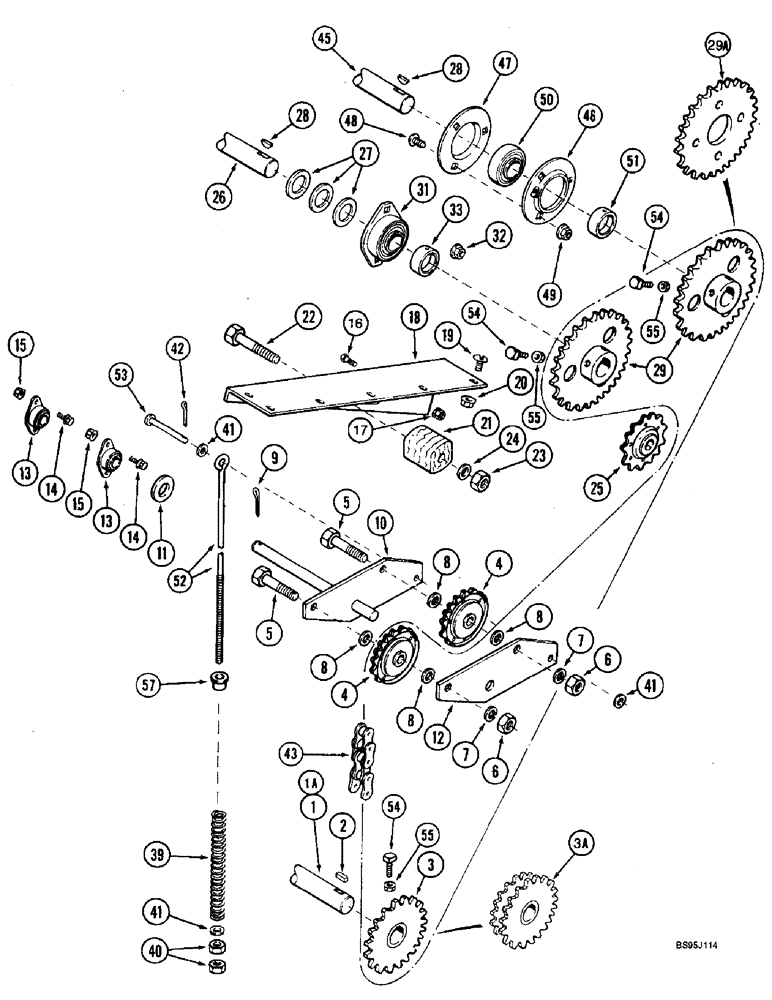

Запчасти Case IH 2144 (9D-14) - GRAIN ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

1321347C1

SHAFT

- elevator drive to JJC0172845

1шт.

1a

195185A1

SHAFT

- elevator drive, Start Serial: JJC0172845

1шт.

2

581306R1

KEY,5/16" Sq x 1 1/4", Par

2шт.

3

192139C2

SPROCKET

- drive, 25 teeth, if used

2шт.

3a

182945A1

SPROCKET

- drive, 2 speed, 25 teeth and 30 teeth, if used

1шт.

4

631905R91

SPROCKET

- idler drive, 17 teeth

2шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

4шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

10

1345064C1

SUPPORT

- idler sprocket

1шт.

11

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

12

1345066C1

PLATE

- tightener support

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING - pivot

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

18

1317476C3

ANGLE BAR

STIFFENER - block

1шт.

19

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

21

582018R1

BLOCK

- tightener

2шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

24

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

2шт.

25

1319759C1

DRIVE SPROCKET

SPROCKET - idler

1шт.

26

1317429C1

SHAFT

- headshaft sprocket

1шт.

27

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

28

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

29

1317412C1

SPROCKET

- headshaft, 32 teeth, one used on inclined elevator

1-2шт.

29a

1321039C1

SPROCKET

- driven, 29 teeth, used on inclined elevator, see Figure 9D-19A for inclined delivery auger

1шт.

31

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft

1шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

557995R11

COLLAR

- bearing, with set screw

2шт.

39

523677R1

SPRING

- tightener

1шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

4шт.

42

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

43

NSS

NOT SOLD SEPARAT

CHAIN - drive, 165 inch long, use 259 links of 1791D bulk chain, (3) 241-1315 connecting links and (2) 241-1115 roller links

1шт.

43

1321307C91

CHAIN (AG)

CHAIN - drive, 153-3/4 inch long, use 241 links of 1791D chain, (3) 241-1315 connector links and (2) 241-1115 roller links, use with inclined delivery auger elevator

1шт.

45

1318912C3

AUGER

- delivery, horizontal, see figure 9D-2, use with horizontal delivery auger elevator

1шт.

46

670375R11

FLANGE

- bearing, use with horizontal delivery auger elevator

1шт.

47

939461R1

FLANGE

- bearing, use with horizontal delivery auger elevator

1шт.

48

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch, use with horizontal delivery auger elevator

3шт.

49

231-5146

FLANGE NUT,3/8"-16

Use with horizontal delivery auger elevator Flg, USR, 3/8"-16

3шт.

50

156011C92

BALL BEARING

BEARING - ball, auger, use with horizontal delivery auger elevator

1шт.

51

557995R11

COLLAR

- bearing, with set screw, use with horizontal delivery auger elevator

1шт.

52

1345005C1

BOLT,3/8" - 16 x 815mm

ROD - chain tightener

1шт.

53

427-6240

CLEVIS PIN,9.53mm OD x 61.11mm L

PIN - clevis, 3/8 x 2-13/32 inch, hardened

1шт.

54

385-13820

SET SCREW,3/8" - 16 x 1-1/4"

SCREW - set, square head, 3/8 NC x 1-1/4 inch, cup point

2-4шт.

55

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2-4шт.

57

S113843

BUSHING,9.65mm ID x 15.75mm OD x 15.75mm L

- eyebolt chain tightener rod

1шт.
