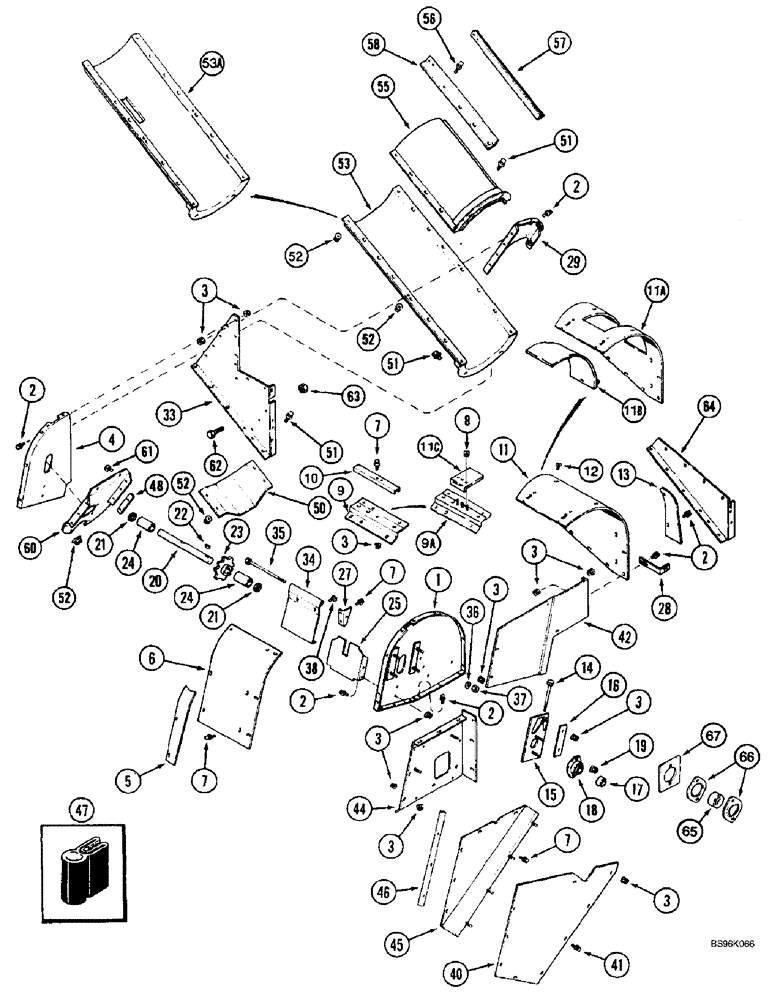

Запчасти Case IH 2144 (9D-13A) - GRAIN ELEVATOR HEAD, INCLINED (16) - GRAIN ELEVATORS & AUGERS

1

1319908C1

SIDE PLATE

SIDE - elevator head, right-hand

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

1319901C1

SIDE PLATE

SIDE - elevator head, left-hand

1шт.

5

1321232C1

PLATE

- sealing, rear

1шт.

6

1319942C1

COVER

- rear, elevator head

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

8

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

3шт.

9

1319959C1

SUPPORT

ANCHOR - chain tightener, conveyer to JJC0172845

1шт.

9a

198581A2

STIFFENER

ANCHOR - chain tightener, conveyer, Start Serial: JJC0172845

1шт.

10

1317474C1

CHANNEL

- lock, tightener, with two bolt holes, no longer available, order 1317474C2

1шт.

10a

1317474C2

CHANNEL

- lock, tightener, with four bolt holes, not shown

1шт.

11

1319943C1

PLATE

COVER - head, front, Serial Range: -JJC0172845

1шт.

11a

198603A2

COVER

- head, front, on models without yield monitor or AFS(R), Start Serial: JJC0172845

1шт.

11a

238647A1

COVER

- head, front, on models with yield monitor or AFS(R), Start Serial: JJC0172845

1шт.

11b

229609A2

COWL

HOOD - elevator head, front, not used on models with yield monitor or AFS(R), Start Serial: .JJC0172845

1шт.

11c

197877A1

SUPPORT

BRACE - hole cover, front elevator head, Start Serial: JJC0172845

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

13

1321231C1

PLATE

- sealing, front

1шт.

14

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- hex, special, 1/2 NC x 5-1/2 inch

2шт.

15

1317251C2

SUPPORT

- headshaft

2шт.

16

1310040C1

BAR

- guide, headshaft

4шт.

17

557995R11

COLLAR

- bearing, with set screw

2шт.

18

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - headshaft, if used, optional, see items 65, 66, and 67 on Figure 9D-13A

2шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1317429C1

SHAFT

- headshaft sprocket

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

6шт.

22

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

2шт.

23

1317192C1

SPROCKET

- drive, headshaft

1шт.

24

1317193C2

SPACER

- sprocket

2шт.

25

1317222C1

PLATE

- deflector

1шт.

27

1321553C1

BRACKET

ANGLE - support

1шт.

28

1321832C1

BRACKET

BRACE - front cover

1шт.

29

189456A1

PLATE

- side, left-hand front, includes decal

1шт.

33

1321551C2

SUPPORT

PANEL - rear support

1шт.

34

1319952C1

PLATE

SECTION - cut off

1шт.

35

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch, grade 2

1шт.

36

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

38

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

40

1321154C1

PANEL

- side, right-hand

1шт.

41

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

42

1321097C2

COVER

- auger

1шт.

44

1321060C1

SUPPORT

- mounting

1шт.

45

1321496C1

SUPPORT

- side panel, left-hand

1шт.

46

1321155C1

SPACER

BAR - spacer

1шт.

47

1321262C1

SEAL

- flanged, head

2шт.

48

1321554C1

PLATE

BAR - filler

1шт.

50

1321556C1

COVER

- U-joint, auger

1шт.

51

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

53

1321557C2

TUBE,887 mm Length

TROUGH - tube, lower to JJC0172845

1шт.

53a

199006A2

TUBE,887 mm Length

TROUGH - tube, lower, Start Serial: JJC0172845

1шт.

55

1321560C2

TROUGH

- tube, upper

1шт.

56

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

7шт.

57

1321568C3

ANGLE

BRACKET - support, front

1шт.

58

1321569C3

ANGLE

BRACKET - support, rear

1шт.

60

1979134C1

SUPPORT

PLATE - support, auger bearing

1шт.

61

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

62

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

63

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

64

1321552C2

SUPPORT

PLATE - side, front

1шт.

65

156011C92

BALL BEARING

BEARING - ball, if used, optional, see item 18 on figure 9D-13A

2шт.

66

581469R1

FLANGE,Bearing

- bearing retainer, used with item 65 and 67, if used

4шт.

67

1979642C1

SPACER

- bearing flange, used with item 65 and 66, if used

2шт.
