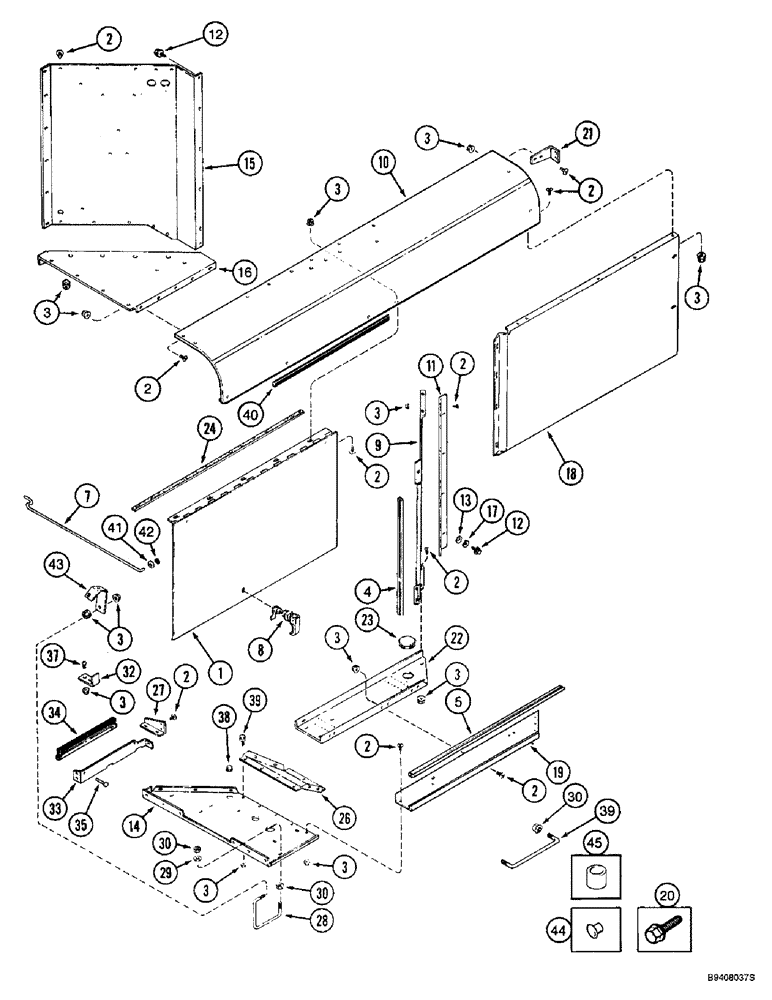

Запчасти Case IH 2144 (2-12) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

1

1979861C2

TRAP DOOR

DOOR - radiator access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

57шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

83шт.

4

1347460C1

DOOR SEAL,648mm L

- radiator access door, side, 25-1/8 inch (648 mm) long

2шт.

5

1347459C2

DOOR SEAL

- radiator access door, lower, 37 inch (935 mm) long, cut from bulk seal 1977215CX

1шт.

7

1979919C1

STEM

ROD - door

1шт.

8

1302494C2

LATCH

- access door

1шт.

9

1979856C2

DEFLECTOR

- screen chute

1шт.

10

1977122C7

CHUTE (DOWNWARD)

CHUTE - air screen, upper

1шт.

11

1970200C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

20шт.

13

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

11шт.

14

1541788C3

SUPPORT

- lower, rear

1шт.

15

1979227C1

SHEET

SUPPORT - screen chute, rear

1шт.

16

1541858C2

SUPPORT

- screen, upper

1шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

18

1979854C1

SHEET ASSY.

PANEL - radiator inlet

1шт.

19

1979853C2

CHUTE (DOWNWARD)

CHUTE - bottom rear outlet

1шт.

20

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

13шт.

21

1317704C1

SUPPORT

- top chute mounting

1шт.

22

1979471C4

SUPPORT

- radiator clean out

1шт.

23

1302758C1

PLUG

- plastic, 89 mm OD

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - door hinge, 37-1/2 inch (953 mm) long, cut from 1338148CX bulk seal below

1шт.

26

1315674C2

SUPPORT

- chute, lower rear

1шт.

27

1968548C1

SUPPORT

BRACKET - chute, discharge side

1шт.

28

1979918C1

HANDLE

- assist

1шт.

29

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

1шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

32

1347430C1

SUPPORT

BRACKET - latch retainer

1шт.

33

1968546C2

SUPPORT

- discharge chute

1шт.

34

1338012C1

BRUSH, COMMUTATOR

BRUSH - block off

1шт.

35

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 1/8 x 1/2 inch

2шт.

37

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

38

1970461C1

GROMMET

- rubber, 1-3/8 x 2 x 5/16

5шт.

39

182995A1

BAR

HANDLE - assist

1шт.

40

128719A1

SEAL

SEAL - radiator top and bottom, 31-7/8 inch (810 mm) long, cut from F43996 bulk seal below

2шт.

41

95-21044

WASHER,3/8"

- flat, 7/16 x 1 x 5/64 inch

3шт.

42

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

1шт.

43

1347199C2

GUIDE

- radiator door

1шт.

44

205-77

HOLE PLUG BUTTON,11/32"

PLUG - button, 11/32 inch ID

2шт.

45

D81147

SPACER

- 1/2 x 3/4 x 1-1/4 inch, door

1шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

SEAL - bulk, adhesive-backed, 3/4 (19) x 1 (25) x 36-3/4 inch (932 mm) long

1шт.
