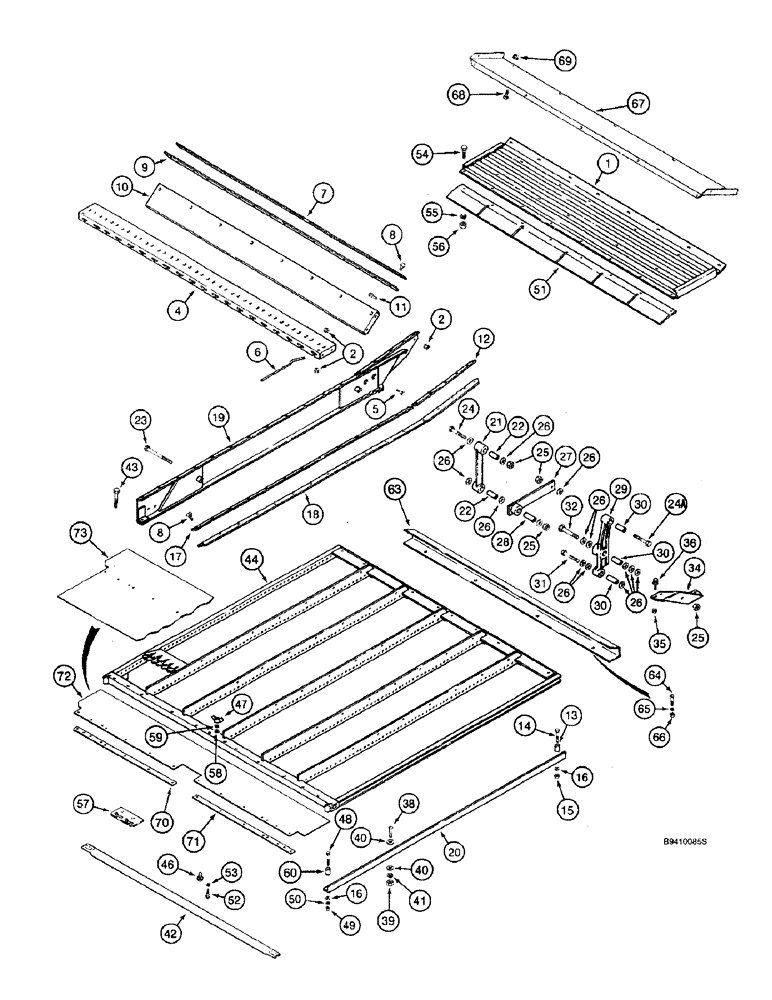

Запчасти Case IH 2144 (9B-40) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

1

192056C1

GRAIN PAN

PAN - grain

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

4

1312156C1

SUPPORT

- chaffer pan

1шт.

5

360-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex flange, 5/16 NC x 3/4 inch, grade 8

4шт.

6

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed, short

20шт.

6

1312476C1

FINGER,Formed, 1 Prong, 495.5mm L

- auger bed, long

20шт.

7

192048C2

BAR

SEAL - chaffer frame

1шт.

8

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

1шт.

9

192047C1

SEAL,63.5mm W x 1143mm L

STRIP - chaffer frame, front

1шт.

10

192044C1

SUPPORT

- chaffer frame

1шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

12

192052C3

BAR

- chaffer frame seal, short

2шт.

13

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

14

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

15

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

4шт.

17

1325332C2

BAR

- chaffer frame seal, long

2шт.

18

1325331C1

SEALING STRIP

STRIP - chaffer frame

2шт.

19

1979206C1

RAIL

- chaffer, left-hand

1шт.

19

1979207C1

RAIL

- chaffer, right-hand

1шт.

20

1325334C3

SUPPORT

ANGLE - chaffer support, right-hand

1шт.

20

1325333C3

SUPPORT

ANGLE - chaffer support, left-hand

1шт.

21

1957455C1

ARM

ASSEMBLY - rear hanger, Includes: Ref. 22

2шт.

22

1330324C1

BUSHING

- rear hanger arm

2шт.

23

426-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

- hex, 5/8 NC x 7 inch, grade 8

2шт.

24

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, grade 8

2шт.

24a

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

25

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

10шт.

25

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

3шт.

26

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

26шт.

26

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

4шт.

27

1330357C1

ARM

ASSEMBLY - shoe, rear, Includes: Ref. 28

2шт.

28

1330324C1

BUSHING

- rear shoe arm

1шт.

29

1957460C2

LEVER

ASSEMBLY - shoe, Includes: Ref. 29

2шт.

30

1330323C2

BUSHING

- 5/8 x 1-1/2 x 2-57/64 inch

3шт.

31

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

2шт.

32

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

BOLT - carriage, 5/8 NC x 5 inch

2шт.

34

1968827C1

SUPPORT

- shoe lever, left-hand

1шт.

34

1968828C1

SUPPORT

- shoe lever, right-hand

1шт.

35

231-5146

FLANGE NUT,3/8"-16

8шт.

36

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

38

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

40

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

42

1325336C2

BAR

PIPE - chaffer support

1шт.

44

138634A1

GRAIN SIEVE

SIEVE - close slat chaffer, 1-5/8 inch extended (Replaces sieve 1957314C6)

1шт.

44

138633A1

GRAIN SIEVE

SIEVE - adjustable chaffer, 1-1/8 inch extended (Replaces sieve 1957316C5)

1шт.

44

138635A1

GRAIN SIEVE

SIEVE - corn slat chaffer, 1-5/8 inch extended (Replaces sieve 1957315C6)

1шт.

44

138636A1

GRAIN SIEVE

SIEVE - Petersen extended chaffer (Replaces sieve 1970516C6)

1шт.

46

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - carriage, 1/4 NC x 1/2 inch, grade 2

2шт.

47

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

48

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

49

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

4шт.

50

492-11038

LOCK WASHER,3/8"

2шт.

51

1319258C1

COVER

- chaffer finger

1шт.

52

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

53

231-5146

FLANGE NUT,3/8"-16

2шт.

54

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

8шт.

55

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

56

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

57

120667A1

PLATE

- chaffer lever, lower

1шт.

58

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

59

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

60

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

2шт.

63

119997A1

DEFLECTOR

- sieve

1шт.

64

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

4шт.

65

495-81107

WASHER,.281" x 7/8" x .060"

- flat, 9/32 x 7/8 x 3/64 inch

4шт.

66

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

67

185042C1

SUPPORT

- chaffer

1шт.

68

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

12шт.

69

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

70

1338343C2

RETAINER

- chaffer seal, left-hand

1шт.

71

1338344C2

RETAINER

- chaffer seal, right-hand

1шт.

72

1346999C1

RUBBER SEAL,3.05mm Thk

- chaffer, models with straw spreader

1шт.

73

124558A2

SEAL,686mm W x 1183.6mm L

- chaffer, models with straw spreader and chaffer

1шт.

1957314C7

GRAIN SIEVE

SIEVE grain, 3 handle

1шт.
